Single Fiber OLP
OLP-BD
1
OLP-BIDI only needs two fibers to realize the optical line protection function. When the main circuit fiber fails, the receiving end automatically switches to the standby fiber receiving, ensuring communication without blocking operation, improving communication system stability and reliability. It also saves fiber resources.
Quantity

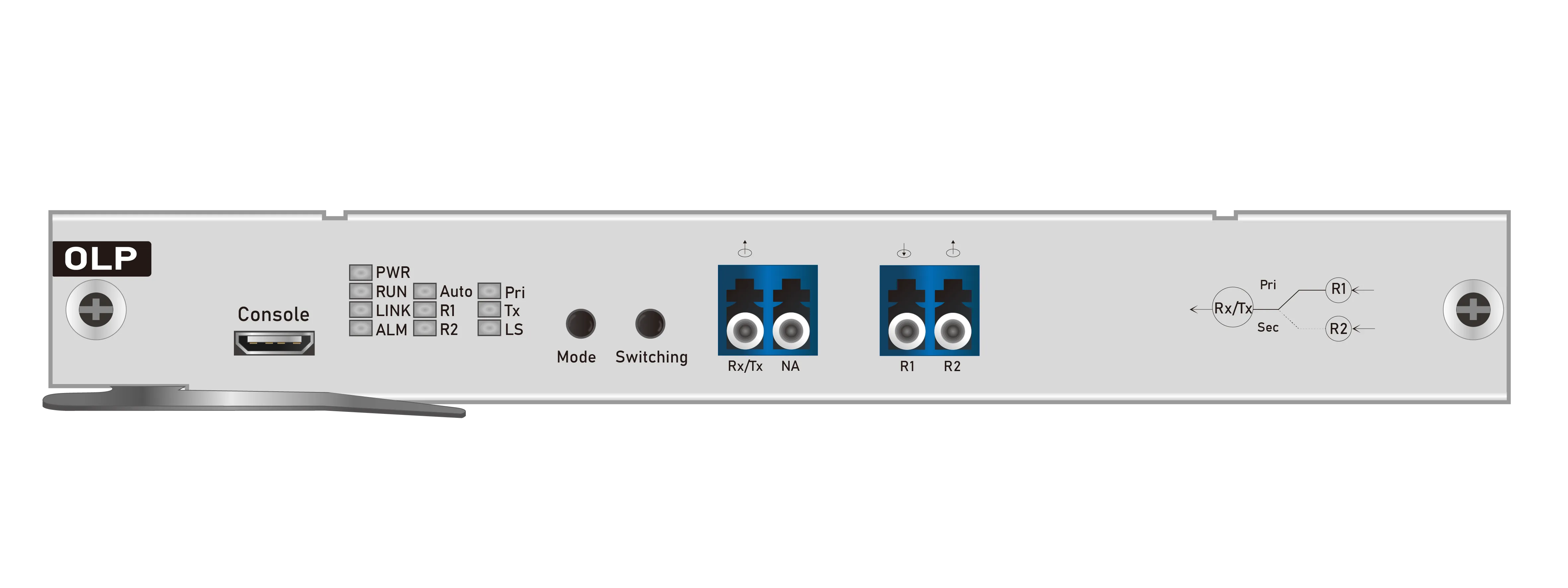

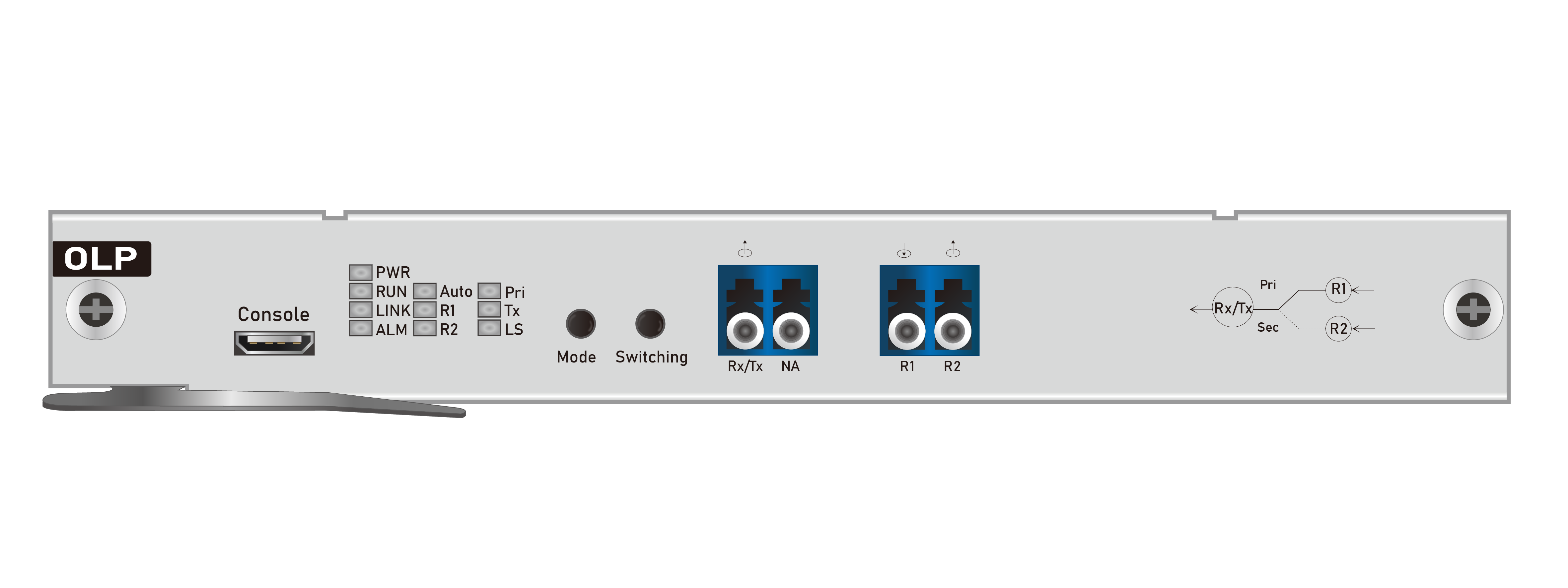

Single fiber OLP Optical Line Protection
Traditional OLP protection requires four valuable core resources. However, in many places, due to insufficient fiber resources, it is impossible to provide excess fiber resources and optical line redundancy protection.

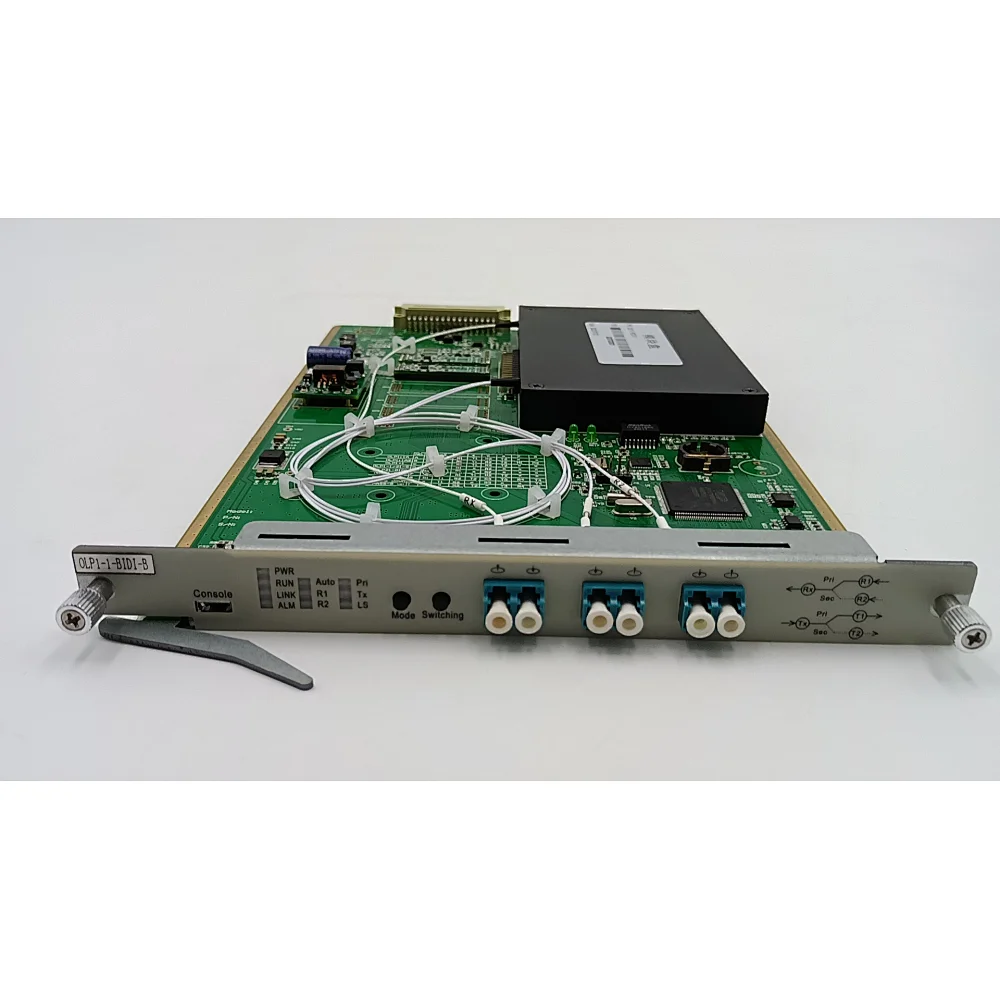

In view of the shortage of optical fiber resources and need to optical line redundancy protection, our company has developed BIDI OLP equipment to solve the problem of optical line protection in the case of insufficient optical cable resources.
OLP-BIDI only needs two fibers to realize the optical line protection function. When the main circuit fiber fails, the receiving end automatically switches to the standby fiber receiving, ensuring communication without blocking operation, improving communication system stability and reliability. It also saves fiber resources.

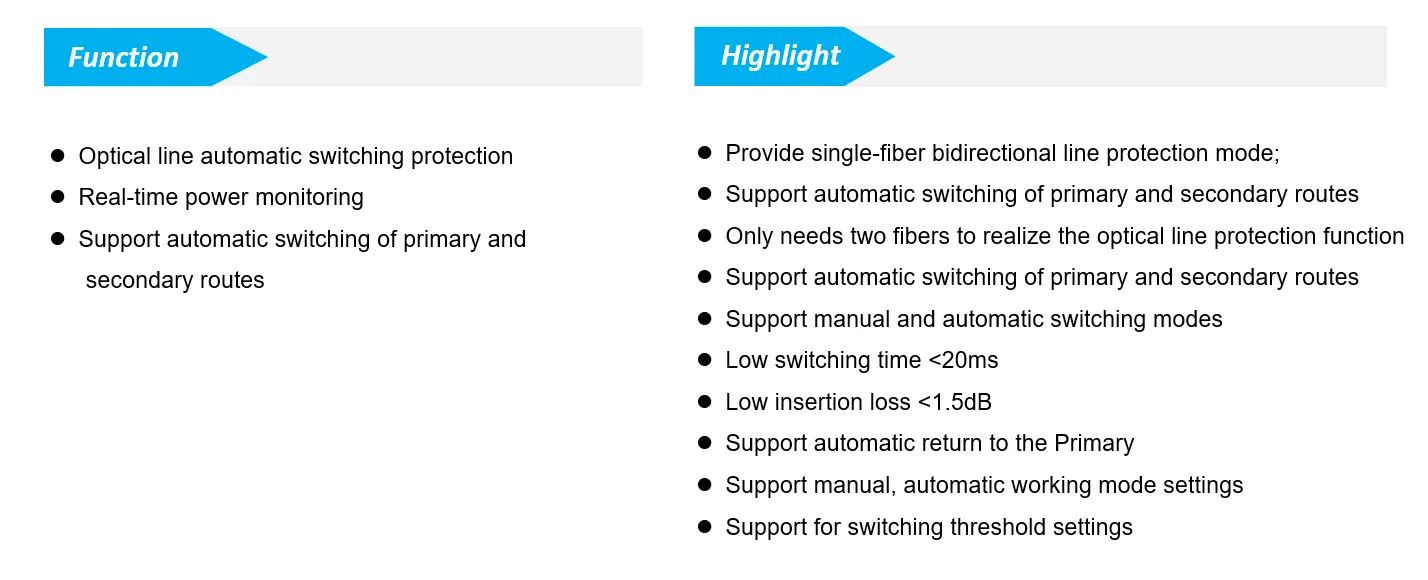

Optical line protection switch provides both Manual and Automatic switching mode. In Manual mode, the system switches optical path only based on the commands from user. In the Automatic mode, the system switches based on the power level detected and the preset threshold. Under automatic mode, the system can be set to be revertive or Non-revertive modes. Under Revertive mode, the system switches back to the working path automatically after the fault condition is cleared. Under Non-revertive mode, the system does not switch back.The OLP models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
Traditional OLP protection requires four valuable core resources. However, in many places, due to insufficient fiber resources, it is impossible to provide excess fiber resources and optical line redundancy protection.

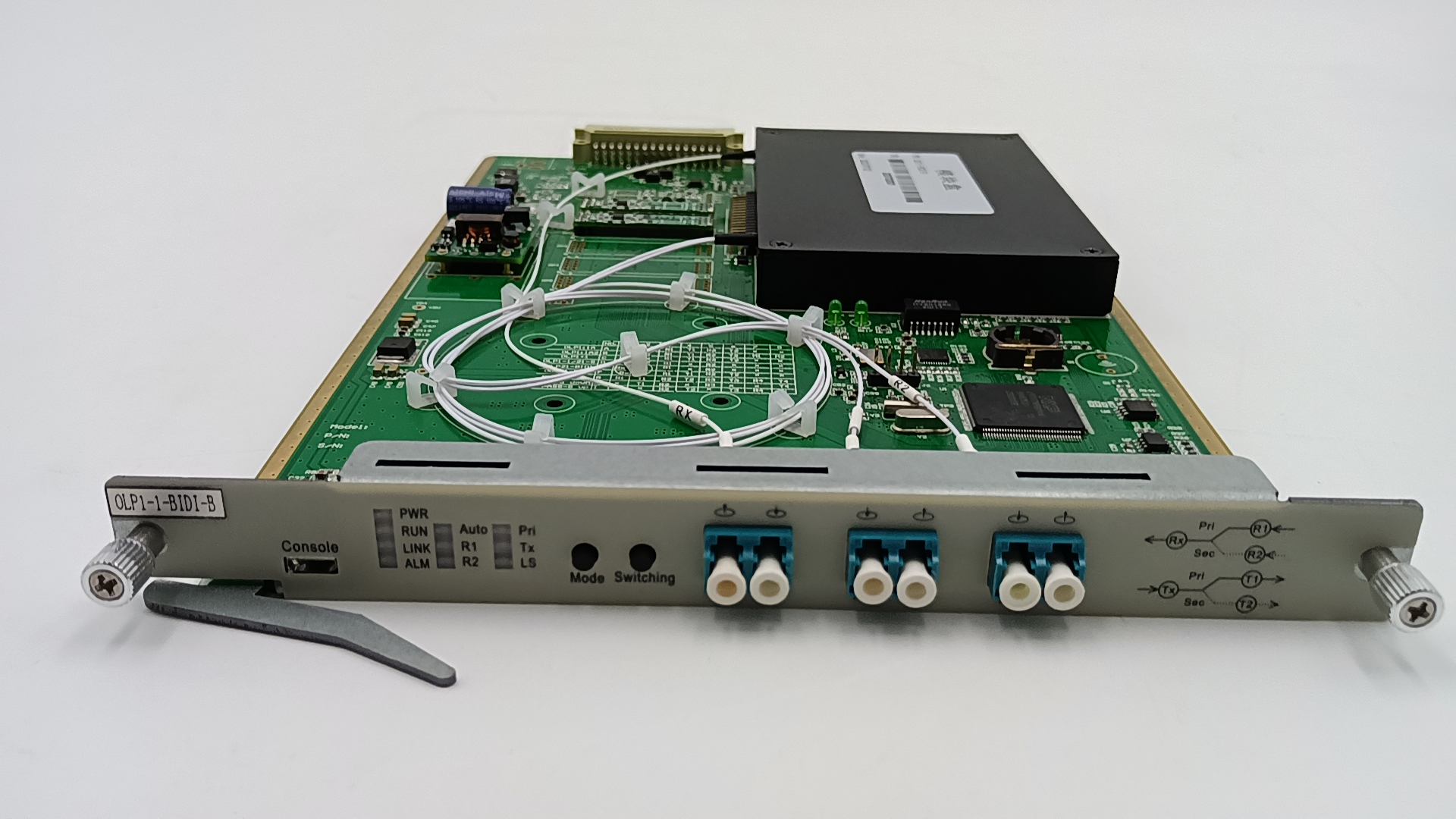

In view of the shortage of optical fiber resources and need to optical line redundancy protection, our company has developed BIDI OLP equipment to solve the problem of optical line protection in the case of insufficient optical cable resources.

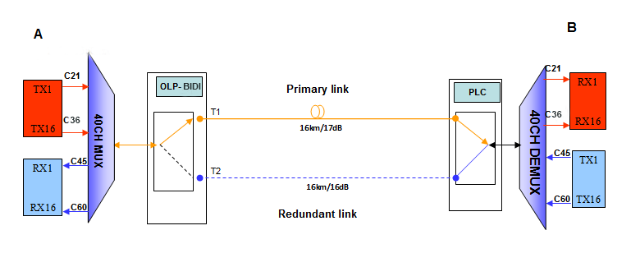

OLP-BIDI only needs two fibers to realize the optical line protection function. When the main circuit fiber fails, the receiving end automatically switches to the standby fiber receiving, ensuring communication without blocking operation, improving communication system stability and reliability. It also saves fiber resources.

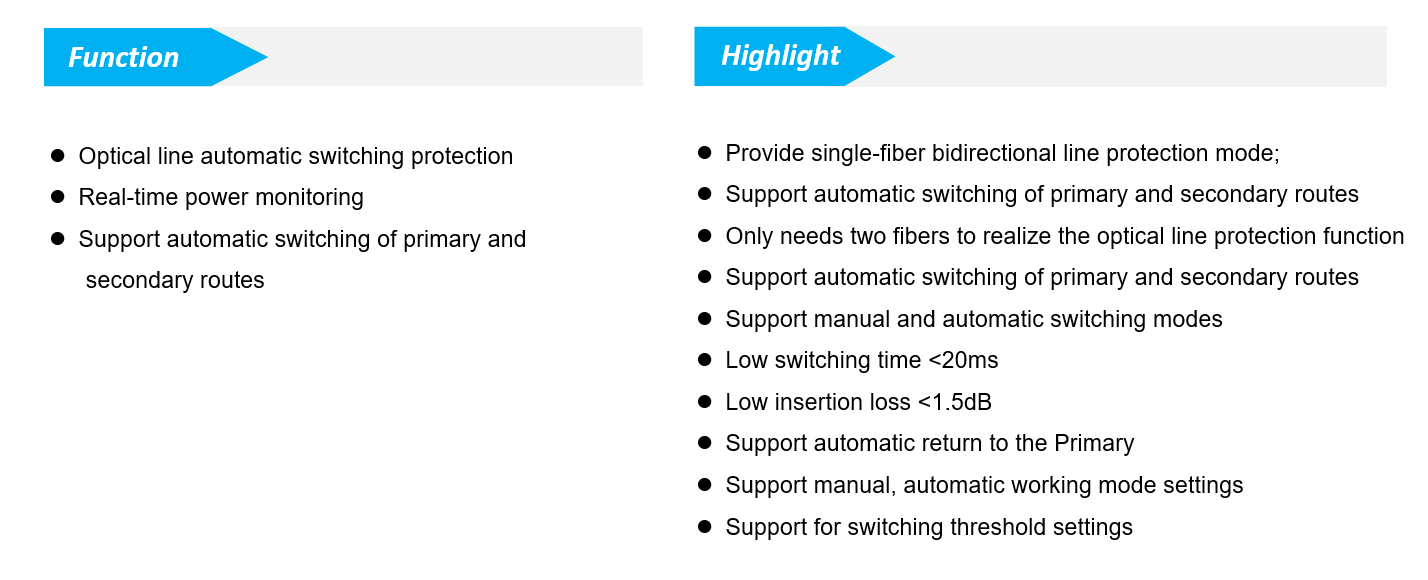

Optical line protection switch provides both Manual and Automatic switching mode. In Manual mode, the system switches optical path only based on the commands from user. In the Automatic mode, the system switches based on the power level detected and the preset threshold. Under automatic mode, the system can be set to be revertive or Non-revertive modes. Under Revertive mode, the system switches back to the working path automatically after the fault condition is cleared. Under Non-revertive mode, the system does not switch back.The OLP models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
| Parameter | OLP-BD | Unit | |
| OperatingWavelength | DWDM | Blue:1528~1541, Red : 1547~1561 | nm |
| CWDM | 1270~1610 | ||
| OpticalPowerRange | ＋23～-50 | dBm | |
| Accuracy of OpticalPower | ±0.25 | dB | |
| DetectionLightPowerResolution | ±0.01 | dB | |
| Return Loss | ≥55 | dB | |
| Polarization Dependent Loss | ≤0.05 | dB | |
| WavelengthDependentLoss | ≤0.1 | dB | |
| Insertion Loss | <1.5 | dB | |
| SwitchSpeed | <20 | ms | |
| Size | OLP Module | 191(W ) x253(D ) x 20(H) | mm |
| Environment | OperatingTemperature | -10℃～+60℃ | ℃ |
| Storage Temperature | -40℃～+85℃ | ℃ | |
| RelativeHumidity | 5% ~ 95% Non-condensing 5%~95% Non-condensing | ||
| Power Consumption | ≤5 | W | |
Ordering Information
| Model | Function | SwitchingTime | Insertion Loss |
| OLP-BD | Single-fiber bidirectional line protection mode; Splitter are sent at the same time, OLP-BDselect R1 or R2 to receive. | ≤20ms | Splitter≤4dB OLP-BD≤1.5dB |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04Chassis:482.5(W)x350(D) x44.5(H)mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08Chassis:482.5(W)x350(D) x89(H)mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20Chassis:482.5(W)x350(D) x222.5(H)mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supplysupport AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400GMuxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
