SOA series optical amplifier products can be 1290nm ~1320nm wavelength range to achieve amplification. It can be easily used in 100G transmission system, the maximum can support 160G/s rate. SOA optical amplifier can be used for booster amplification, pre-amplification and other occasions.
Quantity
SOA Optical Amplifier
SOA series optical amplifier products can be 1290nm ~1320nm wavelength range to achieve amplification. It can be easily used in 100G transmission system, the maximum can support 160G/s rate. SOA optical amplifier can be used for booster amplification, pre-amplification and other occasions.

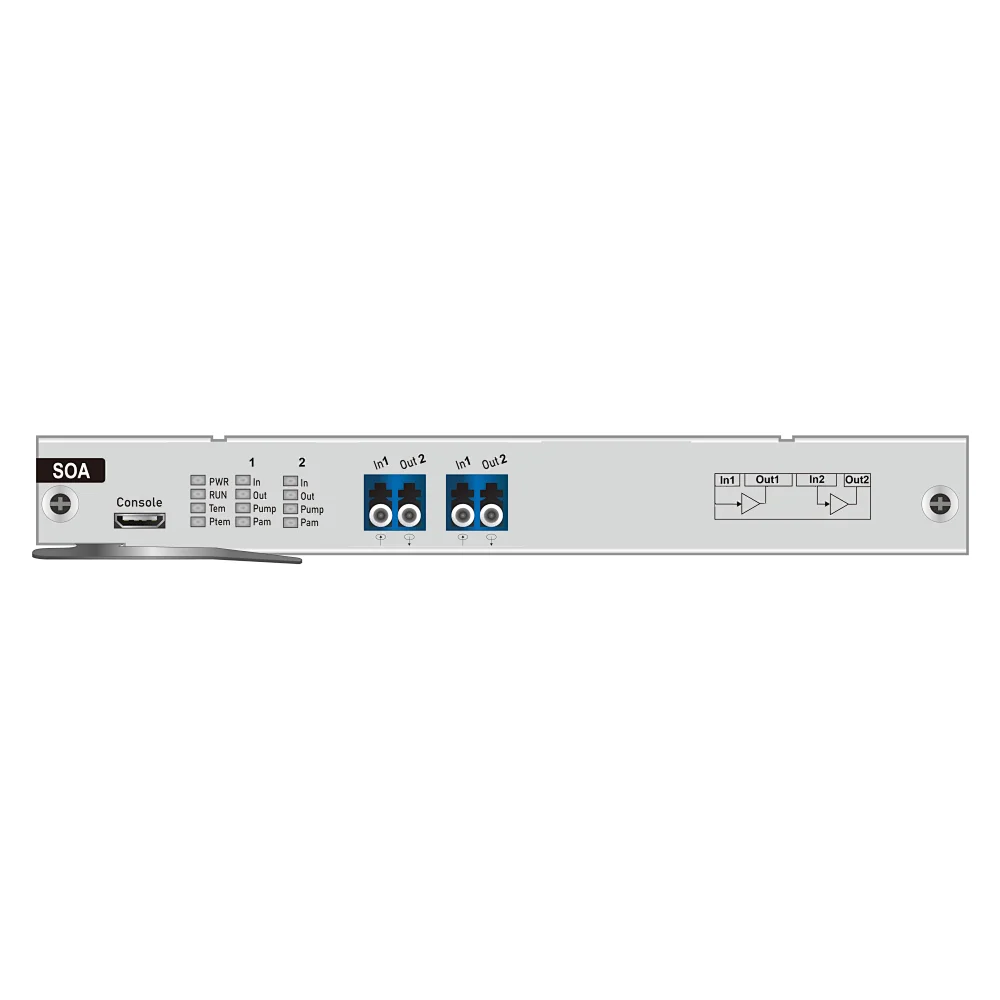

SOA2C:
SOA1C:
Performance Parameter
100G SOA
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
SOA series optical amplifier products can be 1290nm ~1320nm wavelength range to achieve amplification. It can be easily used in 100G transmission system, the maximum can support 160G/s rate. SOA optical amplifier can be used for booster amplification, pre-amplification and other occasions.

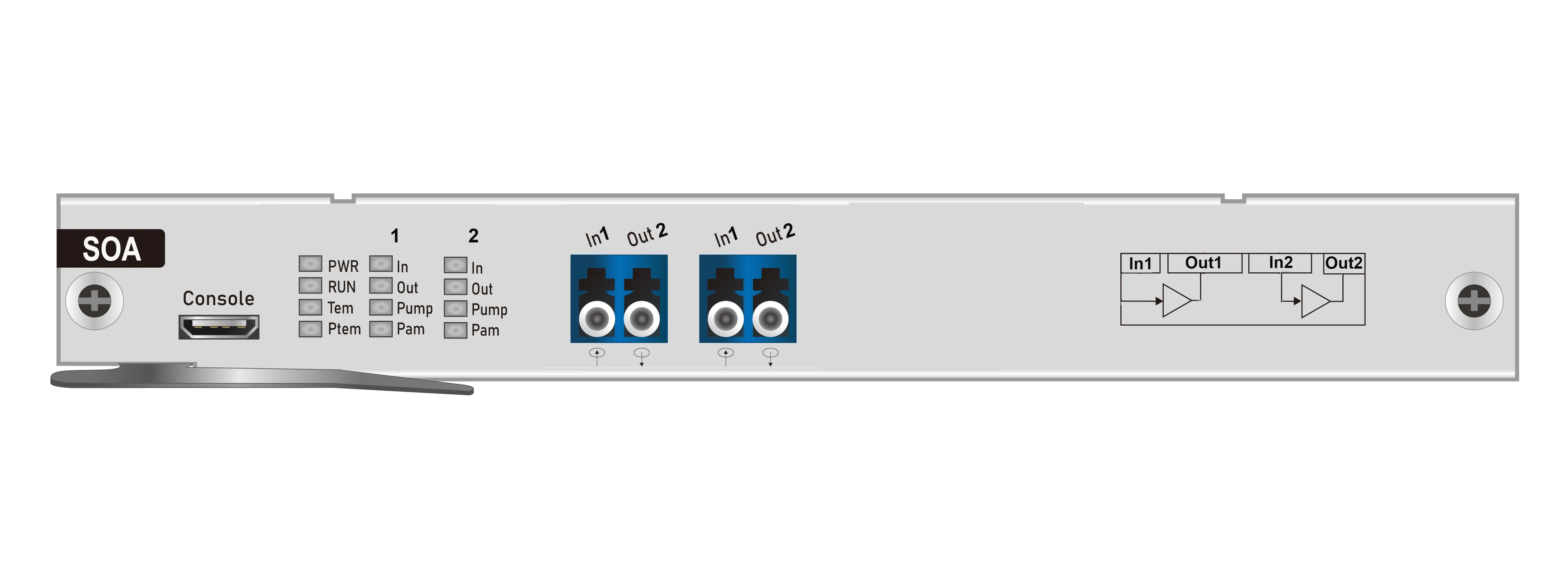

SOA2C:
|
|
|
|
|
|
| |
| |
|

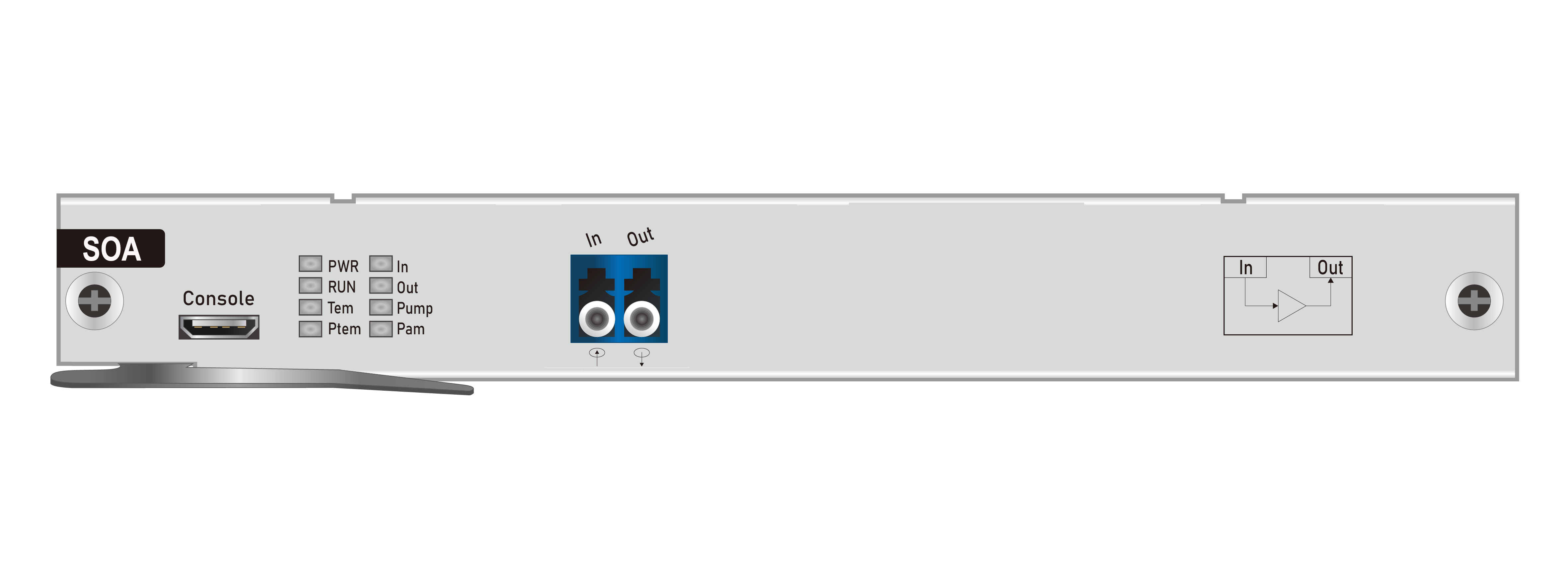

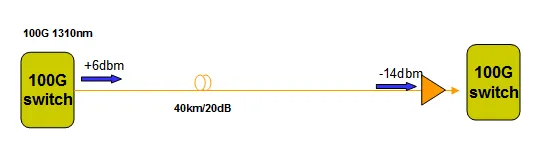

SOA1C:
Performance Parameter
| Parameter | Min. | Typ | Max. | Unit | |
| Operating Wavelength | 1290 | 1320 | nm | ||
| Number of Ports | 1~2 | ||||
| Output Power | 6 | 10 | dBm | ||
| Gain | 0 | 14 | 18 | dB | |
| Input Power | -15 | -10 | dBm | ||
| Noise Figure | 6.0 | 7.5 | dB | ||
| Gain Flatness | 1.0 | 2 | dB | ||
| Polarization Dependence Gain | 1.5 | dB | |||
| Return Loss | 45 | dB | |||
| Size | SOA Module | 191W)x20(H)x253(D) | mm | ||
| Environment | Operating Temperature | -10℃ ~ 60℃ | ℃ | ||
| Storage Temperature | -40℃ ~ 80℃ | ℃ | |||
| RelativeHumidity | 5% ~ 95% Non-condensing | ||||
| Power Consumption | ≤15W | W | |||
100G SOA
Ordering Information
| Model | Function |
| SOA1C | Single SOA amplifier，Support one 100G signal amplification. |
| SOA2C | Dual SOA amplifier，Support two 100G signal amplification. |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
