SFP28 Multi-Rate Quad Transponder
QS2SFP28
1

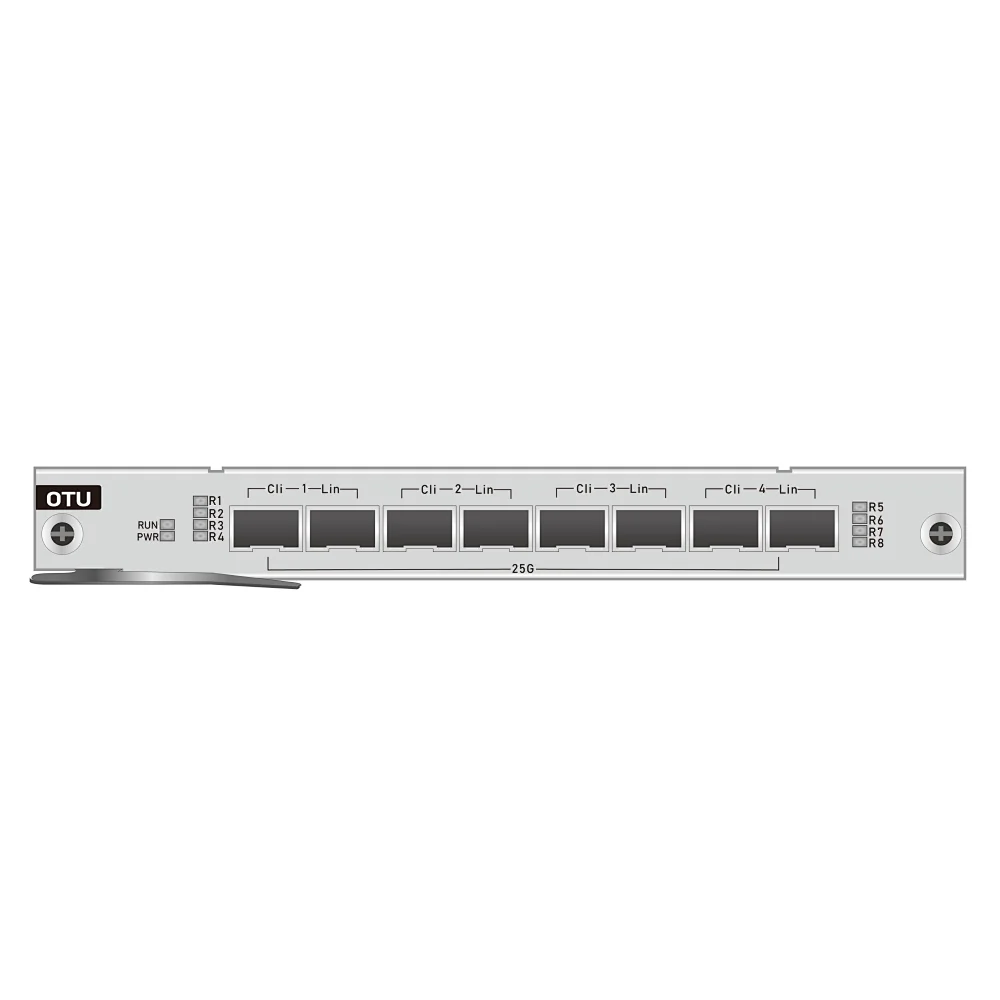

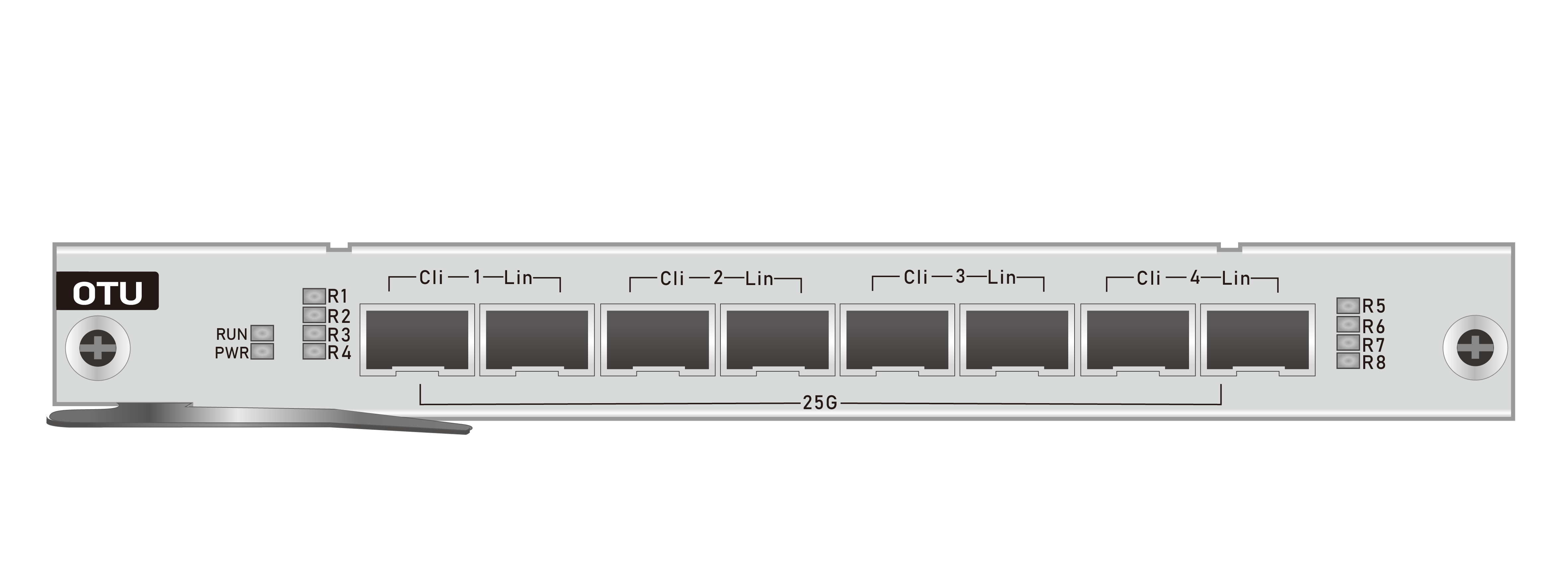

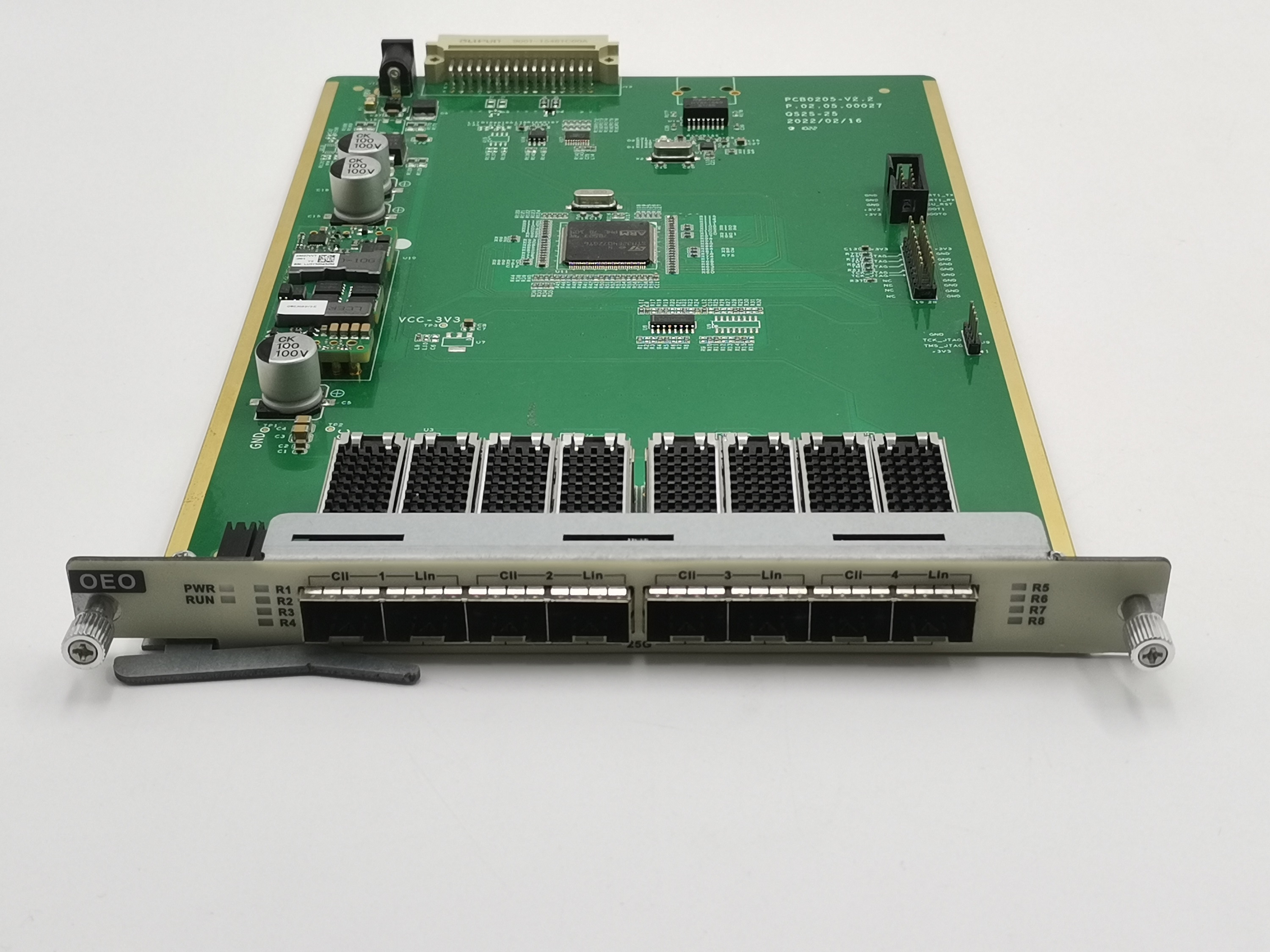

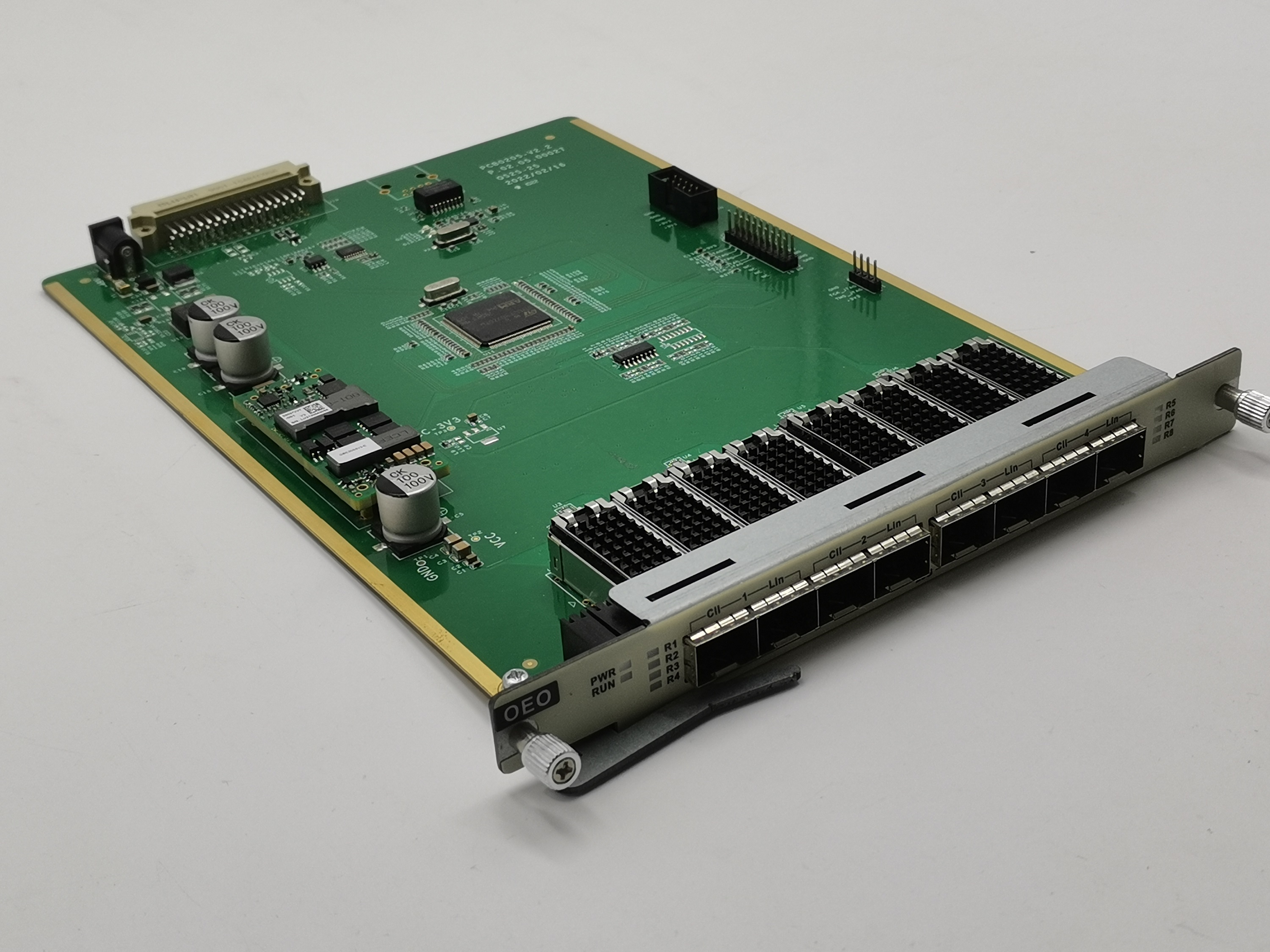

SFP28 Multi-Rate Quad Transponder has 8 SFP28 slots. The device provides a flexible transmission of various protocols, such as 100M/1G/10G/25G Ethernet, SDH STM1/STM4/STM16/STM64, Fiber Channel 1/2/4/8 /10/16/32Gbps, CPRI, etc. The SFP28 transponder supports multi-rate functionality with optical data rates from 1Gbps up to32Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
Quantity
SFP28 Multi-Rate Quad Transponder
125Mbps~32Gbps Repeater/Converter/Transponder
SFP28 Multi-Rate Quad Transponder has 8 SFP28 slots. The device provides a flexible transmission of various protocols, such as 100M/1G/10G/25G Ethernet, SDH STM1/STM4/STM16/STM64, Fiber Channel 1/2/4/8 /10/16/32Gbps, CPRI, etc.
The SFP28 transponder supports multi-rate functionality with optical data rates from 1Gbps up to32Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
The main field of application is CWDM and DWDM networks. As an intelligent transponder module, SFP28 Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength. The module is also suited for the use as a repeater. The SFP28 transponder models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
125Mbps~32Gbps Repeater/Converter/Transponder
SFP28 Multi-Rate Quad Transponder has 8 SFP28 slots. The device provides a flexible transmission of various protocols, such as 100M/1G/10G/25G Ethernet, SDH STM1/STM4/STM16/STM64, Fiber Channel 1/2/4/8 /10/16/32Gbps, CPRI, etc.
The SFP28 transponder supports multi-rate functionality with optical data rates from 1Gbps up to32Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
|
|
| |
CPRI: 2/3/4/5/6/7 1G/10G/25G Ethernet SDH STM-4/16/64 |
The main field of application is CWDM and DWDM networks. As an intelligent transponder module, SFP28 Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength. The module is also suited for the use as a repeater. The SFP28 transponder models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
| System Parameters | Technical Indicators | |
| Center Wavelength | Compliance with ITU-I standard CWDM 1271 ~ 1611nm DWDM 1529.5~1565.50nm | |
| Data Rate (Gbps) | Fiber Channel :1/2/4/8 /10/16/32Gbps CPRI;2/3/4/5/6/7 Ethernet :1G/10G/25G SONET: OC-24, OC-48, OC-192 SDH :STM-16/64 | |
| Optical Interface Type | 8xSFP28 | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191(W) x 253 (D) x 20 (H) mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤30W | |
Ordering Information
| Model | Function | Protocols | Client | Line |
| QS2SFP28 | 125Mbps~32Gbps Quad Multi-Rate transponder, Converter/Repeater, 8xSFP28 interfaces . | Fiber Channel :1/2/4/6/8/10/16/32G CPRI:2/3/4/5/6/7 LAN or WAN PHY :100M/1G/10G/25G SDH :STM-1/4/16/64 | 4 x SFP28 | 4 x SFP28 |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
