SFP+ Multi-Rate Quad Transponder
OTUQS2S
SFP+ Multi-Rate Quad Transponder has 8 SFP+ slots. The device provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, CPRI, etc. The SFP+ transponder supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
Quantity
0.00
SFP+ Multi-Rate Quad Transponder
10Gbps Repeater/Converter/Transponder
SFP+ Multi-Rate Quad Transponder has 8 SFP+ slots. The device provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, CPRI, etc. The SFP+ transponder supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.

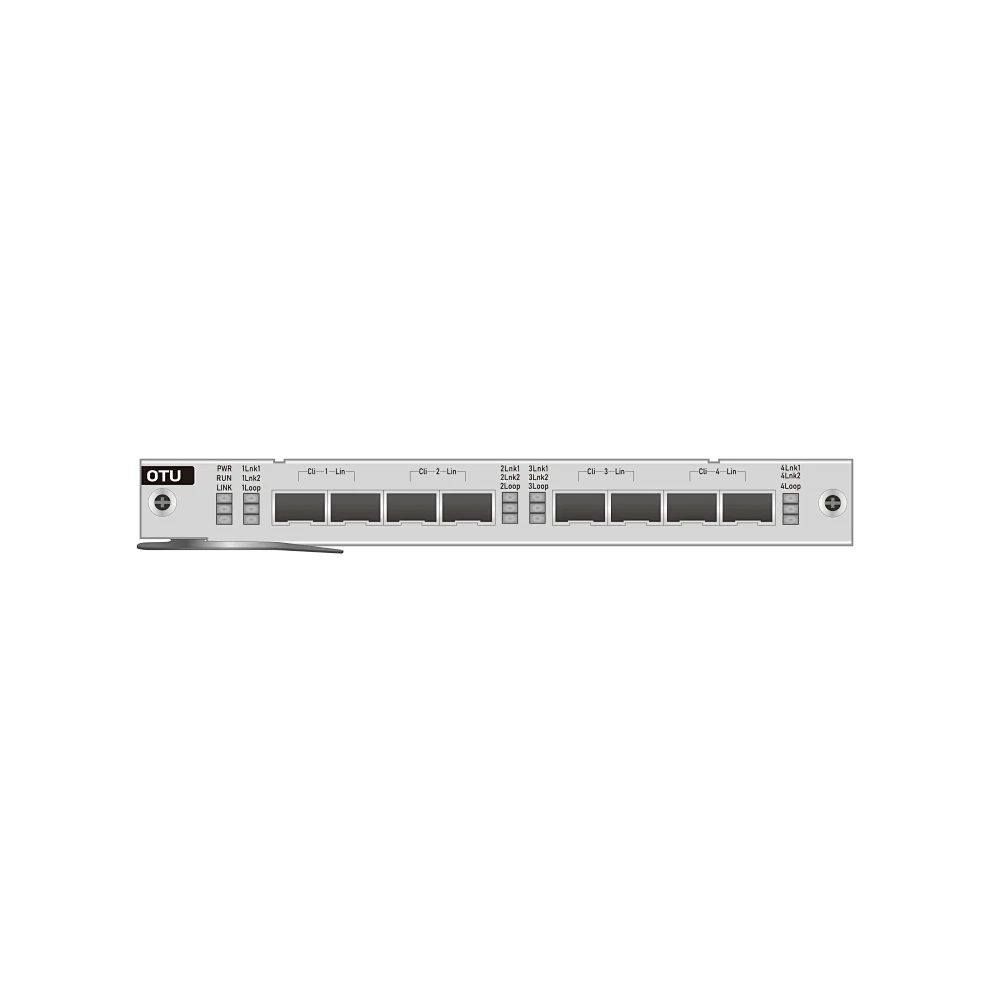

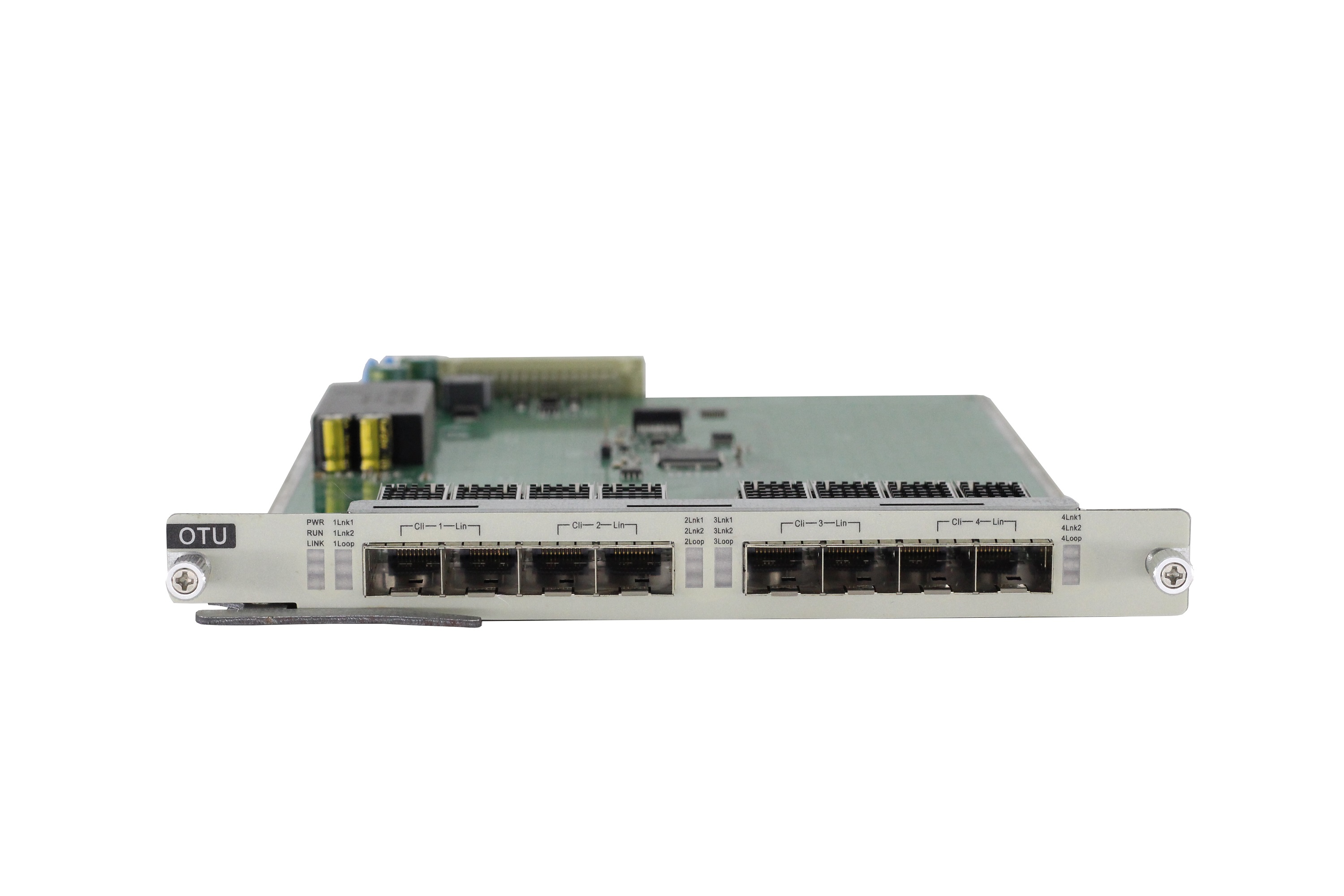

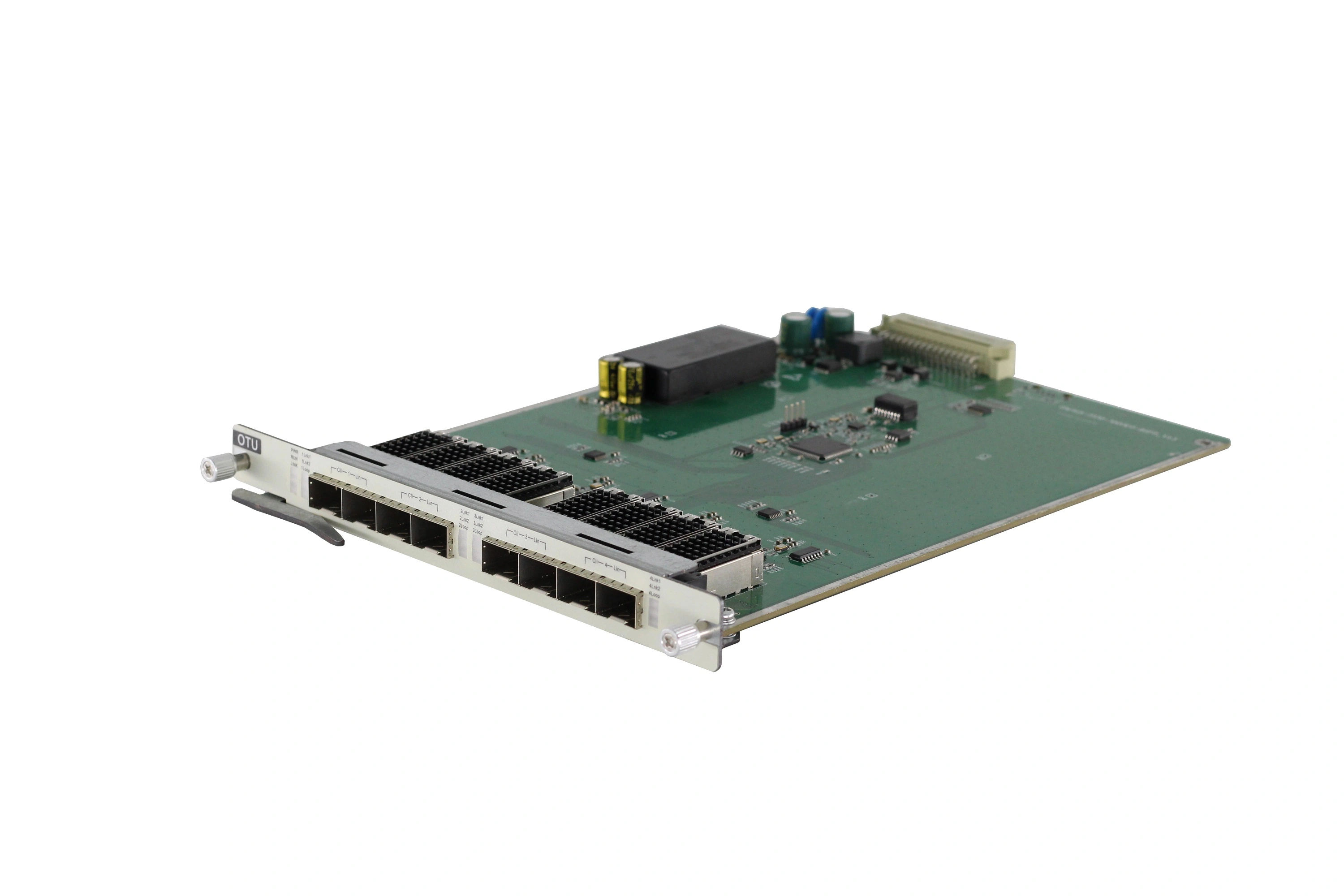

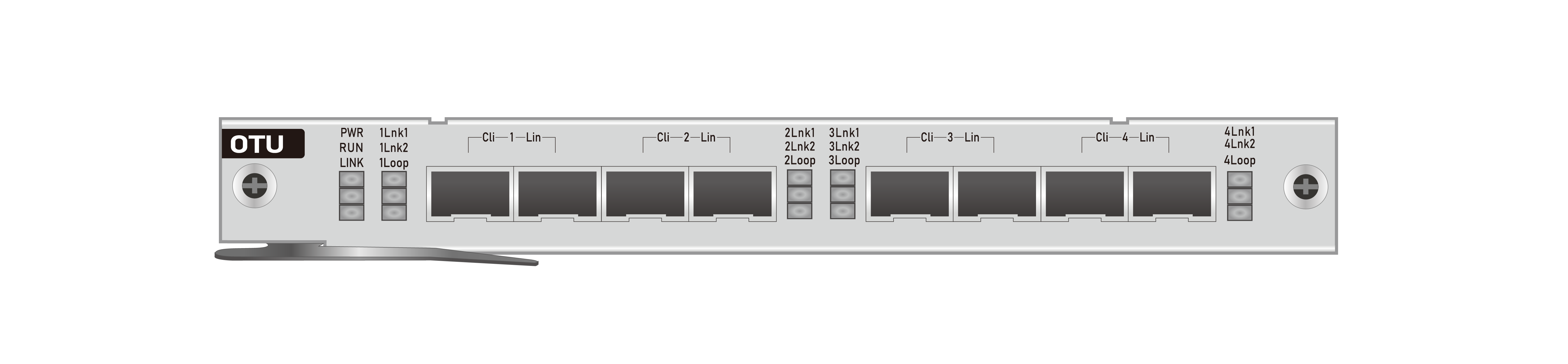

The main field of application is CWDM and DWDM networks. As an intelligent transponder module, SFP+ Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength.
By means of the implemented 3R functionality (re-amplification, re-shaping, re-timing) for signal processing, the module is also suited for the use as a repeater. The SFP+ transponder models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
10Gbps Repeater/Converter/Transponder

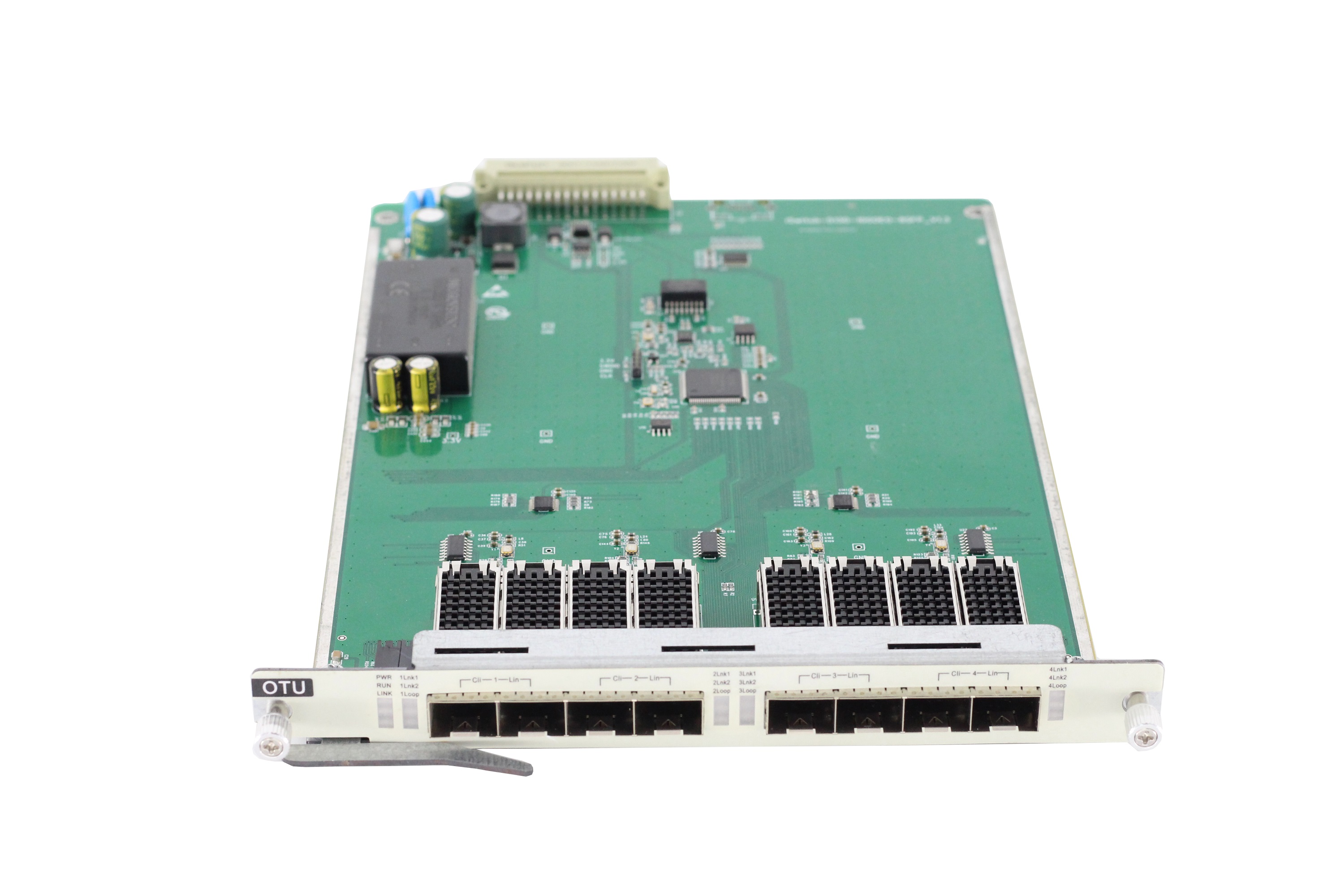

SFP+ Multi-Rate Quad Transponder has 8 SFP+ slots. The device provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, CPRI, etc. The SFP+ transponder supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
|
Re-shaping Re-timing |
| |
| |
| |
CPRI: 2/3/4/5/6/7 1G/10G Ethernet SDH STM-4/16/64 |
The main field of application is CWDM and DWDM networks. As an intelligent transponder module, SFP+ Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength.
By means of the implemented 3R functionality (re-amplification, re-shaping, re-timing) for signal processing, the module is also suited for the use as a repeater. The SFP+ transponder models fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
| System Parameter | Technical Indicator | |
| Center Wavelength | Compliance with ITU-I standard CWDM 1271 ~ 1611nm DWDM 1529.5~1565.50nm 850nm/1310nm/1550nm | |
| Data Rate (Gbps) | Fiber Channel: 1/2/4/8 /10Gbps CPRI: 2/3/4/5/6/7 LAN or WAN PHY: 1G/10G Ethernet SONET: OC-24, OC-48, OC-192 SDH: STM-16/64 | |
| 3R Regeneration | Re-amplification, Re-shaping, Re-timing | |
| Optical Interface Type | 8xSFP+ | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191 ( W ) x 253 ( D ) x 20 ( H ) mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤30W | |
Ordering Information
| Model | Function | Protocols | Client Side | Line Side |
| OTUQS2S | 1.25G~10G Quad Multi-Rate transponder, Converter/Repeater, 8SFP+ interfaces with 3R . | Fiber Channel : 1/2/4/8 /10Gbps CPRI: 2/3/4/5/6/7 LAN or WAN PHY: 1G/10G SONET: OC-24, OC-48, OC-192 SDH : STM-16/64 | 4 x SFP+ | 4 x SFP+ |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
