S6865-56YC Layer 3 Switch

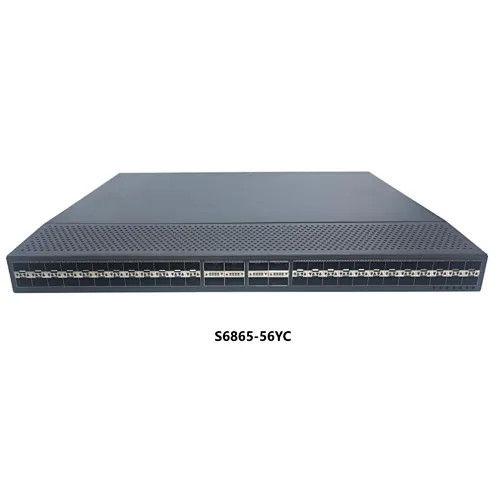

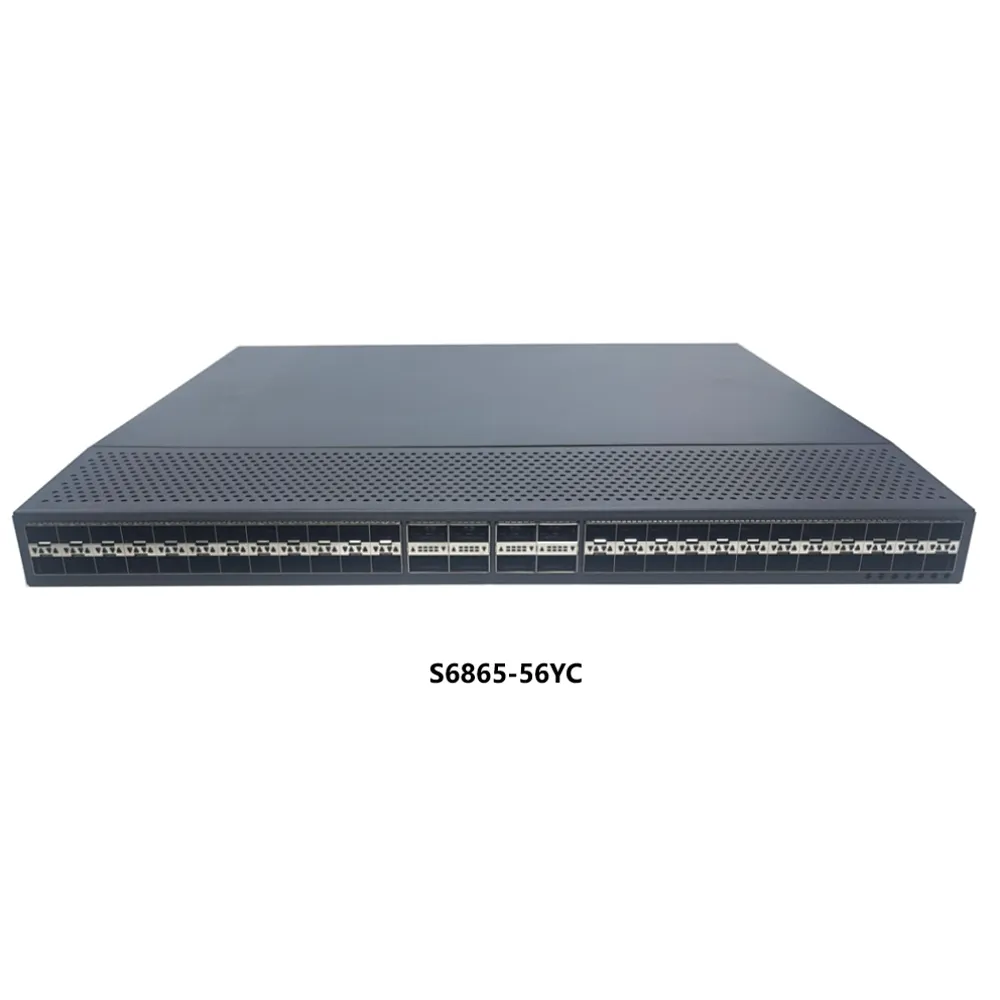

S6865-56YC
S6865-56YC switch is a high-performance high-density uplink switch with 25Gigabit Downlink 100Gigabit Uplink independently developed by the company. The whole switch adopts advanced hardware structure design and pluggable power redundancy design. It can support a maximum of 48*25Gigabit ports, 8*100G uplink ports, provide full port L2/L3 line speed forwarding capability, and support IPV6.
Quantity

S6865-56YC Full 10Gigabit Access 100Gigabit Uplink Layer 3 Switch

Product overview:
S6865-56YC switch is a high-performance high-density uplink switch with 25Gigabit Downlink 100Gigabit Uplink independently developed by the company. The whole switch adopts advanced hardware structure design and pluggable power redundancy design. It can support a maximum of 48*25Gigabit ports, 8*100G uplink ports, provide full port L2/L3 line speed forwarding capability, and support IPV6. It provides rich service features and powerful functions, such as ACL policies, flexible Q-in-Q, and network security protection. At the same time, the product has the highest 10Gigabit port density and the largest switching capacity of the same grade equipment in the industry, and supports full-port line speed forwarding.

The elastic stack function virtualizes multiple devices into a logical entity, which can expand port and switching capacity, and manage, upgrade, and maintain multiple devices in a unified manner. To meet the requirements of large data traffic and non-blocking transmission in data centers, the product provides powerful cache capabilities and supports advanced cache scheduling mechanisms to ensure the maximum effective utilization of the device's cache capabilities. It is designed to meet the requirements of high-density and high-bandwidth network applications in next-generation enterprise networks, data centers and metropolitan area networks. It can be applied to the Ethernet aggregation layer or access layer of network operators or campuses, as well as the access layer of data centers and the core layer of small and medium-sized enterprises, and provides rich server access solutions for data centers.

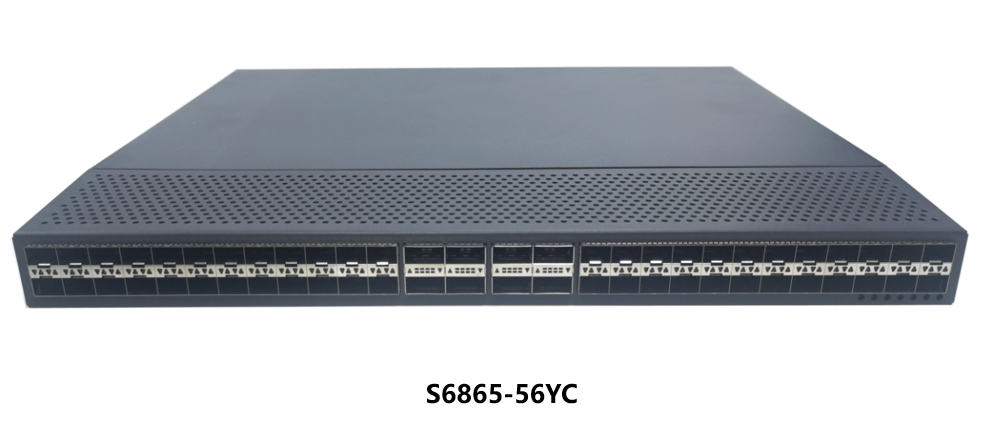

S6865-56YC Layer 3 Switch

  • S6865-56YC:48*25G SFP+, 8*100G QSFP28, 1+1 modular redundant power supply, two pluggable Fans;
Ethernet aggregation layer






Product Feature:
Operationallevel device stability and network resilience
  • support IPv4/IPv6 dual protocol stack platform
  • Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS
  • Support VRRP/ERRP/ERPS/MSTP/Smartlink etc. Various link redundancy and network redundancy protocol
  • Support 802.3ad LACP
Perfect safety mechanism
  • Support ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port
  • Support ARP attack automatic protection and user blocking functions
  • Support DHCP attack automatic protection based on Mac Address and user blocking functions
  • Supports various device protection functions such as anti-ddos, CPU overflow protection, CPU queue flow control, and VRRP
  • Support DHCP-snooping/IP-source-Guard/802.1X and other security features
  • Support link protection functions such as BFD, FlexLink, LACP and ERRP
  • Support remote loop detection function
  • Support CFM, EFM and other Ethernet link detection mechanisms
  • Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Powerful QoS capabilities
  • Support port speed and flow speed limit function
  • Support classification based on service flow and Qos flow control function
  • Support queue scheduling algorithms such as SP/WRR/SP+WRR
  • Support port-based and service flow-based mirroring functions
Enhanced multi-service capabilities
  • Support DHCP Server and DHCP Relay
  • Support L2-Tunnel
  • Support Ethernet OAM protocol such as CFM, EFM
Rich routing protocol
  • Support static route
  • Support dynamic route such as RIP, OSPF, BGP, ISIS
  • Supports routing policies based on Route-map, IP-ACL, AS-path, and IP-prefix
Simple and easy-to-use network management function
  • Support CLI based on RS232 serial port, Telnet and SSHv2
  • Support WEB-based configure operation management, support SNMP V1/V2/V3
  • Support remote upgrade or equipment through FTP and TFTP
