S5720 Series 2.5G access Layer 3 Switch
S5720
The S5720 series switch is a layer 3 Ethernet switch, which can meet the needs of cost-effective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers.
Quantity
S5720 Series 2.5G access Layer 3 Switch
Product overview:
TheS5720 series switch is a layer 3 Ethernet switch, which can meet the needs of cost-effective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers. S5720 uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports security features such as IP+MAC+port binding, supports service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support Ethernet OAM 802.3ag (CFM), 802.3ah (EFM), support strategy-based IPV4/6 unicast routing, support flexible forwarding strategy.
S5720Including the following models:

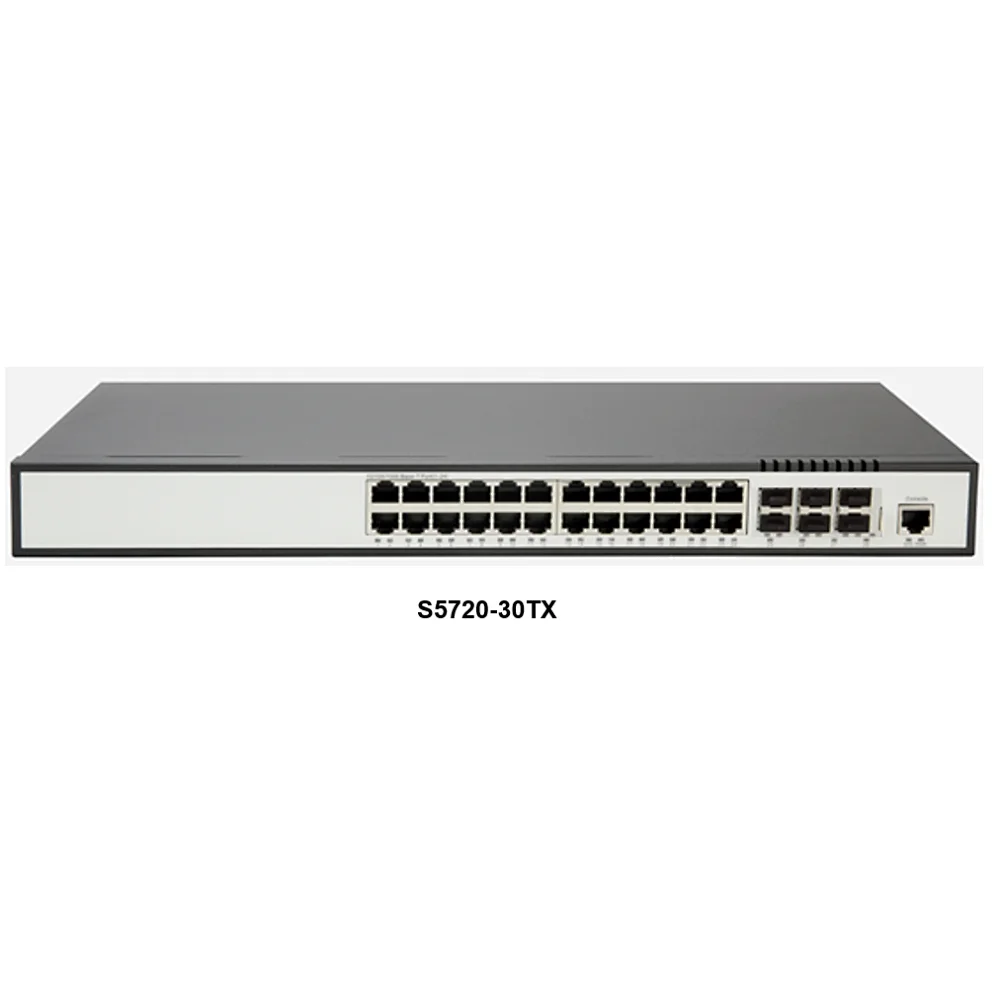

- S5720-30TX：24*2.5G Base-T，6*1000M Base-X SFP/10GE SFP+, Single power supply;

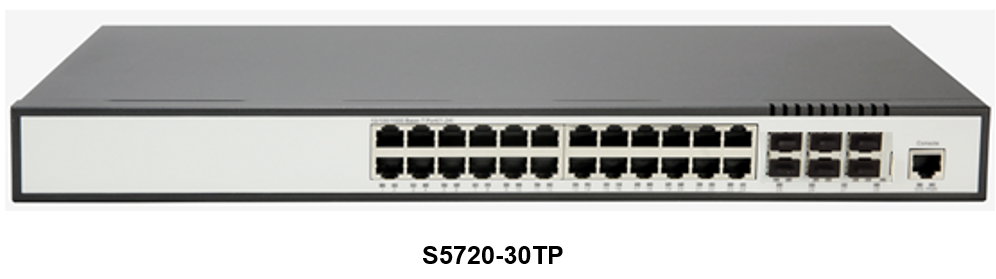

- S5720-30TP：24*2.5G POE Base-T，6*1000M Base-X SFP/10GE SFP+, Single Power;
Product Feature:
Carrier-level equipment stability
- Based on Linux operating system, support IPv4/IPv6 dual protocol stack platform
- Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP
Perfect safety mechanism
- Support ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port
- Support ARP attack automatic protection and user blocking functions
- Support DHCP attack automatic protection based on Mac Address and user blocking functions
- Support DDOS and virus attack protection
- Support DHCP-snooping/IP-source-Guard/802.1X and other security features
- Support link protection functions such as BFD, FlexLink, LACP and ERRP
- Support remote loop detection function
- Support CFM, EFM
- Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Powerful QoS capabilities
- Support port speed and flow speed limit function
- Support classification based on service flow and Qos flow control function
- Support queue scheduling algorithms such as SP/WRR/SP+WRR
- Support port-based and service flow-based mirroring functions
Enhanced multi-service capabilities
- Support DHCP Server and DHCP Relay
- Support L2-Tunnel
- Support Ethernet OAM protocol such as CFM, EFM
Rich routing protocol
- Support static route
- Support dynamic route such as RIP, OSPF, BGP, ISIS
- Support IPV4/IPV6 dual protocol stack, support RIPng, OSPFv3
Simple and easy-to-use network management function
- Support CLI based on RS232 serial port, Telnet and SSHv2
- Support WEB-based configure operation management, support SNMP V1/V2/V3
- Support remote upgrade or equipment through FTP and TFTP
