S5710 Series Layer 3 Switch
S5710
The S5710 series switch is a layer 3 Ethernet switch, which can meet the needs of cost-effective Gigabit access and 10 Gigabit uplink for enterprise networks and operator customers.
Quantity
S5710 Series Layer 3 Switch
Product overview:
TheS5710 series switch is a layer 3 Ethernet switch, which can meet the needs of cost-effective Gigabit access and 10 Gigabit uplink for enterprise networks and operator customers. S5710 uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports security feature such as IP+MAC+port binding, supports service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support Ethernet OAM 802.3ag (CFM), 802.3ah (EFM), support strategy-based IPV4/6 unicast routing, support flexible forwarding strategy.

S5710Including the following models

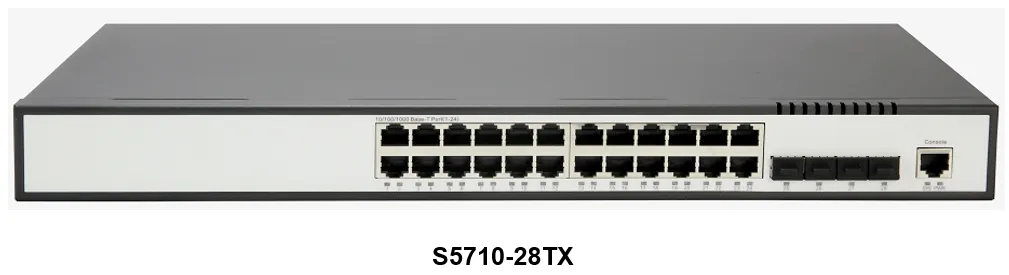

  • S5710-28TX：24*10/100/1000M Base-T，4*1000M Base-X SFP/10GE SFP+, Single power supply;

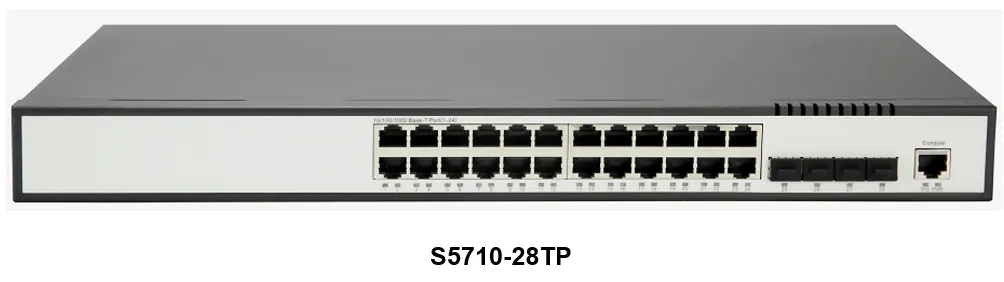

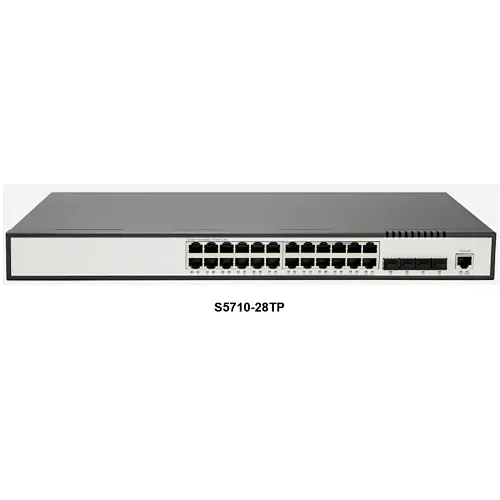

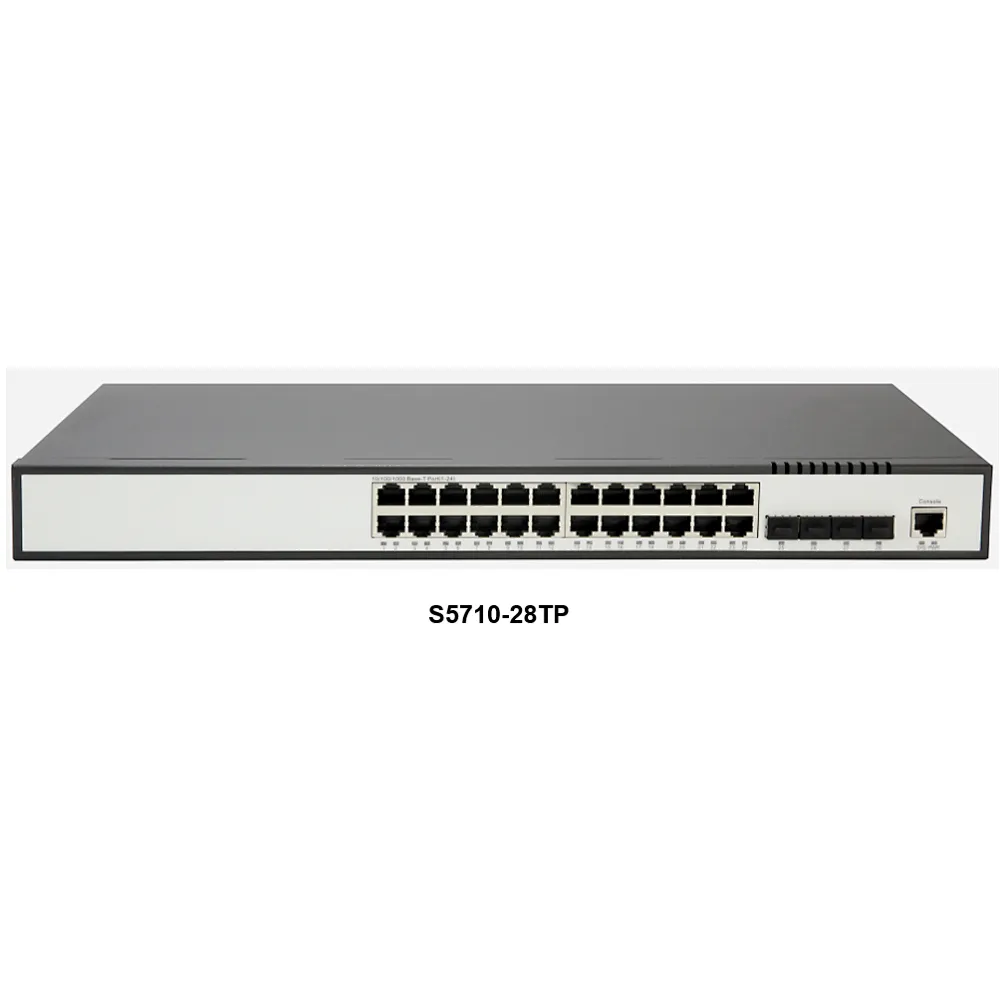

  • S5710-28TP：24*10/100/1000M POE Base-T，4*1000M Base-X SFP/10GE SFP+, Single power supply;

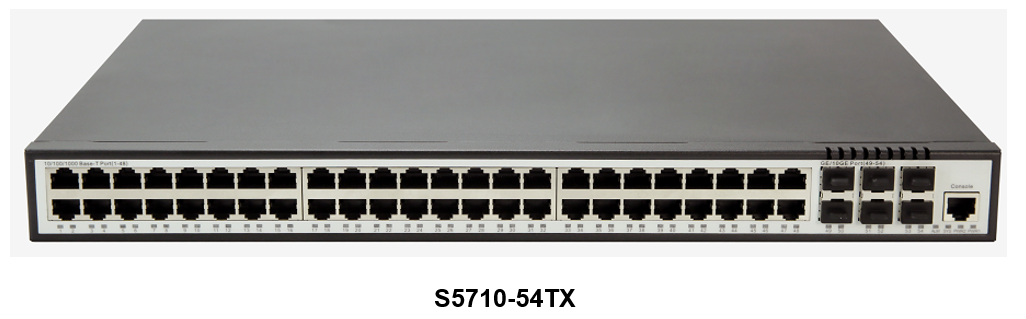

  • S5710-54TX：48*10/100/1000M Base-T，6*1000M Base-X SFP/10GE SFP+, Dual Power;

Ethernet switch



enterprise networks



10 Gigabit uplink



Product Feature:
Carrier-level equipment stability
  • Based on Linux operating system, support IPv4/IPv6 dual protocol stack platform
  • Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP
Perfect safety mechanism
  • Support ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port
  • Support ARP attack automatic protection and user blocking functions
  • Support DHCP attack automatic protection based on Mac Address and user blocking functions
  • Support DDOS and virus attack protection
  • Support DHCP-snooping/IP-source-Guard/802.1X and other security features
  • Support link protection functions such as BFD, FlexLink, LACP and ERRP
  • Support remote loop detection function
  • Support CFM, EFM
  • Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Powerful QoS capabilities
  • Support port speed and flow speed limit function
  • Support classification based on service flow and Qos flow control function
  • Support queue scheduling algorithms such as SP/WRR/SP+WRR
  • Support port-based and service flow-based mirroring functions
Enhanced multi-service capabilities
  • Support DHCP Server and DHCP Relay
  • Support L2-Tunnel
  • Support Ethernet OAM protocol such as CFM, EFM
Rich routing protocol
  • Support static route
  • Support dynamic route such as RIP, OSPF, BGP, ISIS
  • Support IPV4/IPV6 dual protocol stack, support RIPng, OSPFv3
Simple and easy-to-use network management function
  • Support CLI based on RS232 serial port, Telnet and SSHv2
  • Support WEB-based configure operation management, support SNMP V1/V2/V3
  • Support remote upgrade or equipment through FTP and TFTP
