Redundant Dual Rate Transponder
OCPDX2XX/OCPDS2SS
1

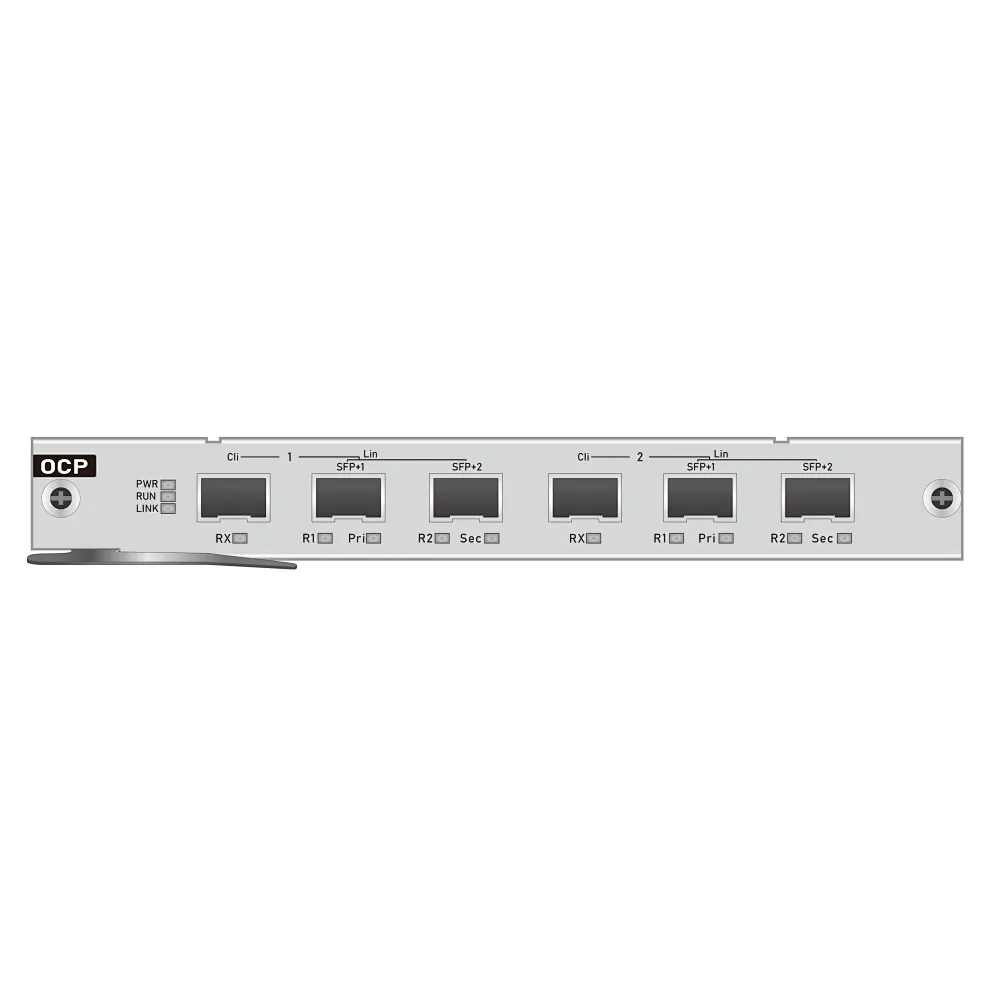

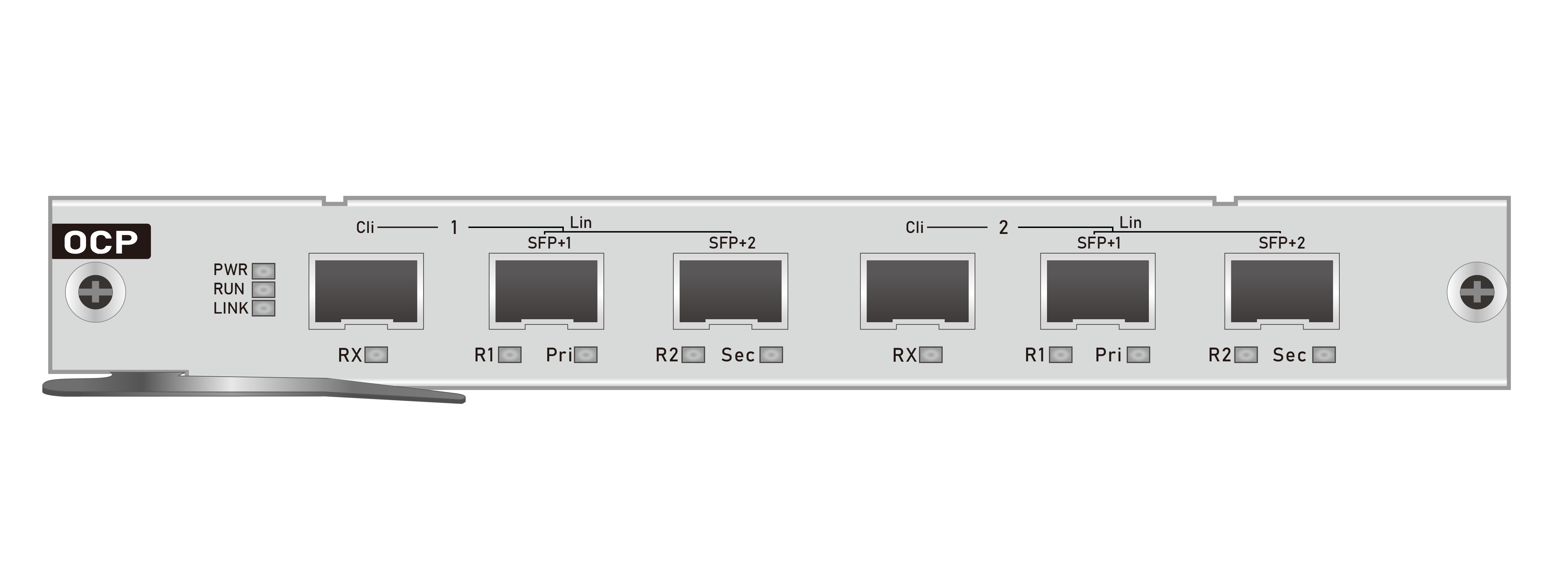

This transponder is a 10G fiber to fiber 3R converter repeater and transponder. This transponder supports SFP+ to SFP+ or XFP to XFP fiber connections. 1+1 Automatic optical line Protection Switching is supported for the Line ports. The transponder is protocol transparent, providing 3R (Re-amplification, Re-shaping and Re-clocking) between these different optical module types.
Quantity
Redundant Dual Rate Transponder
This transponder is a 10G fiber to fiber 3R converter repeater and transponder. This transponder supports SFP+ to SFP+ or XFP to XFP fiber connections. 1+1 Automatic optical line Protection Switching is supported for the Line ports. The transponder is protocol transparent, providing 3R (Re-amplification, Re-shaping and Re-clocking) between these different optical module types.
The modules enable an extremely wide range of optical infrastructure solutions including media conversion, signal repeating, lambda conversion, and Wave Division Multiplexing(WDM). Especially suitable for DWDM ring network protection. The redundant multi-rate dual transponder fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
This transponder is a 10G fiber to fiber 3R converter repeater and transponder. This transponder supports SFP+ to SFP+ or XFP to XFP fiber connections. 1+1 Automatic optical line Protection Switching is supported for the Line ports. The transponder is protocol transparent, providing 3R (Re-amplification, Re-shaping and Re-clocking) between these different optical module types.
|
Re-shaping Re-timing |
|
|
|
|
|
|
CPRI: 2/3/4/5/6/7 1G/10G Ethernet SDH STM-4/16/64 |
The modules enable an extremely wide range of optical infrastructure solutions including media conversion, signal repeating, lambda conversion, and Wave Division Multiplexing(WDM). Especially suitable for DWDM ring network protection. The redundant multi-rate dual transponder fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
| System Parameter | Technical Indicator | |
| Center Wavelength | Compliance with ITU-I standard CWDM 1271 ~ 1611nm DWDM 1529.5~1565.50nm 850nm/1310nm/1550nm | |
| Data Rate (Gbps) | Fiber Channel: 1/2/4/8 /10Gbps CPRI: 2/3/4/5/6/7 Ethernet: 1G/10G SONET: OC-24, OC-48, OC-192 SDH: STM-16/64 | |
| 3R Regeneration | Re-amplification, Re-shaping, Re-timing | |
| Optical Channel Protection | 1+1 optical channel protection, switching time＜30ms | |
| Optical Interface Type | 6xSFP+/6xXFP | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191 ( W ) x 253 ( D ) x 20 ( H ) mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤30W | |
Ordering Information
| Model | Function | Protocols | Client | Line |
| OCPDX2XX | 10G Dual Rate transponder, Converter/Repeater 6XFP interfaces with 3R, Line-side 1 + 1 redundancy protection. | Fiber Channel : 8 /10Gbps CPRI:CPRI7 LAN or WAN PHY :10G SONET: OC-192 | 2 x XFP | 4 x XFP |
| OCPDS2SS | 1.25G~10G Dual Rate transponder, Converter/Repeater 6xSFP+ interfaces with 3R, Line-side 1 + 1 redundancy protection. | Fiber Channel :1/2/4/8 /10Gbps CPRI:2/3/4/5/6/7 LAN or WAN PHY :1G/10G SONET: OC-24, OC-48, OC-192 | 2 x SFP+ | 4 x SFP+ |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
