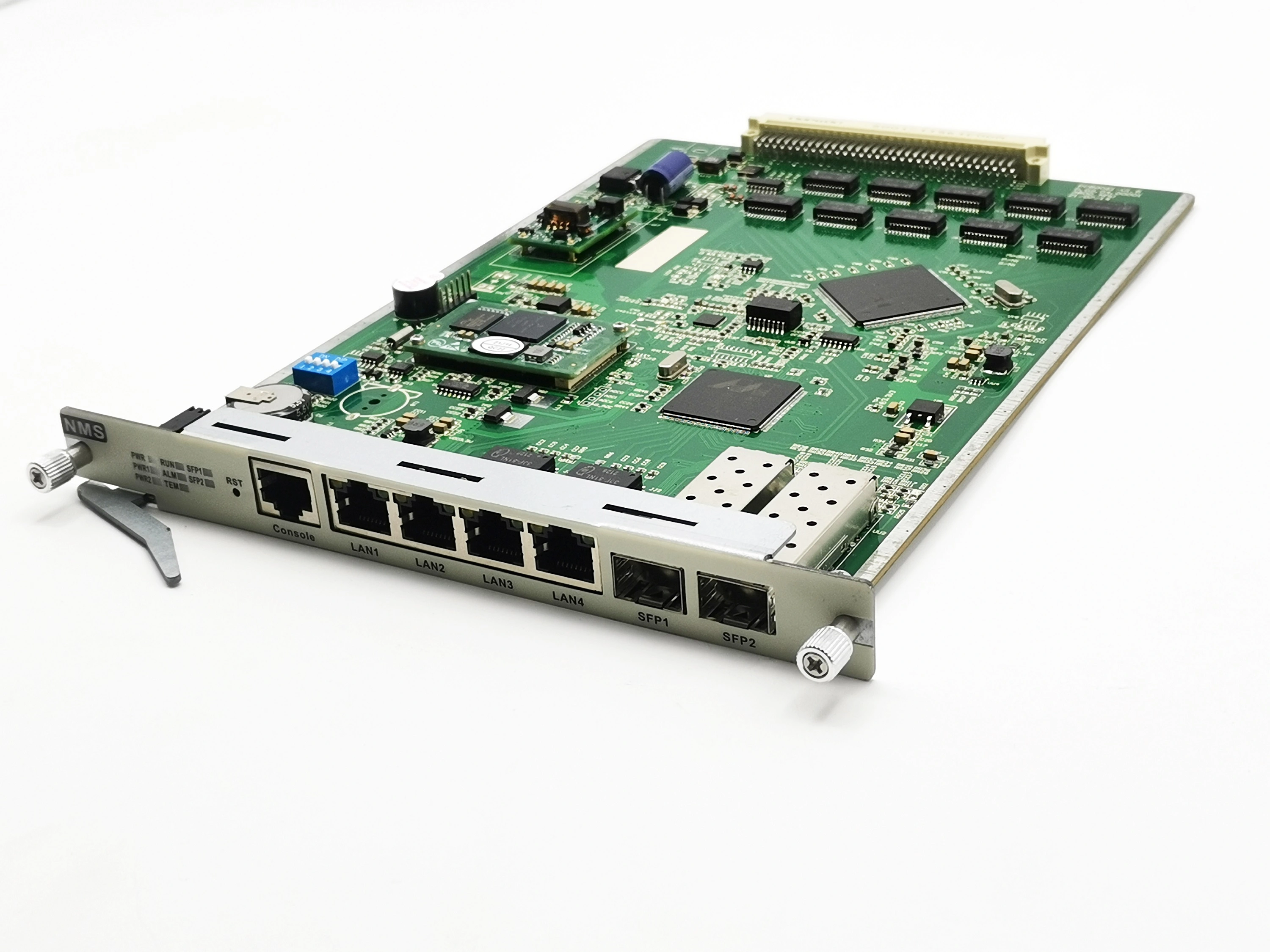

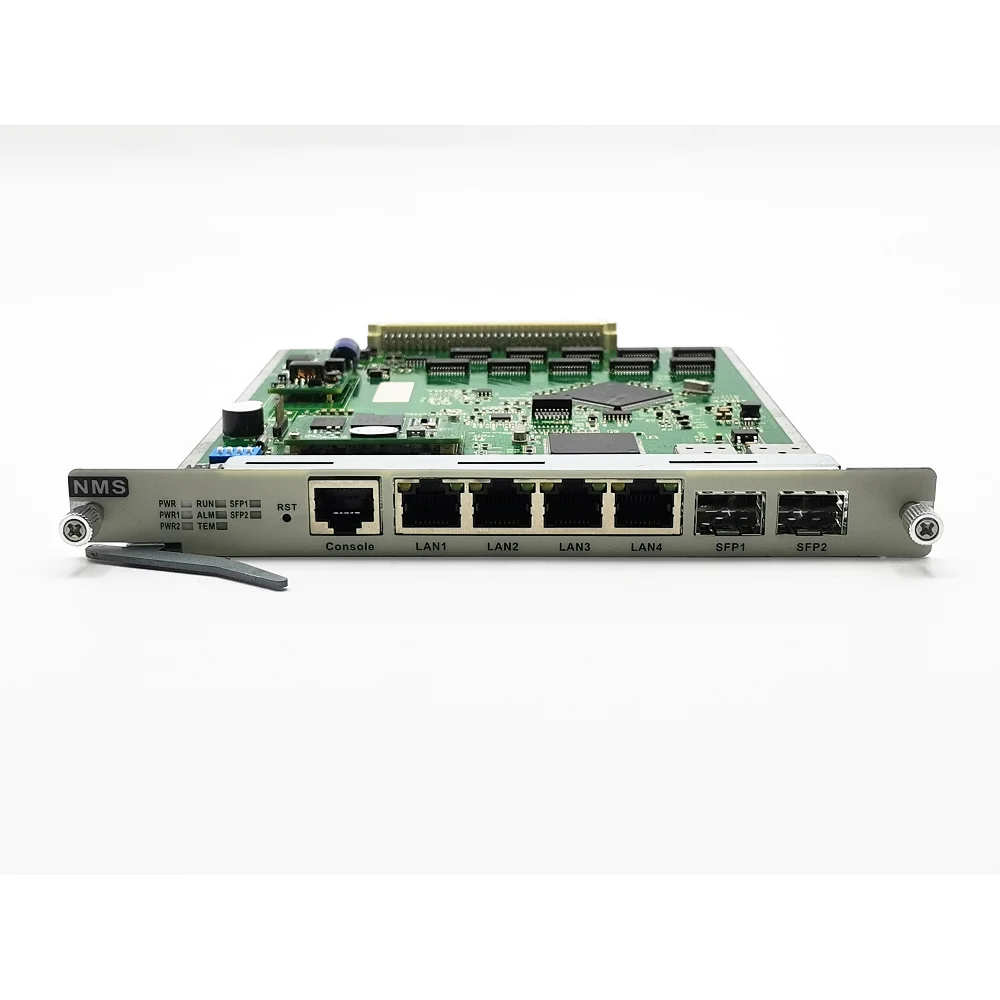

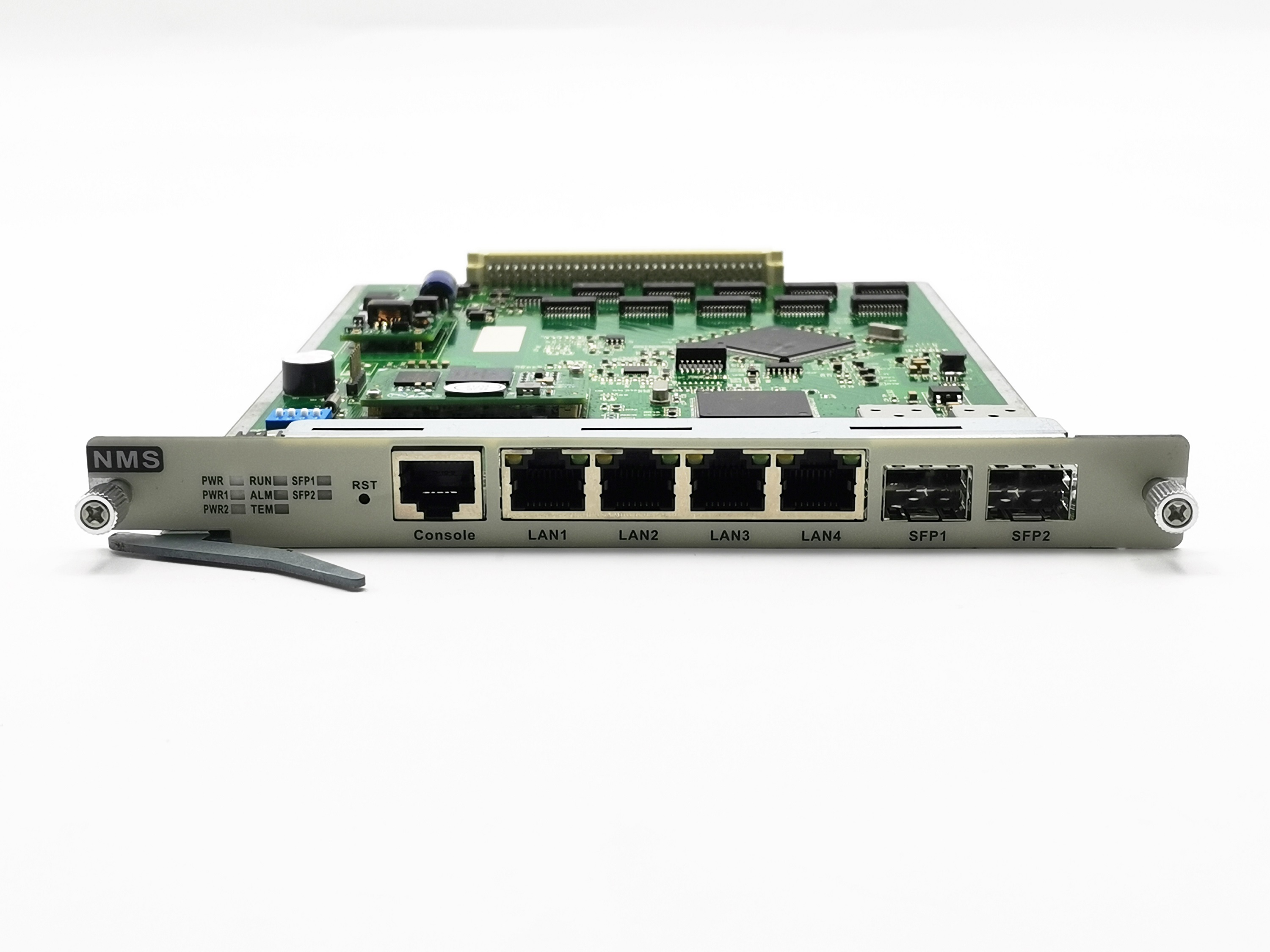

NMS Management Card
NMS-Management-Card
1

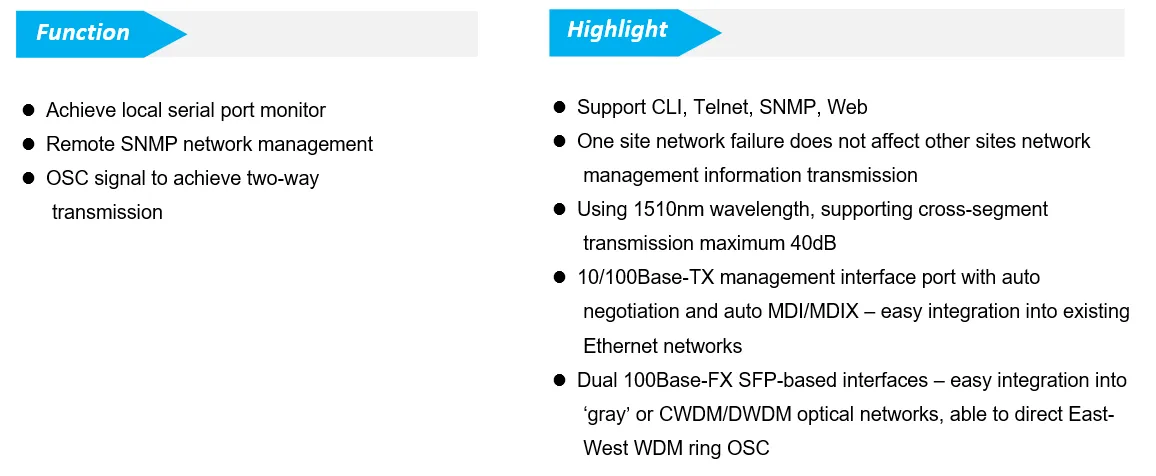

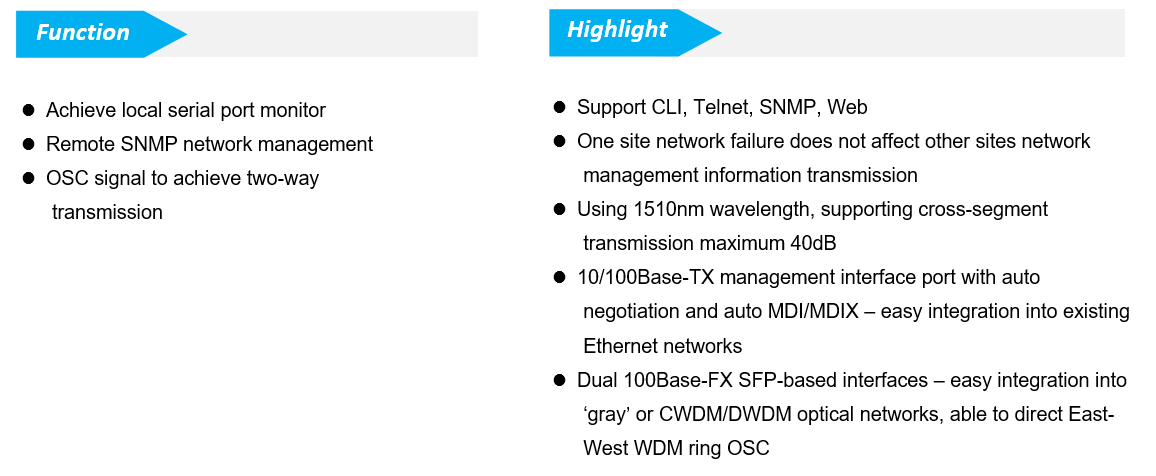

Achieve local serial port monitor.
Remote SNMP network management.
OSC signal to achieve two-way transmission.
Support CLI, Telnet, SNMP, Web.
One site network failure does not affect other sites network management information transmission.
Using 1510nm wavelength, supporting cross-segment transmission maximum 40dB.
10/100Base-TX management interface port with auto negotiation and auto MDI/MDIX – easy integration into existing Ethernet networks.
Remote SNMP network management.
OSC signal to achieve two-way transmission.
Support CLI, Telnet, SNMP, Web.
One site network failure does not affect other sites network management information transmission.
Using 1510nm wavelength, supporting cross-segment transmission maximum 40dB.
10/100Base-TX management interface port with auto negotiation and auto MDI/MDIX – easy integration into existing Ethernet networks.
Quantity
NMS Management Card
Specifications
| System parameters | Description |

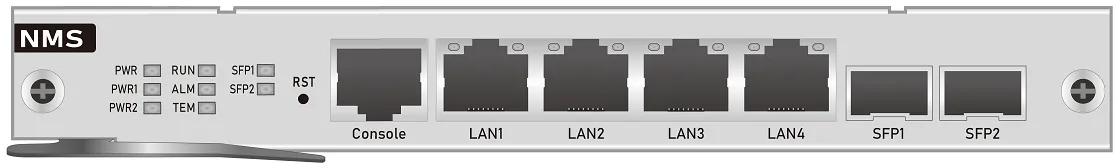

| CON | Local serial access (out-of-band) |
| Ethernet | 4x10/100Base-TX management interfaces ports with auto negotiation and auto MDI/MDIX – easy integration into existing Ethernet networks |
| SFPOpticalPort | Dual 100Base-FX SFP-based interfaces – easy integration into ‘gray’ or CWDM/DWDM optical networks, able to direct East-West WDM ring OSC |
| Management | CLI、Telnet、SNMP、Web |
| CrossFunction | Support IP communication between devices to achieve integrated management of multiple devices |
| ProtectiveFunction | Support dual optical port 1+1 protection |
| Size | 191(W) x253(D ) x 20(H ) mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| RelativeHumidity | 5% ~ 95% Non-condensing |
| Power Consumption | ≤15W |
