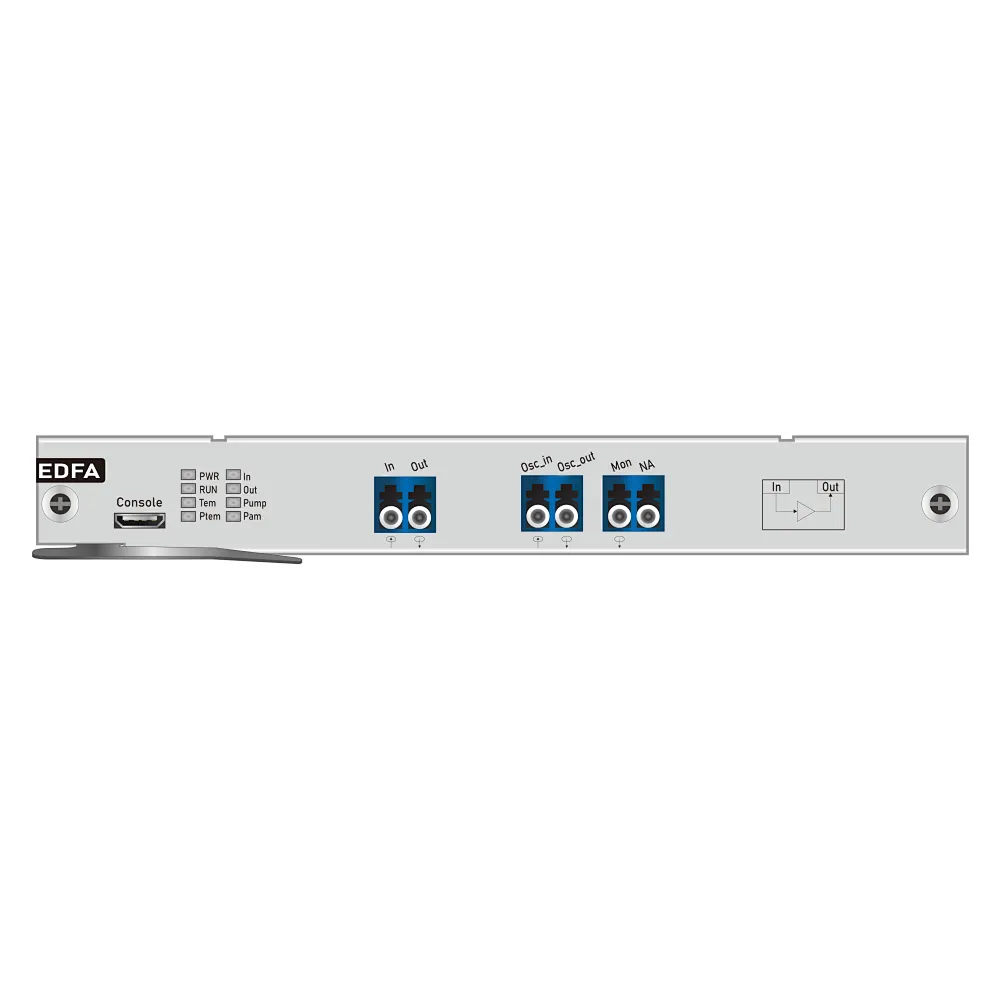

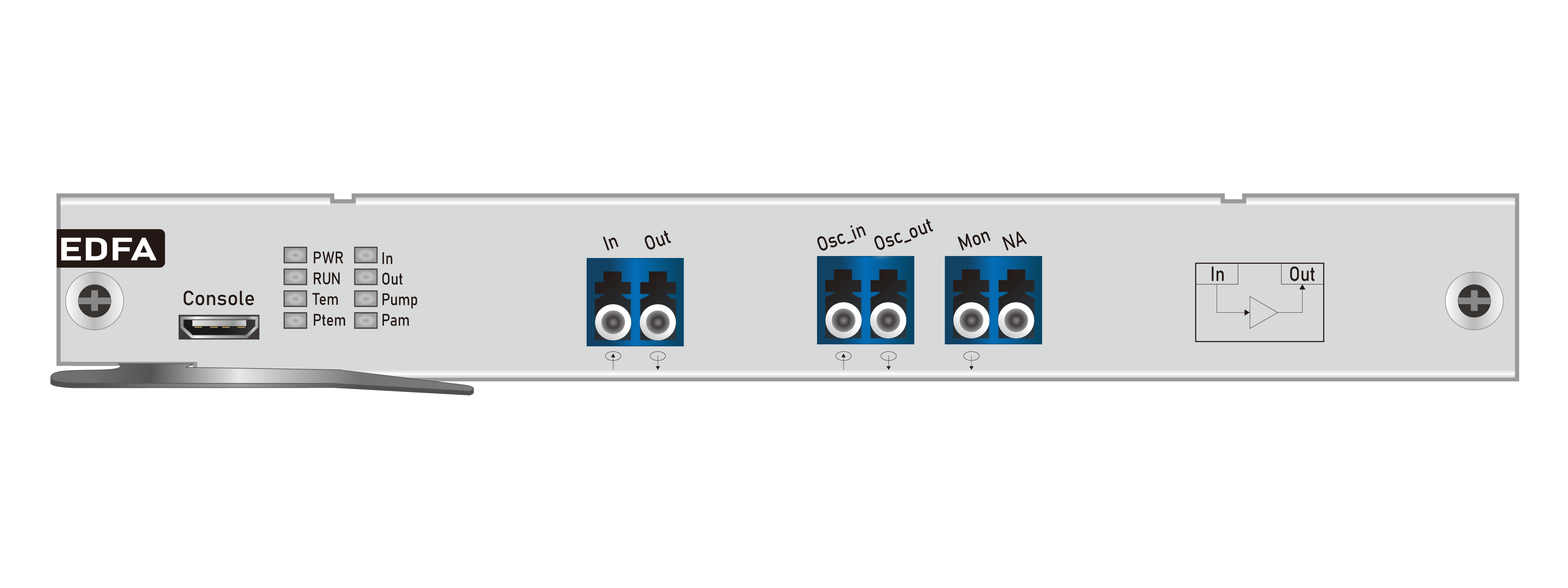

EDFA Optical Amplifier
EDFA
EDFA Optical Amplifier module provides multi-function, low noise, Erbium-Doped Fiber Amplifier (EDFA) solutions. The amplifier module can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). Integrated VOA can be automatically adjusted to achieve smooth gain spectrum. It can amplify the C-Band signal with or w/o middle stage access (MSA), which brings great flexibility for the network application.
Quantity
EDFA Optical Amplifier
EDFA Optical Amplifier module provides multi-function, low noise, Erbium-Doped Fiber Amplifier (EDFA) solutions. The amplifier module can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). Integrated VOA can be automatically adjusted to achieve smooth gain spectrum. It can amplify the C-Band signal with or w/o middle stage access (MSA), which brings great flexibility for the network application.

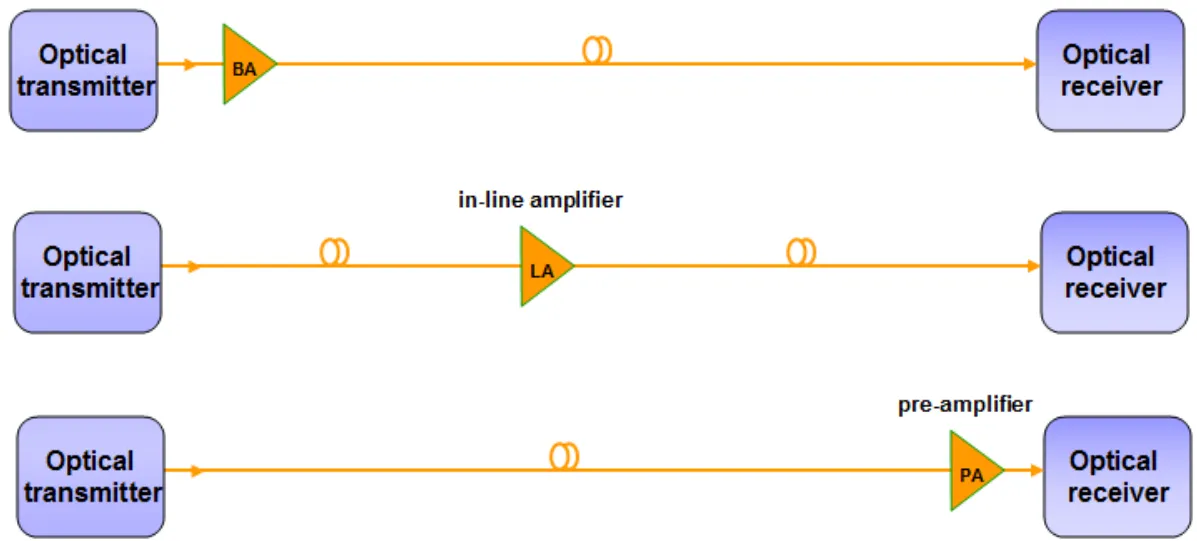

Many model options serve all the traditional amplifier applications in an extended optical link: booster, in-line, and pre-amplifier.
A booster amplifier operates at the transmission side of the link. It features high input power, high output power, and medium optical Gain . Boosters are designed to amplify aggregated optical input power for reach extension.
An in-line amplifier operates in the middle of an optical link. It features medium to low input power, high output power, high optical Gain , and a low noise figure. In-line amplifiers are designed for optical amplification between two network nodes on the main optical link.
A Pre-amplifier operates at the receiving end of an optical link. It features medium to low input power, medium output power, and medium Gain. Pre-amplifiers are designed for optical amplification to compensate for losses in a demultiplexer located near the optical receiver.

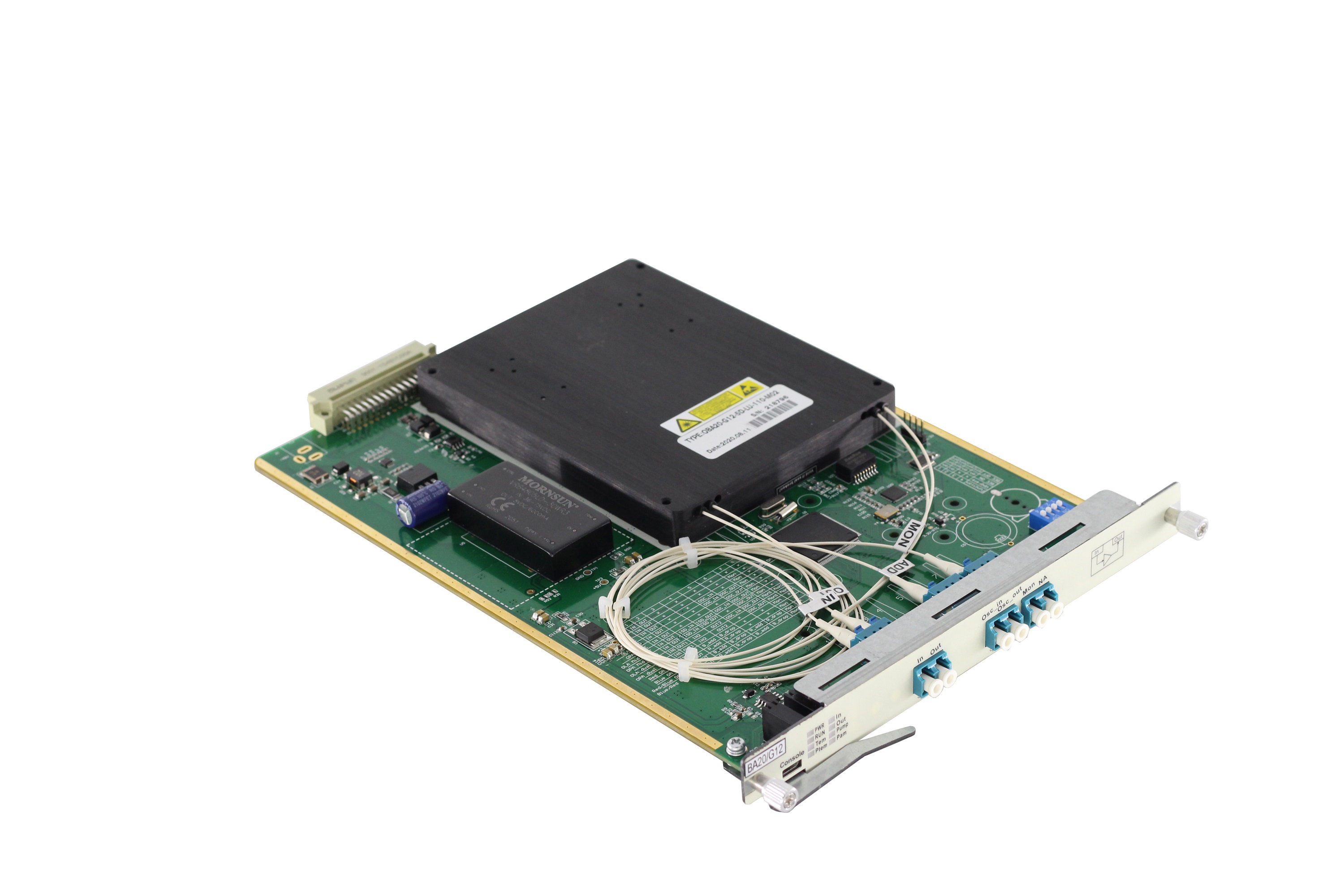

Some EDFA Models include an additional mid-stage port designed for insertion of a Dispersion Compensation Management (DCM) unit without its inherent insertion loss. The design of these models maximizes the DCM benefits to increase deployment flexibility. New placement options require fewer amplifiers in the link, and they can open the door to applications that were not possible with older technology.
Some EDFA Models include a red and a blue port designed for Single Fiber DWDM Solution. The design of these models is used for single-fiber DWDM transmission systems.
Performance Parameter
Common Module
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
EDFA Optical Amplifier module provides multi-function, low noise, Erbium-Doped Fiber Amplifier (EDFA) solutions. The amplifier module can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). Integrated VOA can be automatically adjusted to achieve smooth gain spectrum. It can amplify the C-Band signal with or w/o middle stage access (MSA), which brings great flexibility for the network application.
|
|
|
In-line Pre-amplifier |
|
|
| |
APC output is adjustable ACC voltage adjustable | |
| |
| |
|
Many model options serve all the traditional amplifier applications in an extended optical link: booster, in-line, and pre-amplifier.
A booster amplifier operates at the transmission side of the link. It features high input power, high output power, and medium optical Gain . Boosters are designed to amplify aggregated optical input power for reach extension.
An in-line amplifier operates in the middle of an optical link. It features medium to low input power, high output power, high optical Gain , and a low noise figure. In-line amplifiers are designed for optical amplification between two network nodes on the main optical link.
A Pre-amplifier operates at the receiving end of an optical link. It features medium to low input power, medium output power, and medium Gain. Pre-amplifiers are designed for optical amplification to compensate for losses in a demultiplexer located near the optical receiver.
Some EDFA Models include an additional mid-stage port designed for insertion of a Dispersion Compensation Management (DCM) unit without its inherent insertion loss. The design of these models maximizes the DCM benefits to increase deployment flexibility. New placement options require fewer amplifiers in the link, and they can open the door to applications that were not possible with older technology.
Some EDFA Models include a red and a blue port designed for Single Fiber DWDM Solution. The design of these models is used for single-fiber DWDM transmission systems.
Performance Parameter
| Parameter | Min. | Typical | Max. | Unit | |
| Operating Wavelength Blue | 1528 | 1565 | nm | ||
| Output Power | 22 | dBm | |||
| Gain | 8 | 33 | dB | ||
| Input Power | BA | -10 | Max.Output -Gain | dBm | |
| PA/LA | （Max.input-29） | Max.Output -Gain | |||
| Noise Figure | 5.0 | dB | |||
| Gain Flatness | 1.0 | dB | |||
| Input Threshold | -34 | Can be adjusted | dBm | ||
| Polarization Dependence Loss | 0.3 | dB | |||
| Polarization Dependence Gain | 0.4 | dB | |||
| Polarization Mode Dispersion | 0.5 | ps | |||
| Pump Power Leakage | -29 | dBm | |||
| Return Loss | 45 | dB | |||
| EDFA Size | 191 (W) x 253 (D) x 20 (H) | mm | |||
| Environment | Operating Temperature | -10℃ ~ 60℃ | ℃ | ||
| Storage Temperature | -40℃ ~ 80℃ | ℃ | |||
| Relative Humidity | 5% ~ 95% Non-condensing | ||||
| Power Consumption | ≤15 | w | |||
Common Module
| Model | Description | Gain dB | Max.Output dBm | Min.Input dBm | Max.Input dBm | Typ.NF dB |
| Booster Amplifier | ||||||
| BA16/G12 | Booster, Max.Output 16dBm, Gain 12dB, With OSC | 12dB | 16dBm | -10dBm | 4dBm | 5dB |
| BA16/G12NS | Booster, Max.Output 16dBm, Gain 12dB, Without OSC | 12dB | 16dBm | -10dBm | 4dBm | 5dB |

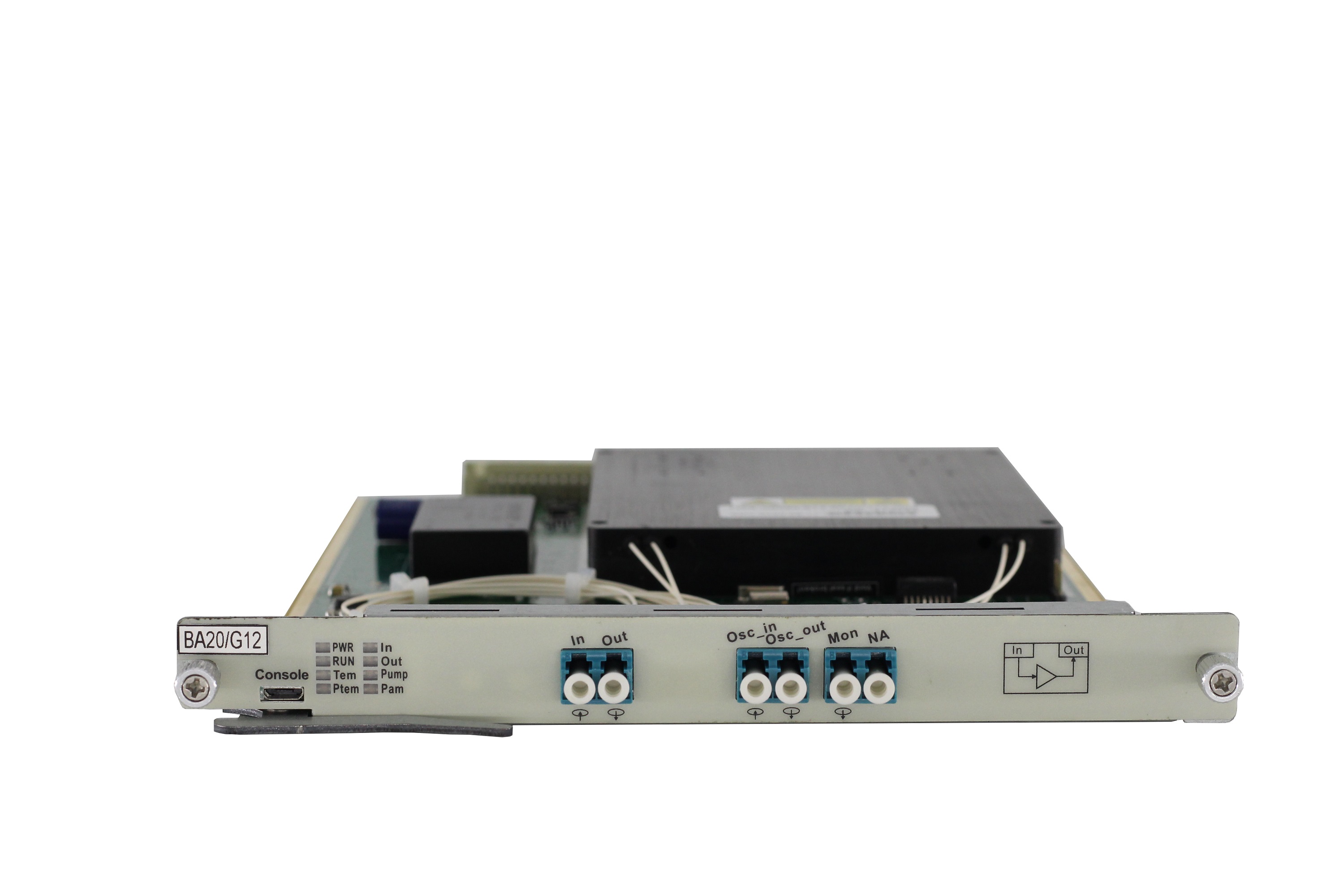

| BA20/G12 | Booster, Max.Output 20dBm, Gain 12dB, With OSC | 12dB | 20dBm | -10dBm | 8dBm | 5dB |
| BA20/G12NS | Booster, Max.Output 20dBm, Gain 12dB, Without OSC | 12dB | 20dBm | -10dBm | 8dBm | 5dB |
| Pre-Amplifier | ||||||
| PA16/G20 | Pre-Amplifier, Max.Output 16dBm, Gain 20dB, With OSC | 20dB | 16dBm | -29dBm | -4dBm | 4.5dB |
| PA16/G20NS | Pre-Amplifier, Max.Output 16dBm, Gain 20dB, Without OSC | 20dB | 16dBm | -29dBm | -4dBm | 4.5dB |
| PA16/G20-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 20dB, With OSC, Mid-access Gain 8dB | 20dB | 16dBm | -29dBm | -4dBm | 5dB |
| PA16/G20NS-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 20dB, Without OSC, Mid-access Gain 8dB | 20dB | 16dBm | -29dBm | -4dBm | 5dB |
| PA16/G25 | Pre-Amplifier, Max.Output 16dBm, Gain 25dB, With OSC | 25dB | 16dBm | -29dBm | -9dBm | 4.5dB |
| PA16/G25NS | Pre-Amplifier, Max.Output 16dBm, Gain 25dB, Without OSC | 25dB | 16dBm | -29dBm | -9dBm | 4.5dB |
| PA16/G25-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 25dB, With OSC, Mid-access Gain 8dB | 25dB | 16dBm | -29dBm | -9dBm | 5dB |
| PA16/G30-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 30dB, With OSC, Mid-access Gain 8dB | 30dB | 16dBm | -29dBm | -14dBm | 5dB |
| PA16/G25NS-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 25dB, Without OSC, Mid-access Gain 8dB | 25dB | 16dBm | -29dBm | -9dBm | 5dB |
| PA16/G30NS-8 | Midstage access Pre-Amplifier, Max.Output 16dBm, Gain 25dB, Without OSC, Mid-access Gain 8dB | 30dB | 16dBm | -29dBm | -14dBm | 5dB |
| In-Line-Amplifier | ||||||
| LA16/G20 | In-Line-Amp, Max.Output 16dBm, Gain 20dB, With OSC | 20dB | 16dBm | -29dBm | -4dBm | 5dB |
| LA16/G20NS | In-Line-Amp, Max.Output 16dBm, Gain 20dB, Without OSC | 20dB | 16dBm | -29dBm | -4dBm | 5dB |
| LA16/G20-8 | Midstage access In-Line-Amp, Max.Output 16dBm, Gain 20dB, With OSC, Mid-access Gain 8dB | 20dB | 16dBm | -29dBm | -4dBm | 6dB |
| LA16/G20NS-8 | Midstage access In-Line-Amp, Max.Output 16dBm, Gain 20dB, Without OSC, Mid-access Gain 8dB | 20dB | 16dBm | -29dBm | -4dBm | 6dB |
| LA20/G20 | In-Line-Amp, Max.Output 20dBm, Gain 20dB, With OSC | 20dB | 20dBm | -29dBm | 0dBm | 5dB |
| LA20/G20NS | In-Line-Amp, Max.Output 20dBm, Gain 20dB, Without OSC | 20dB | 20dBm | -29dBm | 0dBm | 5dB |
| LA20/G20-8 | Midstage access In-Line-Amp, Max.Output 20dBm, Gain 20dB, With OSC, Mid-access Gain 8dB | 20dB | 20dBm | -29dBm | 0dBm | 6dB |
| LA20/G20NS-8 | Midstage access In-Line-Amp, Max.Output 20dBm, Gain 20dB, Without OSC, Mid-access Gain 8dB | 20dB | 20dBm | -29dBm | 0dBm | 6dB |
| LA16/G25 | In-Line-Amp, Max.Output 16dBm, Gain 25dB, With OSC | 25dB | 16dBm | -29dBm | -9dBm | 5dB |
| LA16/G25NS | In-Line-Amp, Max.Output 16dBm, Gain 25dB, Without OSC | 25dB | 16dBm | -29dBm | -9dBm | 5dB |
| LA16/G25-8 | Midstage access In-Line-Amp, Max.Output 16dBm, Gain 25dB, With OSC, Mid-access Gain 8dB | 25dB | 16dBm | -29dBm | -9dBm | 6dB |
| LA16/G25NS-8 | Midstage access In-Line-Amp, Max.Output 16dBm, Gain 25dB, Without OSC, Mid-access Gain 8dB | 25dB | 16dBm | -29dBm | -9dBm | 6dB |
| LA20/G25 | In-Line-Amp, Max.Output 20dBm, Gain 25dB, With OSC | 25dB | 20dBm | -29dBm | -5dBm | 5dB |
| LA20/G25NS | In-Line-Amp, Max.Output 20dBm, Gain 25dB, Without OSC | 25dB | 20dBm | -29dBm | -5dBm | 5dB |
| LA20/G25-8 | Midstage access In-Line-Amp, Max.Output 20dBm, Gain 25dB, With OSC, Mid-access Gain 8dB | 25dB | 20dBm | -29dBm | -5dBm | 6dB |
| LA20/G25NS-8 | Midstage access In-Line-Amp, Max.Output 20dBm, Gain 25dB, Without OSC, Mid-access Gain 8dB | 25dB | 20dBm | -29dBm | -5dBm | 6dB |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
