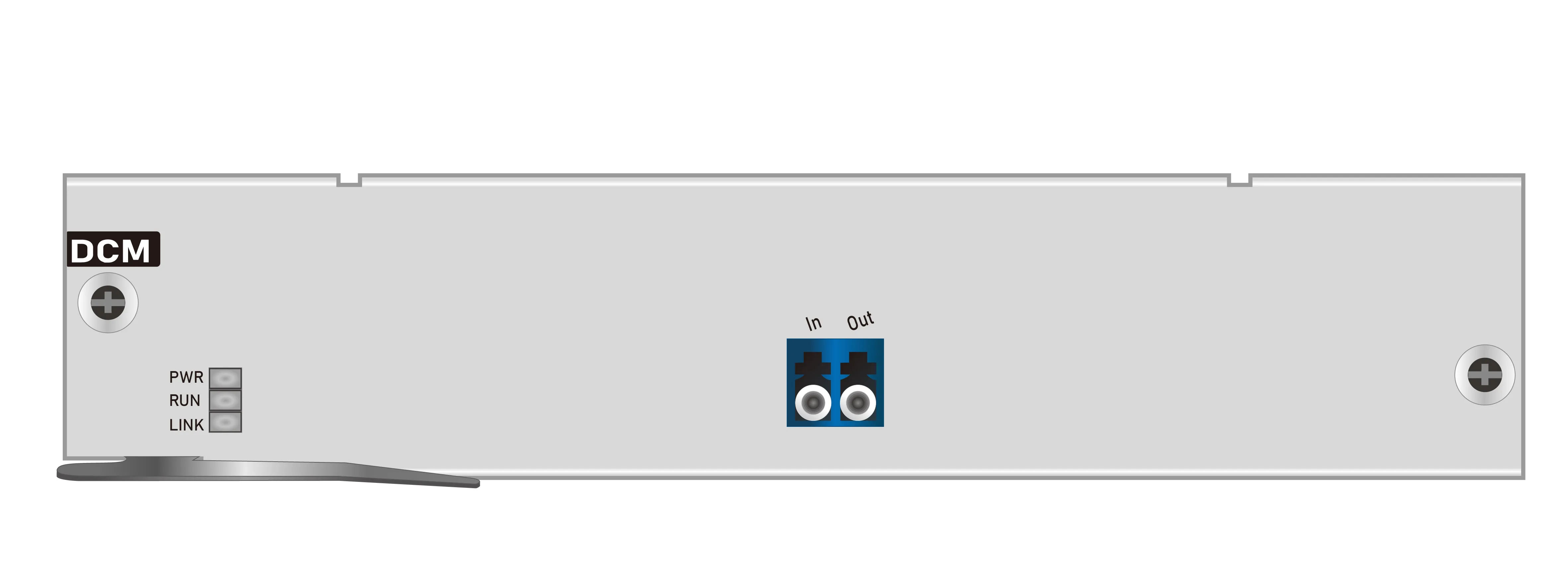

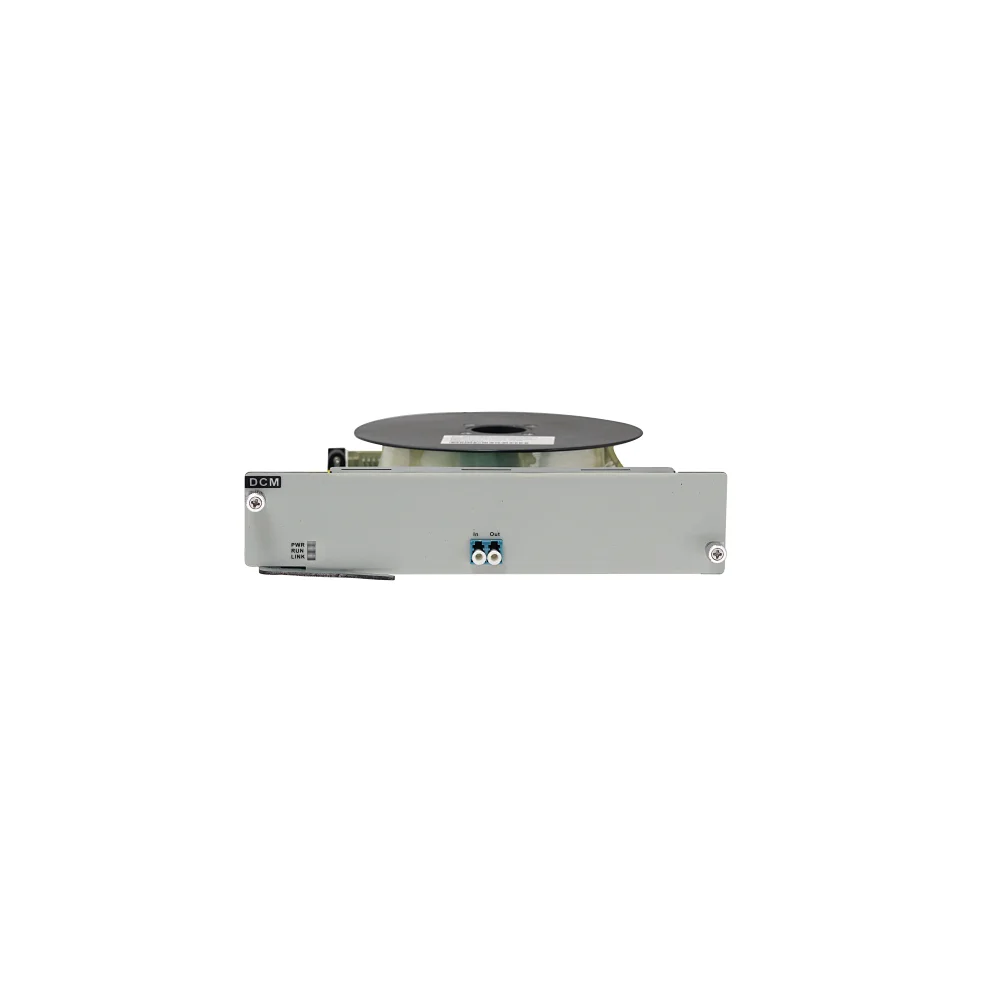

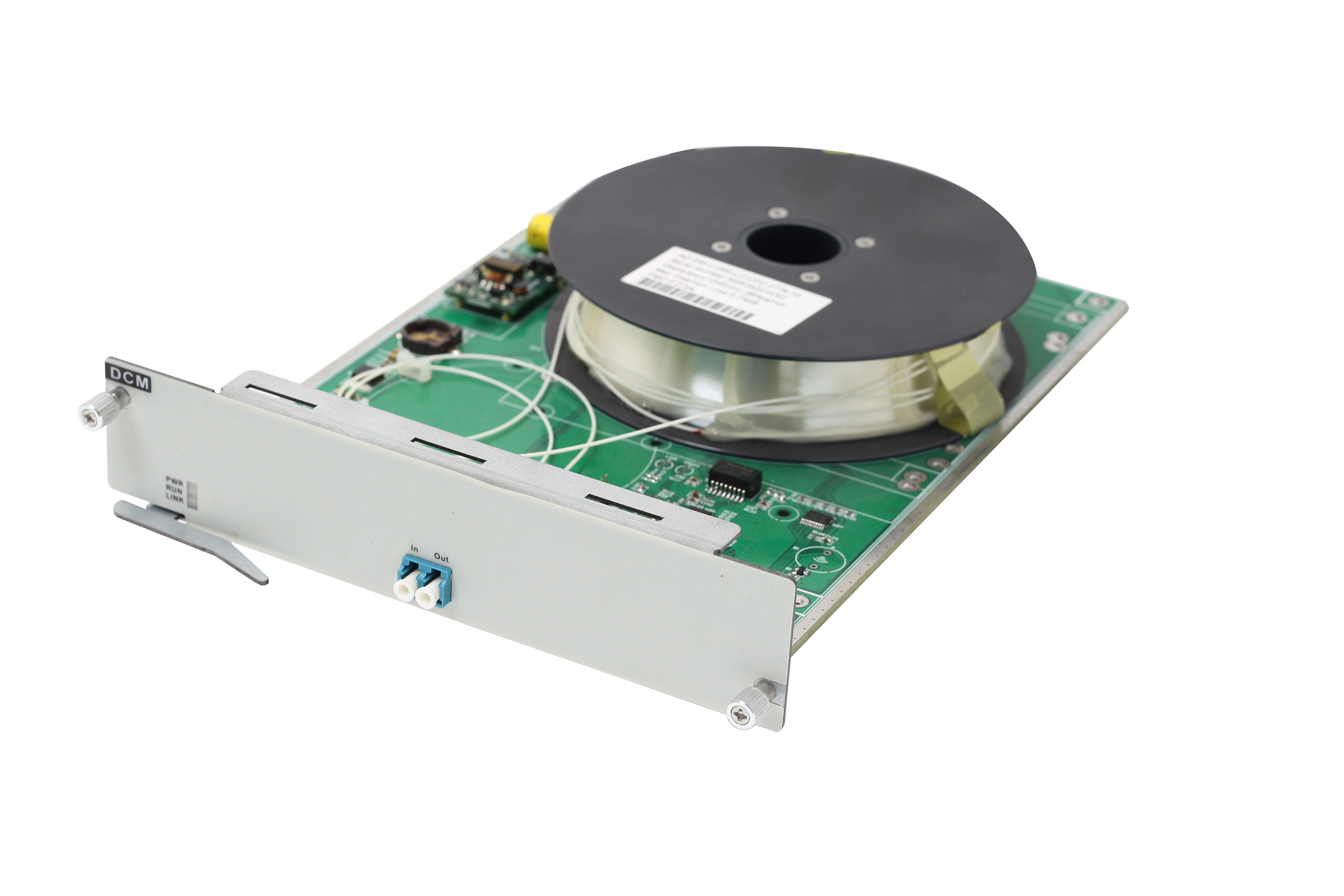

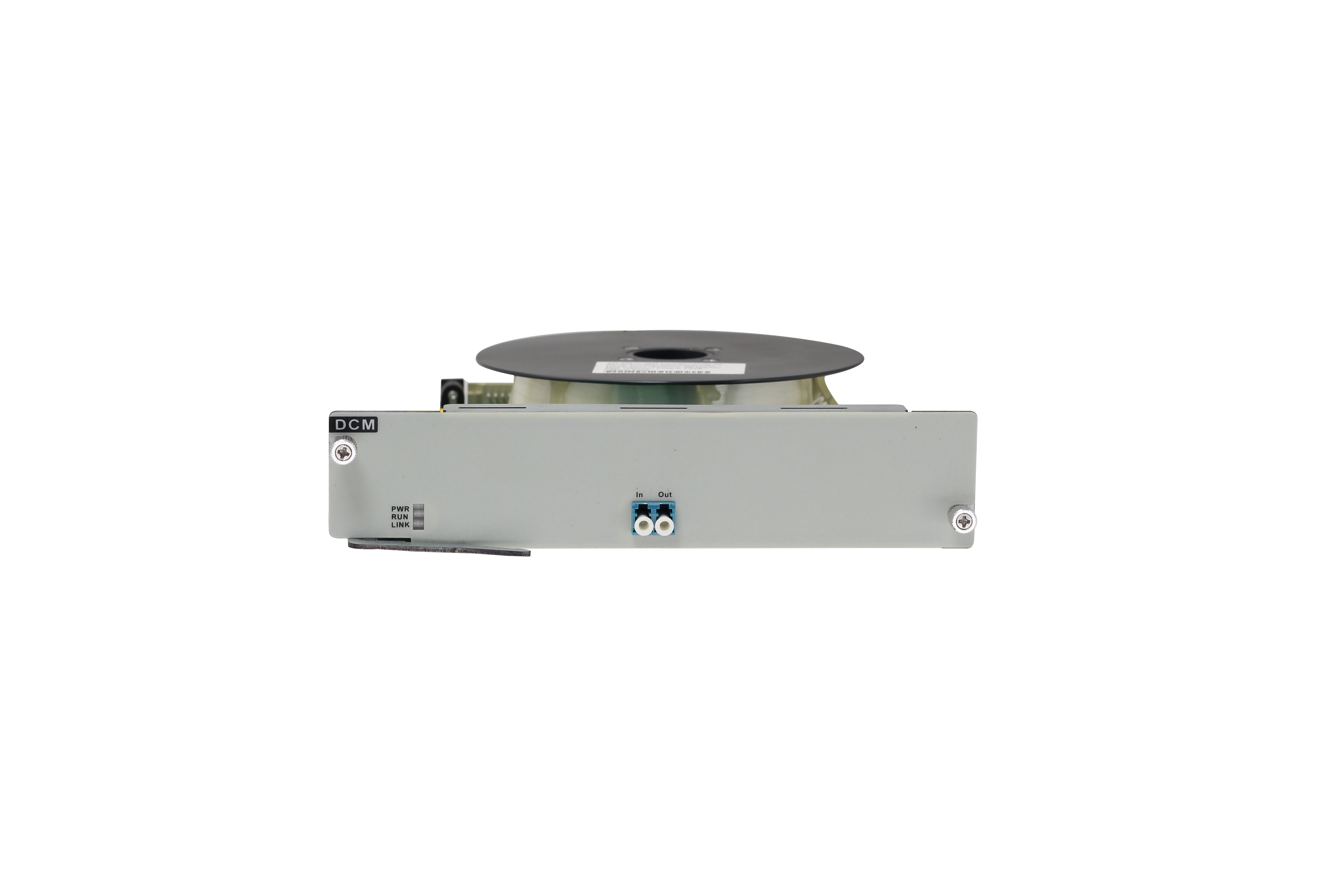

Dispersion Compensation Module
DCM
1
The DCMs offer a high dispersion compensation level and a very low insertion loss penalty. They provide negative dispersion compensation over the full C-Band with possible distance extensions of up to 80 kilometers.
Quantity
Dispersion Compensation Module (DCM)
The Dispersion Compensation Modules are building blocks of the DWDM Optical Transport System and serve at optical communication nodes to correct the pulse spread phenomenon known as Chromatic Dispersion that reduces the maximal transmission distance of data in optical fibers.
Optical compensation function with slope dispersion compensation for standard single-mode fiber can DCM (G.652) were dispersion and dispersion slope compensation broad band in the C-band, allowing the system to optimize residual dispersion.
In the dispersion compensation value of 1545nm wavelength dispersion can reach -2070ps /nm.
The DCMs offer a high dispersion compensation level and a very low insertion loss penalty. They provide negative dispersion compensation over the full C-Band with possible distance extensions of up to 80 kilometers.
Performance Parameter
Application Example
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
The Dispersion Compensation Modules are building blocks of the DWDM Optical Transport System and serve at optical communication nodes to correct the pulse spread phenomenon known as Chromatic Dispersion that reduces the maximal transmission distance of data in optical fibers.
|
|
| |
| |
| |
| |
| |
| |
|
Optical compensation function with slope dispersion compensation for standard single-mode fiber can DCM (G.652) were dispersion and dispersion slope compensation broad band in the C-band, allowing the system to optimize residual dispersion.
In the dispersion compensation value of 1545nm wavelength dispersion can reach -2070ps /nm.
The DCMs offer a high dispersion compensation level and a very low insertion loss penalty. They provide negative dispersion compensation over the full C-Band with possible distance extensions of up to 80 kilometers.
Performance Parameter
| Parameter | Min. | Max. | |
| Brillouin Scattering Threshold(dBm) | 6 | - | |
| Non-linear Coefficient (n2/Aeff) (W-1) | - | 1.4*10-9 | |
| Effective Area(Aeff)@1550nm (um2) | 20 | - | |
| Maximum Input Power(dBm) | 23 | ||
| Compensated Distance (km) | 20/40/60/80 ( Card type, Occupy two slots ) | ||
| 20/40/60/80/100/120KM( >80km, Please choose 1U rack mounted type ) | |||
| Dimension (mm) | 191(W)x 253(D)x42(H) | ||
Environment | Operating Temperature (℃) | -10℃～+60 | |
| Storage Temperature (℃) | -40℃～+85 | ||
| RelativeHumidity | 5%~95% Non-condensing | ||
Application Example
Ordering Information
| Parameter | DCM-20 | DCM-40 | DCM-60 | DCM-80 | DCM-100 | DCM-120 |
| Compensated Distance (km) | 20 | 40 | 60 | 80 | 100 | 120 |
| 1545nm Dispersion (ps/nm) | -340+/-10 | -670+/-20 | -1000+/-30 | -1340+/-40 | -1680+/-50 | -2010+/-60 |
| 1545nm Relative Dispersion Slope (nm-1) | 0.0036 +/- 10% | |||||
| Insertion Loss (dB) | ≤3.3 | ≤4.7 | ≤6.4 | ≤8.0 | ≤9.5 | ≤11.0 |
| Insertion Loss (typ) (dB) | 2.7 | 4.0 | 5.4 | 6.7 | 8.0 | 9.3 |
| Polarization Mode Dispersion (ps) | ≤0.6 | ≤0.7 | ≤0.8 | ≤0.9 | ≤1.0 | ≤1.1 |
| Polarization Mode Dispersion (typ) (ps) | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 |
| Polarization Dependent Loss (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supplysupport AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
