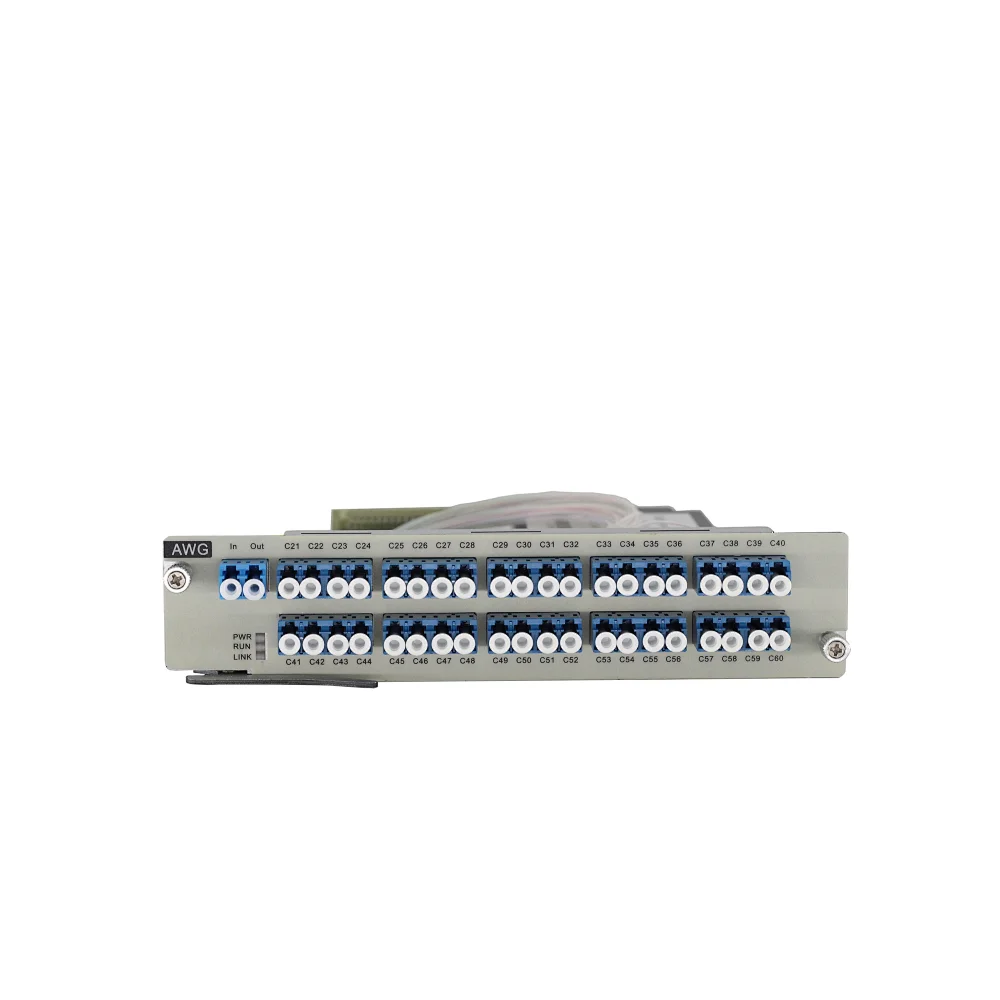

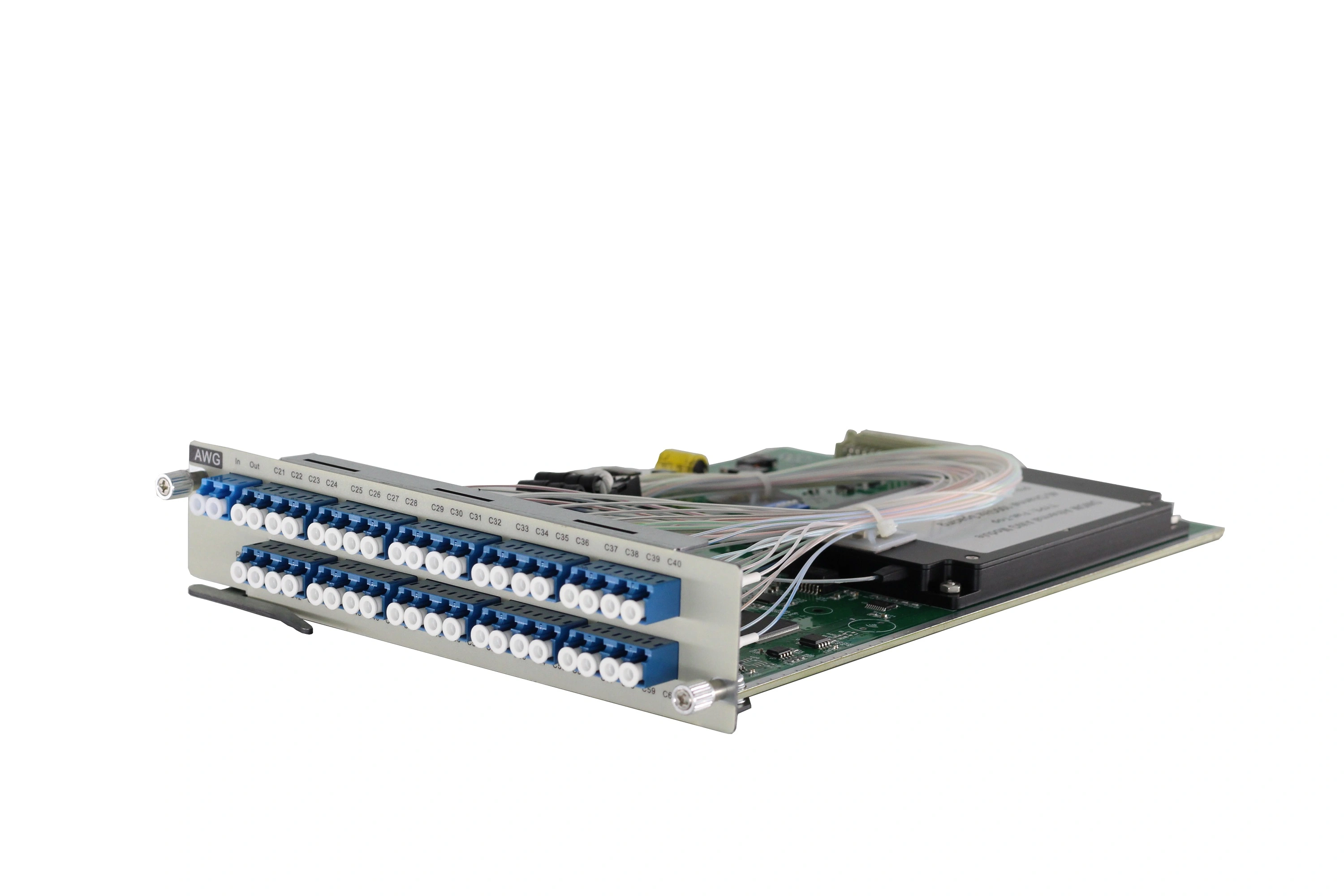

40ch DWDM MUX/DEMUX
AAWG40
1
The AAWG40 is a combined passive Forty-Channel 100GHz DWDM multiplexer and de-multiplexer (MUX & DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying two service slots.
Quantity
40ch DWDM MUX/DEMUX(AAWG)

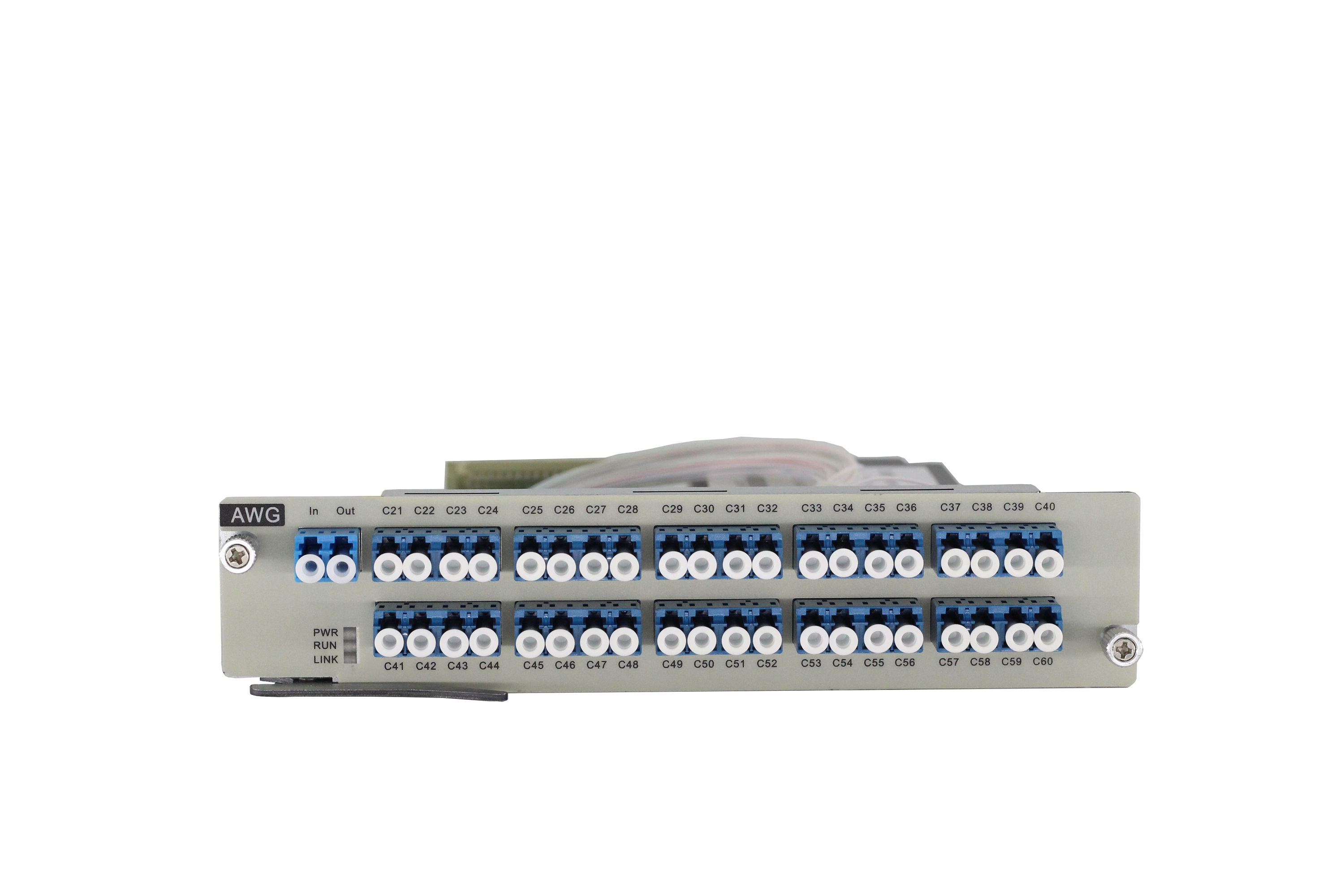

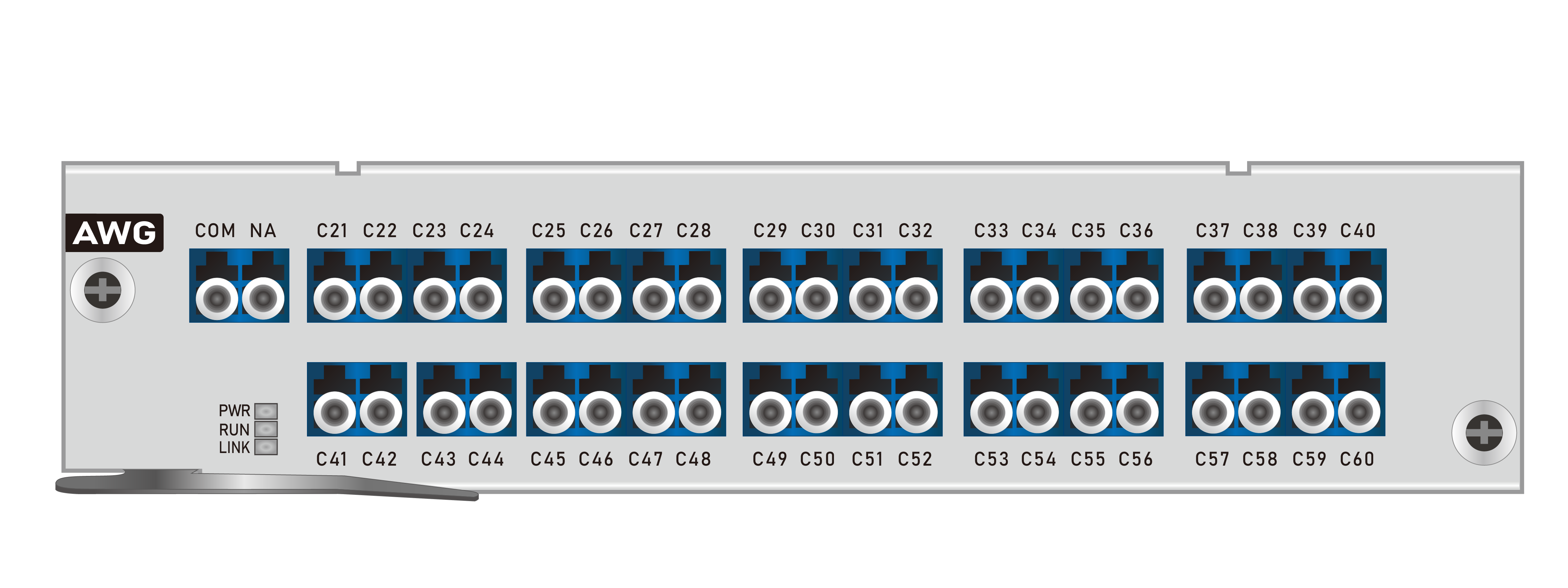

The AAWG40 is a combined passive Forty-Channel 100GHz DWDM multiplexer and de-multiplexer (MUX & DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying two service slots.

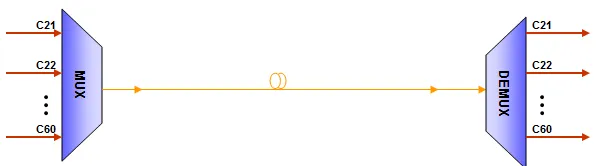

The AAWG40 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
The AAWG enables separation of the active equipment from wavelength multiplexing components. It may be used in conjunction with another DWDM-compliant manufacturers.


Performance Parameter
Channels List:Pass bands for 40 channel AAWG

DWDM Series Chassis






DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
The AAWG40 is a combined passive Forty-Channel 100GHz DWDM multiplexer and de-multiplexer (MUX & DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying two service slots.



|
|
|
|
| |
| |
| |
Non-adjacent isolation ≥35dB | |
|
The AAWG40 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
The AAWG enables separation of the active equipment from wavelength multiplexing components. It may be used in conjunction with another DWDM-compliant manufacturers.


Performance Parameter
Parameter | Note | Specification | Unit | |
Min. | Max. | |||
Channels | 40 | Ch | ||
Channel Spacing | 100 | GHz | ||
Reference Pass-band | Relative to ITU Grid | ± 0.1 | nm | |
ITU Frequency | On ITU grid in C-band | 196.0 | 192.1 | THz |
ITU Wavelength | On ITU grid in C-band | 1530.33 | 1561.42 | nm |
CenterFrequency Accuracy | Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels | -0.05 | +0.05 | nm |
Insertion Loss | Maximum of the insertion loss across the ITU pass-band over all channels | 6.0 | dB | |
InsertionLoss Uniformity | Maximum insertion loss variance across all channels | 1.0 | dB | |
Ripple | Maximum of the loss variance across the ITU pass-band over all channels | 0.75 | dB | |
1dB Bandwidth | 1dB from min Insertion Loss, full width, average polarization | 0.36 | nm | |
3dB Bandwidth | 3 dB from min Insertion Loss, full width, average polarization | 0.51 | nm | |
Adjacent Channel Isolation | Ratio of peak transmission to the maximum transmission over both adjacent pass-bands | 25 | dB | |
Non-Adjacent Channel Isolation | Ratio of peak transmission in channel pass-bands to maximum transmission over all non-adjacent pass-bands | 35 | dB | |
Total Crosstalk | Ratio of power in channel to power in all other pass-bands | 21 | dB | |
Polarization Dependent Loss | Maximum ratio of transmissions over all polarization states, over the ITU pass-band | 0.5 | dB | |
Return Loss | 45 | dB | ||
Polarization Mode Delay (PMD) | In Reference Passband over all channels | 0.5 | ps | |
Chromatic Dispersion | In Reference Passband over all channels | -20 | 20 | ps/nm |
Size | AAWG40Module | 191 (W) x 253 (D) x41 (H) | mm | |
Environment | Operating Temperature | -10℃~+60 | ℃ | |
Storage Temperature | -40℃~+85 | ℃ | ||
RelativeHumidity | 5%~95% Non-condensing |
Channels List:Pass bands for 40 channel AAWG
Channel | On ITU Grid in C-Band | Channel | On ITU Grid in C-Band | ||
Frequency(THz) | Wavelength(nm) | Frequency(THz) | Wavelength(nm) | ||
C21 | 192.1 | 1560.61 | C41 | 194.1 | 1544.53 |
C22 | 192.2 | 1559.79 | C42 | 194.2 | 1543.73 |
C23 | 192.3 | 1558.98 | C43 | 194.3 | 1542.94 |
C24 | 192.4 | 1558.17 | C44 | 194.4 | 1542.14 |
C25 | 192.5 | 1557.36 | C45 | 194.5 | 1541.35 |
C26 | 192.6 | 1556.55 | C46 | 194.6 | 1540.56 |
C27 | 192.7 | 1555.75 | C47 | 194.7 | 1539.77 |
C28 | 192.8 | 1554.94 | C48 | 194.8 | 1538.98 |
C29 | 192.9 | 1554.13 | C49 | 194.9 | 1538.19 |
C30 | 193.0 | 1553.33 | C50 | 195.0 | 1537.40 |
C31 | 193.1 | 1552.52 | C51 | 195.1 | 1536.61 |
C32 | 193.2 | 1551.72 | C52 | 195.2 | 1535.82 |
C33 | 193.3 | 1550.92 | C53 | 195.3 | 1535.04 |
C34 | 193.4 | 1550.12 | C54 | 195.4 | 1534.25 |
C35 | 193.5 | 1549.32 | C55 | 195.5 | 1533.47 |
C36 | 193.6 | 1548.51 | C56 | 195.6 | 1532.68 |
C37 | 193.7 | 1547.72 | C57 | 195.7 | 1531.90 |
C38 | 193.8 | 1546.92 | C58 | 195.8 | 1531.12 |
C39 | 193.9 | 1546.12 | C59 | 195.9 | 1530.33 |
C40 | 194.0 | 1545.32 | C60 | 196.0 | 1529.56 |

DWDM Series Chassis






DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis Optional | |||
CH04Chassis:482.5(W)x350(D) x44.5(H)mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
CH08Chassis:482.5(W)x350(D) x89(H)mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
CH20Chassis:482.5(W)x350(D) x222.5(H)mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
Support SNMP, Web, CLI multiple network management modes | |||
Support dual power supply redundancy protection, Power supplysupport AC: 220V / DC: -48V optional |
DWDM Series Chassis support multiple service intermixing:
4x100G to 400GMuxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
