40G/100G Transponder
OEOTQ2Q
1

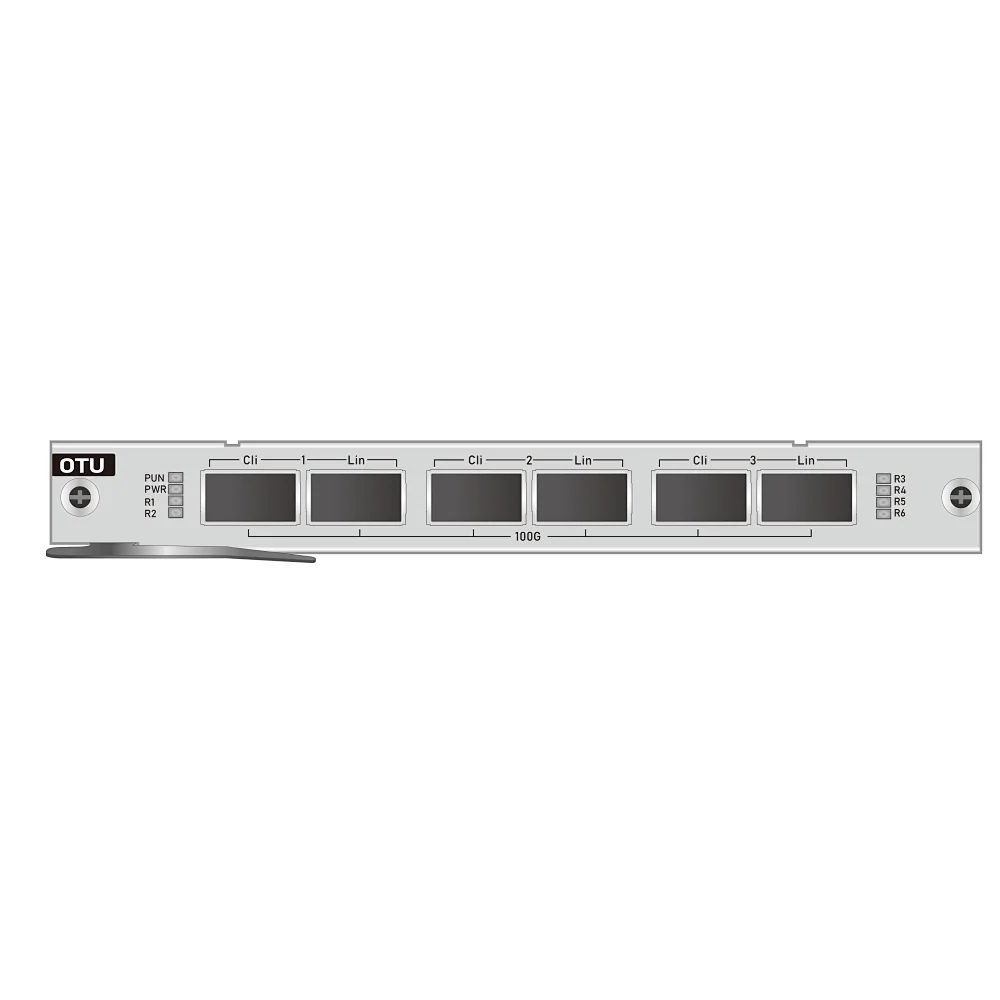

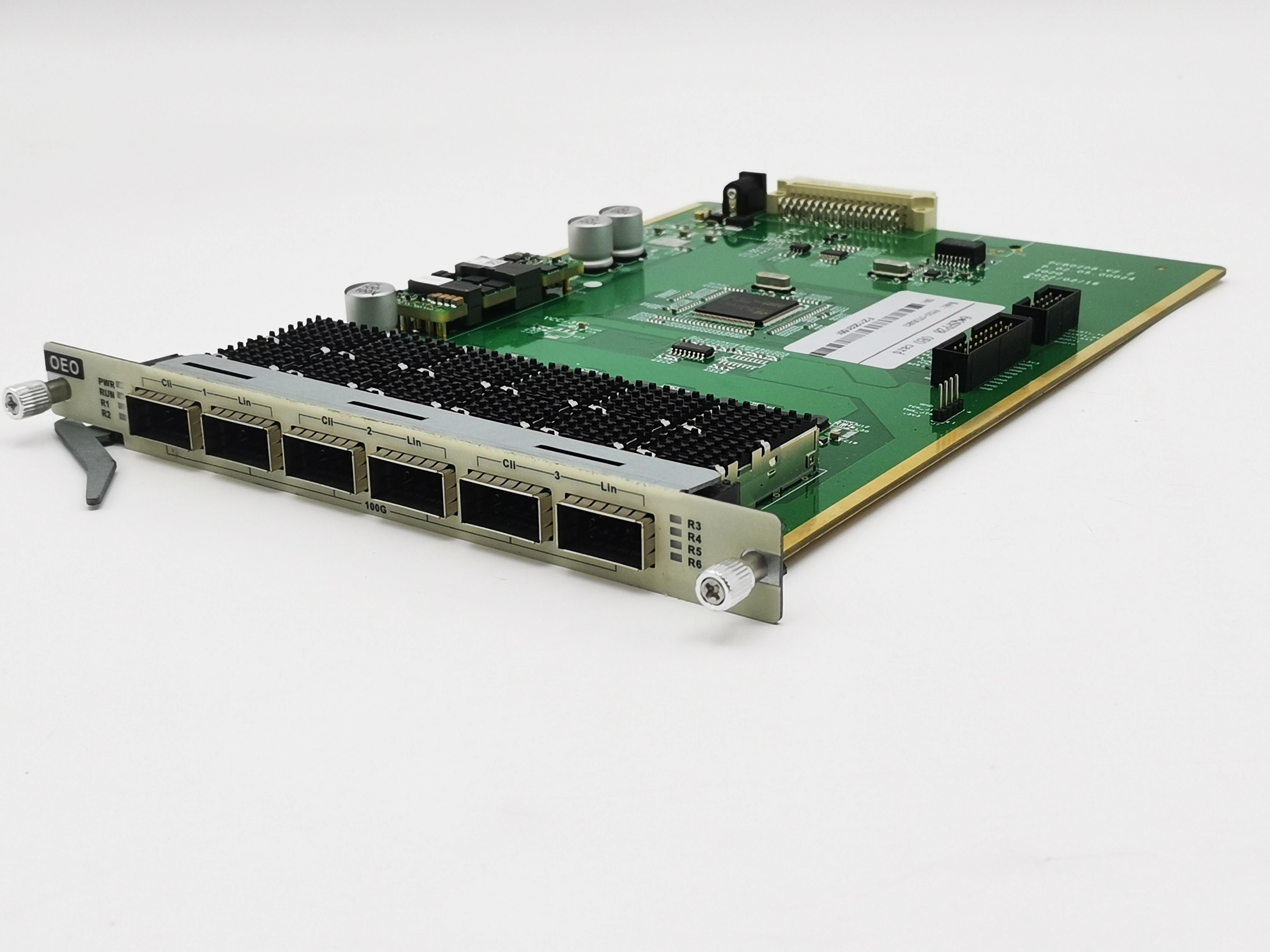

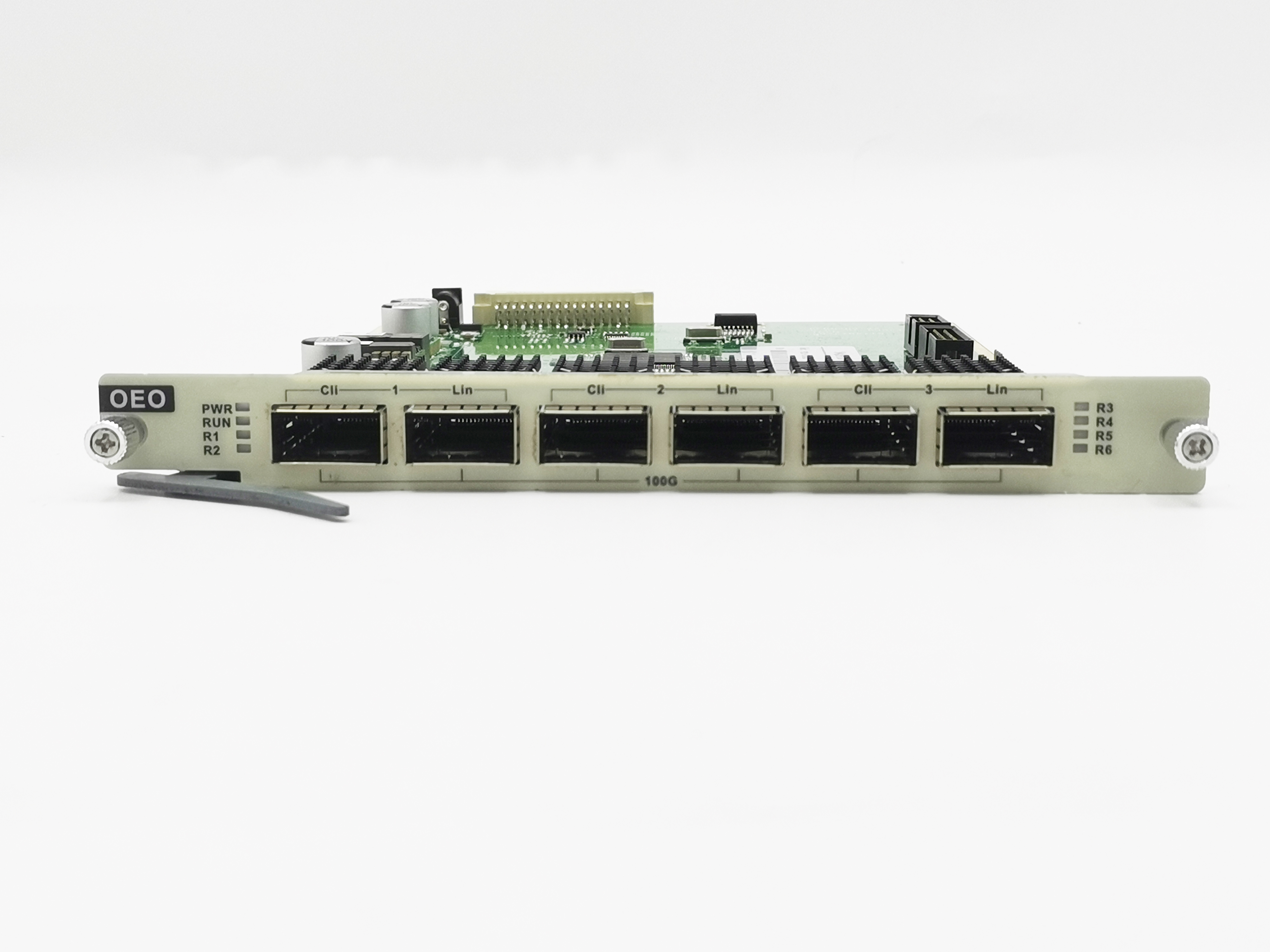

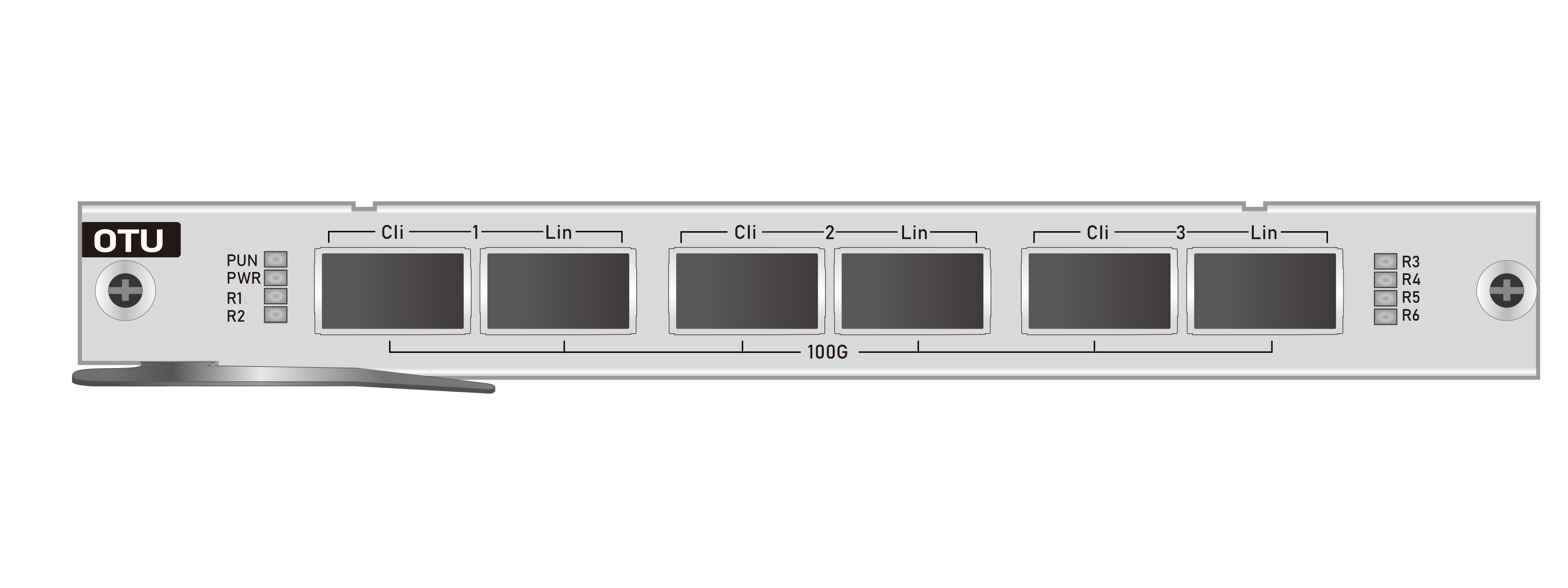

40G/100G Transponder supports three 40G or 100G service access. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
Quantity
40G/100G Transponder
40G/100G Transponder supports three 40G or 100G service access. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
40G&100G Transponder supports three 40G or 100G service signals are relayed and amplified, and can be converted into three WDM standard wavelength optical signals, so that the multiplex unit can perform wavelength division multiplexing demultiplexing on optical signals of different wavelengths. A metropolitan wavelength division short-range transmission scheme suitable for 40G or 100G rates.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
40G/100G Transponder supports three 40G or 100G service access. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion.
|
|
| |
| |
| |
| |
|
40G&100G Transponder supports three 40G or 100G service signals are relayed and amplified, and can be converted into three WDM standard wavelength optical signals, so that the multiplex unit can perform wavelength division multiplexing demultiplexing on optical signals of different wavelengths. A metropolitan wavelength division short-range transmission scheme suitable for 40G or 100G rates.
Performance Parameter
| System Parameter | Technical Indicator | |
| Center Wavelength | 850nm, DWDM 1270~1610nm | |
| Data Rate (Gbps) | 100Gbps/40G | |
| 100G interface | Client Side | 100G QSFP28 /40G QSFP+ |
| Line Side | 100G QSFP28 /40G QSFP+ | |
| Service Model | Support 100G/40G OEO relay, amplification and regeneration, wavelength conversion | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191 (W) x 253 (D) x 20 (H) mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Power Consumption | ≤30W | |
Ordering Information
| Model | Function | Protocols | Client Side | Line Side |
| OEOTQ2Q | 40G/100G Multi-Rate transponder, Converter/Repeater 6QSFP28 interfaces. | 40G/100G | 3 x QSFP28 Or 3 x QSFP+ | 3x QSFP28 Or 3 x QSFP+ |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
