16ch DWDM MUX/DEMUX
OD/OM16
1

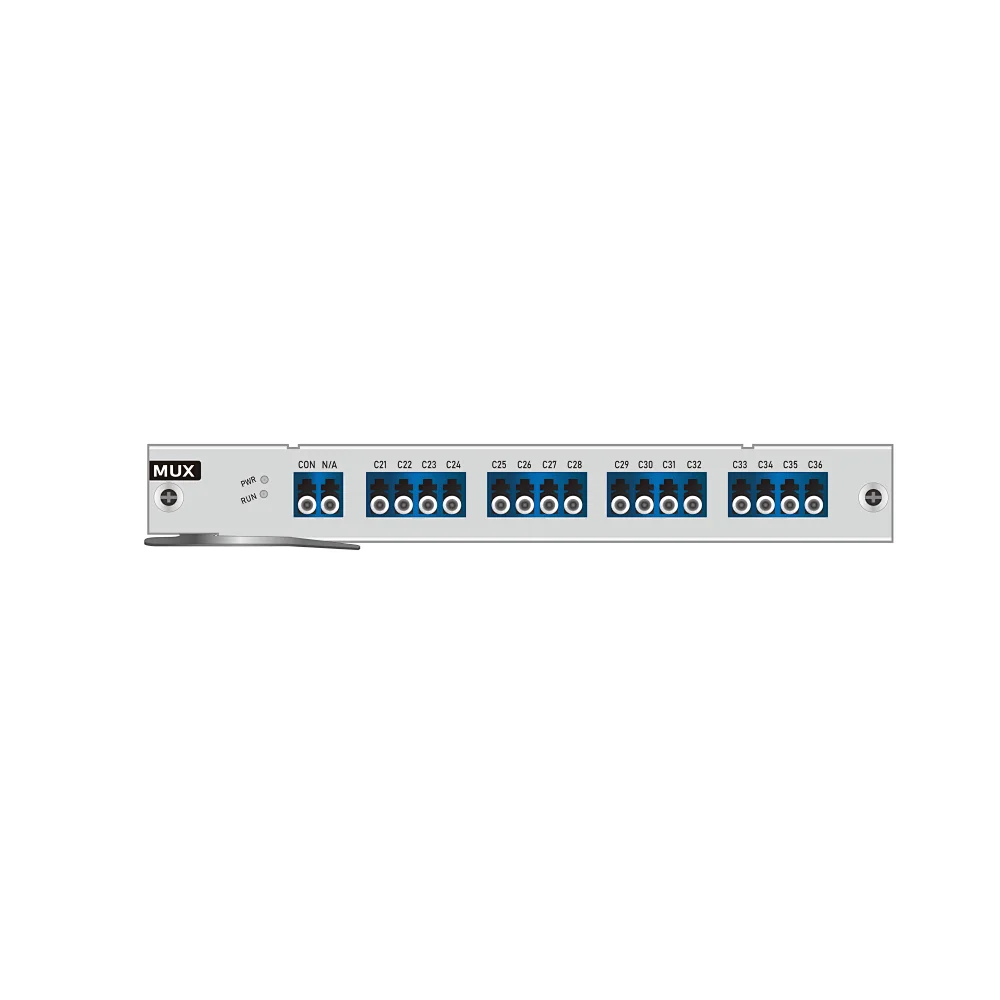

OD/OM16 is a combined passive Sixteen-Channel 100GHz DWDM multiplexer or de-multiplexer (MUX or DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying one service slots.
Quantity
16ch DWDM MUX/DEMUX
OD/OM16 is a combined passive Sixteen-Channel 100GHz DWDM multiplexer or de-multiplexer (MUX or DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying one service slots.
The Mux/Demux is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
The Mux/Demux enables separation of the active equipment from wavelength multiplexing components. It may be used in conjunction with another DWDM-compliant manufacturers.
Performance Parameter
Channels List:Pass bands for 40 channel MUX/DEMUX
DWDM MUX/DEMUX
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:

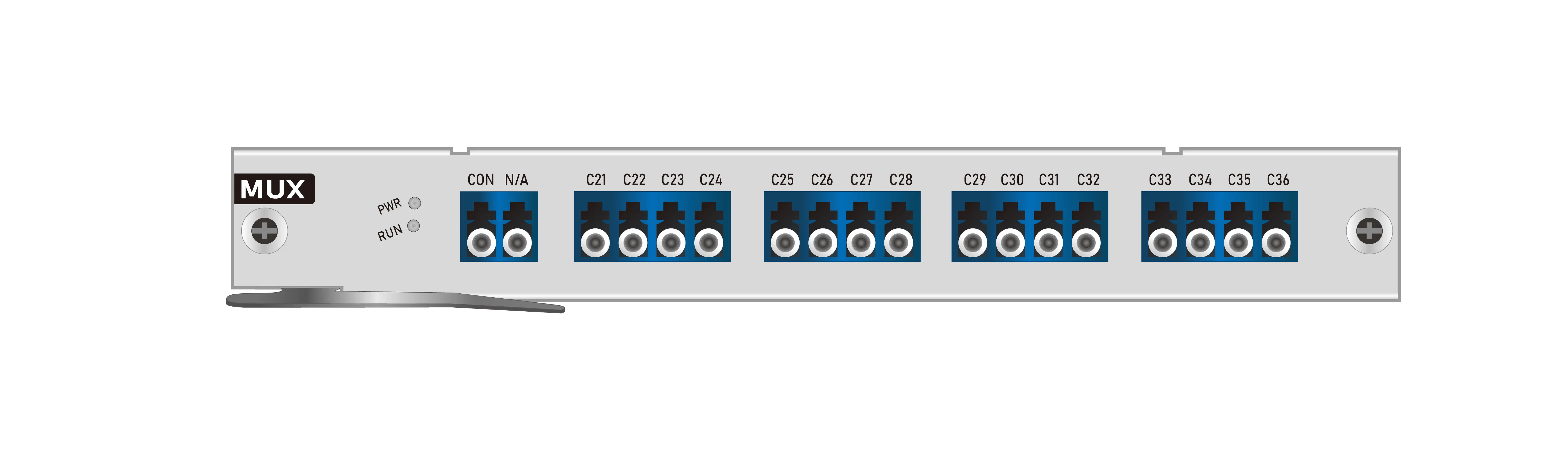

OD/OM16 is a combined passive Sixteen-Channel 100GHz DWDM multiplexer or de-multiplexer (MUX or DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis, 2U chassis and 5U chassis, occupying one service slots.
|
|
|
|
| |
8 CH maximum insertion loss ≤3dB 16CH maximum insertion loss ≤4.5dB | |
Good characteristics, few affected by temperature | |
Non-adjacent isolation ≥40dB |
The Mux/Demux is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
The Mux/Demux enables separation of the active equipment from wavelength multiplexing components. It may be used in conjunction with another DWDM-compliant manufacturers.
Performance Parameter
| Parameter | Specification | Unit | |||
| Channel Wavelength | ITU Grid | nm | |||
| Channel Spacing | 100GHz | Ghz | |||
| Channel | 4 | 8 | 16 | ||
| Channel Passband | >0.3 | nm | |||
| Insertion Loss Flatness | <0.5 | dB | |||
| Insertion Loss | <1.8 | <3.0 | <4.5 | ||
| ChannelIsolation | Adjacent | 25 | dB | ||
| Non-adjacent | 40 | dB | |||
| Polarization Dependent Loss | <0.1 | dB | |||
| Directivity | >50 | dB | |||
| Return Loss | >45 | dBm | |||
| Maximum Power Handling | 26 | mw | |||
| Dimension | 191(W ) x253(D ) x 20(H) | mm | |||
| Environment | Operating Temperature | -10℃～+60℃ | ℃ | ||
| Storage Temperature | -40℃～+85℃ | ℃ | |||
| RelativeHumidity | 5%~95% Non-condensing | ||||
Channels List:Pass bands for 40 channel MUX/DEMUX
| Channel | On ITU Grid in C-Band | Channel | On ITU Grid in C-Band | ||
| Frequency(THz) | Wavelength(nm) | Frequency(THz) | Wavelength(nm) | ||
| C21 | 192.1 | 1560.61 | C41 | 194.1 | 1544.53 |
| C22 | 192.2 | 1559.79 | C42 | 194.2 | 1543.73 |
| C23 | 192.3 | 1558.98 | C43 | 194.3 | 1542.94 |
| C24 | 192.4 | 1558.17 | C44 | 194.4 | 1542.14 |
| C25 | 192.5 | 1557.36 | C45 | 194.5 | 1541.35 |
| C26 | 192.6 | 1556.55 | C46 | 194.6 | 1540.56 |
| C27 | 192.7 | 1555.75 | C47 | 194.7 | 1539.77 |
| C28 | 192.8 | 1554.94 | C48 | 194.8 | 1538.98 |
| C29 | 192.9 | 1554.13 | C49 | 194.9 | 1538.19 |
| C30 | 193.0 | 1553.33 | C50 | 195.0 | 1537.40 |
| C31 | 193.1 | 1552.52 | C51 | 195.1 | 1536.61 |
| C32 | 193.2 | 1551.72 | C52 | 195.2 | 1535.82 |
| C33 | 193.3 | 1550.92 | C53 | 195.3 | 1535.04 |
| C34 | 193.4 | 1550.12 | C54 | 195.4 | 1534.25 |
| C35 | 193.5 | 1549.32 | C55 | 195.5 | 1533.47 |
| C36 | 193.6 | 1548.51 | C56 | 195.6 | 1532.68 |
| C37 | 193.7 | 1547.72 | C57 | 195.7 | 1531.90 |
| C38 | 193.8 | 1546.92 | C58 | 195.8 | 1531.12 |
| C39 | 193.9 | 1546.12 | C59 | 195.9 | 1530.33 |
| C40 | 194.0 | 1545.32 | C60 | 196.0 | 1529.56 |
DWDM MUX/DEMUX
| Model | Channel | ILoss（dB） | Isolation(dB) | Wavelength (nm) | ||
| MU/DMU | MU+DMU | Adjacent | Non-adjacent | |||
| OM16 | 16ch MUX | ≤3.5 | ≤4.5 | 25 | 40 | 100GHZITU Grid C-Band |
| OD16 | 16ch DEMUX | ≤3.5 | ≤4.5 | 25 | 40 | 100GHZITU Grid C-Band |
| ODM08 | 8ch MUX and DEMUX | ≤3 | ≤3.5 | 25 | 40 | 100GHZITU Grid C-Band |
| OM08 | 8ch MUX | ≤3 | ≤3.5 | 25 | 40 | 100GHZITU Grid C-Band |
| OD08 | 8ch DEMUX | ≤3 | ≤3.5 | 25 | 40 | 100GHZITU Grid C-Band |
| ODM04 | 4ch MUX and DEMUX | ≤1.8 | ≤2.5 | 25 | 40 | 100GHZITU Grid C-Band |
| OM04 | 4ch MUX | ≤1.8 | ≤2.5 | 25 | 40 | 100GHZITU Grid C-Band |
| OD04 | 4ch DEMUX | ≤1.8 | ≤2.5 | 25 | 40 | 100GHZITU Grid C-Band |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04Chassis:482.5(W)x350(D) x44.5(H)mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08Chassis:482.5(W)x350(D) x89(H)mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20Chassis:482.5(W)x350(D) x222.5(H)mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supplysupport AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400GMuxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
