Optical Add/Drop Multiplexer
OADM
DWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effectively WDM capability to their existing and new networks, and extend the optical signals transmission distance.
Quantity

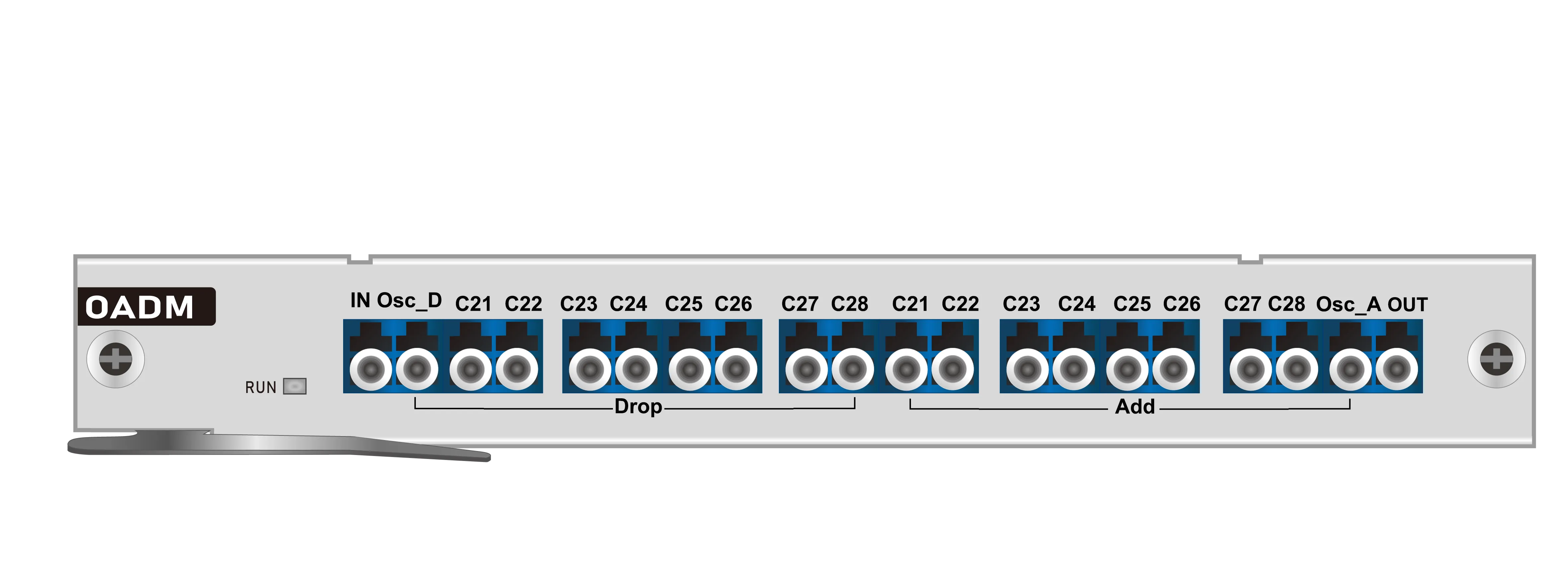

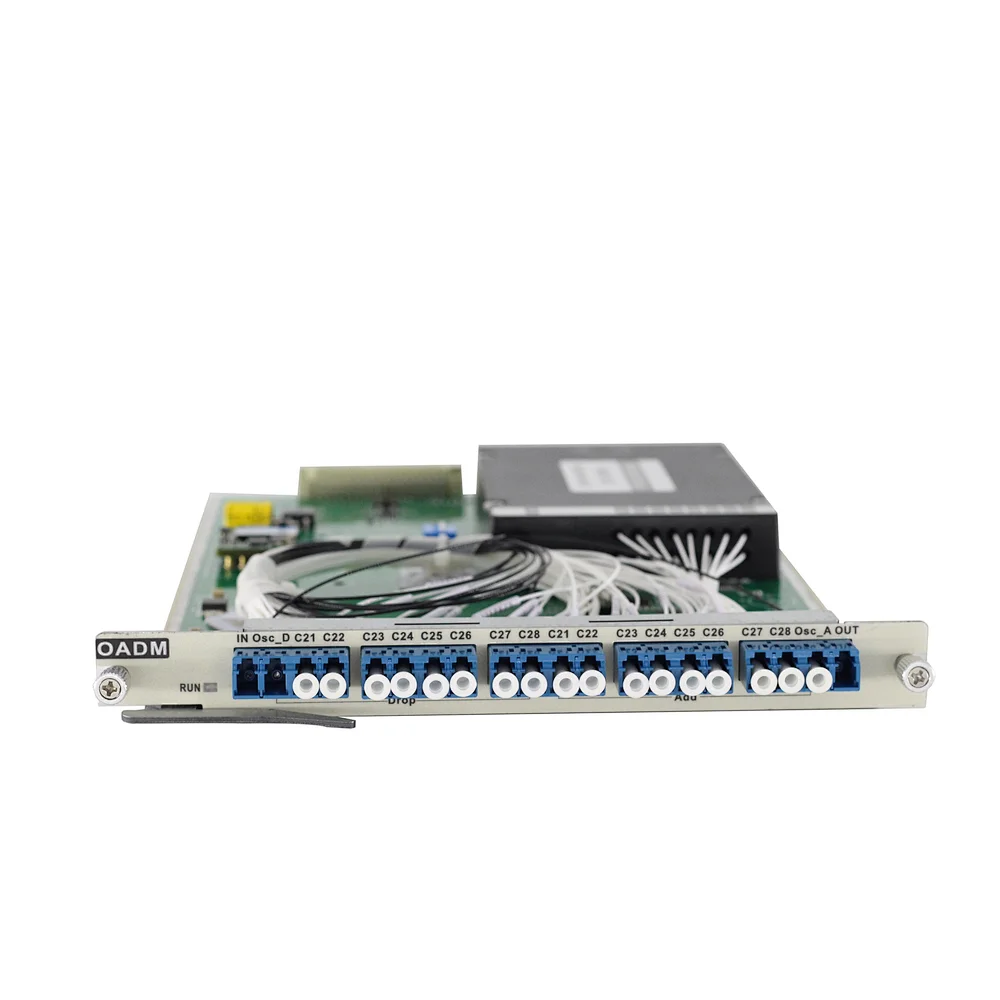

DWDM Passive Optical Add/Drop Multiplexer

DWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effectively WDM capability to their existing and new networks, and extend the optical signals transmission distance.
WDM networks
DWDM OADM              optical signals transmission
  • DWDM Passive Optical Add/Drop Multiplexers
  • Support 2/4/8 channel add and drop
  • Achieve 2/4/8 channel add and drop
  • Plug and play: requires no configuration
  • Green product: completely passive, needs no power and no cooling
  • Low insertion loss:
                 2CH maximum insertion loss ≤1.5dB
                 4 CH maximum insertion loss ≤3dB
                 8CH maximum insertion loss ≤4.5dB
  • High channel isolation:
                Adjacent isolation ≥25dB
                Non-adjacent isolation ≥35dB


DWDM OADM modules are available in single-side (East or West) and dual-side (East and West) configurations. With matching MUX/DEMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop 2, 4, 8 data channels at any point along the trunk.
DWDM OADM
optical signals transmission

Performance Parameter
ParameterSpecificationUnit
Channel WavelengthITU Gridnm
Channel Spacing100GHzGhz
Channel248
Channel Pass Band0.3nm
Insertion Loss Flatness0.5dB
Insertion LossIn—Drop/Add-Out0.91.53(dB)
In---out1.53.04.5(dB)
Channel IsolationAdjacent25dB
Non-adjacent35dB
Polarization Dependent Loss<0.1dB
Directivity>50dB
Return Loss>45dBm
Maximum Power Handling26mw
SizeOADM Module191(W)x 253(D)x20(H)mm



Channels List:
ChannelOn ITU Grid in C-BandChannelOn ITU Grid in C-Band
Frequency(THz)Wavelength(nm)Frequency(THz)Wavelength(nm)
C21192.11560.61C41194.11544.53
C22192.21559.79C42194.21543.73
C23192.31558.98C43194.31542.94
C24192.41558.17C44194.41542.14
C25192.51557.36C45194.51541.35
C26192.61556.55C46194.61540.56
C27192.71555.75C47194.71539.77
C28192.81554.94C48194.81538.98
C29192.91554.13C49194.91538.19
C30193.01553.33C50195.01537.40
C31193.11552.52C51195.11536.61
C32193.21551.72C52195.21535.82
C33193.31550.92C53195.31535.04
C34193.41550.12C54195.41534.25
C35193.51549.32C55195.51533.47
C36193.61548.51C56195.61532.68
C37193.71547.72C57195.71531.90
C38193.81546.92C58195.81531.12
C39193.91546.12C59195.91530.33
C40194.01545.32C60196.01529.56











Ordering Information
DWDM Single Fiber SINGLE-Side OADM

ModelDescriptionLogicaldiagramInsertion Loss (dB)Wavelength
Add/DropIn-out@other
OADMS022CH add Module Single Fiber, Single side East2CH.
It can achieve single side (East)bi-directional 1CH data add and drop.
1.51.5100GHz
C-band
OADMS202CH drop Module Single Fiber, Single side West2CH.
It can achieve single side (West)bi-directional 1CH data add and drop.
1.51.5100GHz
C-band
OADMS044CH add Module Single Fiber, Single side East4CH.
It can achieve single side (East)bi-directional 2CH data add and drop.
1.81.8100GHz
C-band
OADMS404CH drop Module Single Fiber, Single side West4CH.
It can achieve single side  (West)bi-directional 2CH data add and drop.
1.81.8100GHz
C-band
OADMS088CH add Module Single Fiber, Single side East8CH.
It can achieve single side (East )bi-directional 4CH data add and drop.
≤2.4≤2.4100GHz
C-band
OADMS808CH drop Module Single Fiber, Single side West8CH.
It can achieve single side
(West) bi-directional 4CH data add and drop.
≤2.4≤2.4100GHz
C-band


DWDM Single Fiber DUAL-Side OADM
ModelDescriptionLogical DiagramInsertionLoss (dB)Wavelength
Add/DropIn-out@other
OADMS222CH add and 2CH drop module Single Fiber Dual side, East 2CH and West 2CH.
It can achieve East 1CH and West 1CH bi-directional data add and drop .
1.51.7100GHz
C-Band
OADMS444CH add and 4CH dropmodule Single Fiber Dual side,East4CH and West 4CH.
It can achieve East2CHand West2CHbi-directional data add and drop.
1.8≤2.0100GHz
C-Band

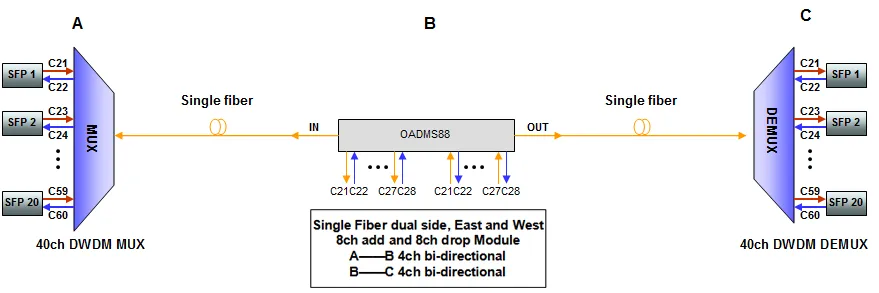

OADMS888CH add and 8CH dropmodule Single Fiber Dual side,East8ch and West 8ch.
It can achieve East4CHand West4CHbi-directional data add and drop.
≤2.4≤3.0100GHz
C-Band


DWDMDualFiberSINGLE-SideOADM
ModelDescriptionLogicalDiagramInsertionLoss (dB)Wavelength
Add/DropIn-out@other
OADMD011CH addModuledualFiber, single side (East)1CH.
It can achieve single side (East)bi-directional 1CH data add and drop.
1.21.2100GHz
C-Band
OADMD101chDrop Module dual Fiber, single side (West)1ch.
It can achieve single side (West)bi-directional 1CH data add and drop.
1.21.2100GHz
C-Band
OADMD022CH addModuledualFiber, single side(East)2CH.
It can achieve single sided(East)bi-directional 2CH data add and drop.
1.51.5100GHz
C-Band
OADMD202CHDrop Module dualFiber,singleWest2CH.
It can achieve single side (West)bi-directional 2CH data add and drop.
1.51.5100GHz
C-Band
OADMD044CH addModuledualFiber, single side(East)4CH.
It can achieve single side (East)bi-directional 4CH data add and drop.
1.81.8100GHz
C-Band
OADMD404CH dropModuledualFibersingle side(West)4CH.
It can achieve single side (West)bi-directional 4CH data add and drop.
1.81.8100GHz
C-Band
OADMD088CH addModuledualFiber, single side (East) 8CH.
It can achieve single sided(East)bi-directional 8CH data add and drop.
≤2.4≤2.4100GHz
C-Band
OADMD808CHDrop Module dualFiber,single side(West)8CH.
It can achieve single side (West)bi-directional 8CH data add and drop.
≤2.4≤2.4100GHz
C-Band



DWDMDualFiberDUAL-sideOADM
ModelDescriptionLogical DiagramInsertionLoss (dB)Wavelength
Add/DropIn-out@other
OADMD111CHadd and 1CH drop Module dualFiber
Dual side,East1CH and West 1CH.
It can achieve East1CHand West1CHbi-directional data add and drop.
1.21.3100GHz
C-Band
OADMD222CHadd and 2CH drop Module dualFiber
Dual side,East2CH and West 2CH.
It can achieve East2CHand West2CHbi-directional data add and drop.
1.51.8100GHz
C-Band

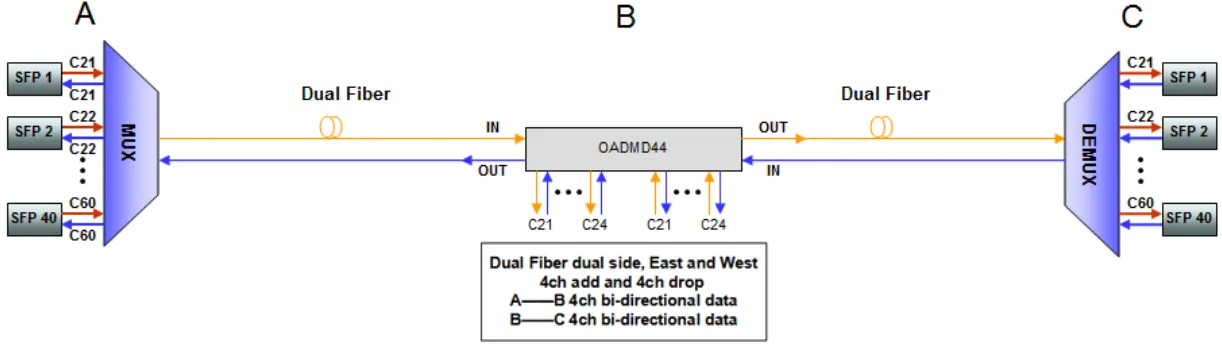

OADMD444CH add and 4CH drop Module dualFiber
Dual side, East4CH and West 4CH.
It can achieve East 4CH and West 4CH bi-directional data add and drop.
1.82.0100GHz
C-Band
OADMD888CH add and 8CH drop Module dualFiber
Dual side,East8CH and West 8CH.
It can achieve East8CHand West8CHbi-directional data add and drop.
2.43100GHz
C-Band





DWDM Series Chassis

OLP systemOptical line automatic switching protectionDWDM transmission network

DWDM transmission networkOptical line automatic switching protectionOLP system



DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis Optional
CH04Chassis:482.5(W)x350(D) x44.5(H)mm1U19-inch chassis1 network management slot3 universal service slots
CH08Chassis:482.5(W)x350(D) x89(H)mm2U19-inch chassis1 network management slot7 universal service slots
CH20Chassis:482.5(W)x350(D) x222.5(H)mm5U19-inch chassis1 network management slot19universal service slots
Power Consumption: 1U <120W,  2U<200W,  5U<400W
Support SNMP, Web, CLI multiple network management modes
Support dual power supply redundancy protection, Power supplysupport AC: 220V / DC: -48V optional



DWDM Series Chassis support multiple service intermixing:
4x100G to 400GMuxponder4x25G to 100G Muxponder100G SOA Optical Amplifier Card
2x100G to 200G Muxponder25G OEOEDFA Card  (Single fiber or dual fiber version)
100G Transponder10G SFP+OEOOLPOpticalLineProtection (Single fiber or dual fiber version)
40G/100G OEODispersion Compensation Module4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card
