4x25G to 100G Muxponder
Q2FS28
1
The 40G&100G Muxponder supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and converts the multiplexed/demultiplexed optical signals into DWDM standard wavelength optical signals. With DWDM MUX/DEMUX, multi-channel 100G or 40G services are transmitted in the DWDM system. 40G&100G Muxponder is the lowest cost solution for 100G metropolitan area network DWDM transmission.
Quantity
4x25G to 100G Transponder
The 40G&100G Muxponder supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and converts the multiplexed/demultiplexed optical signals into DWDM standard wavelength optical signals. With DWDM MUX/DEMUX, multi-channel 100G or 40G services are transmitted in the DWDM system. 40G&100G Muxponder is the lowest cost solution for 100G metropolitan area network DWDM transmission.

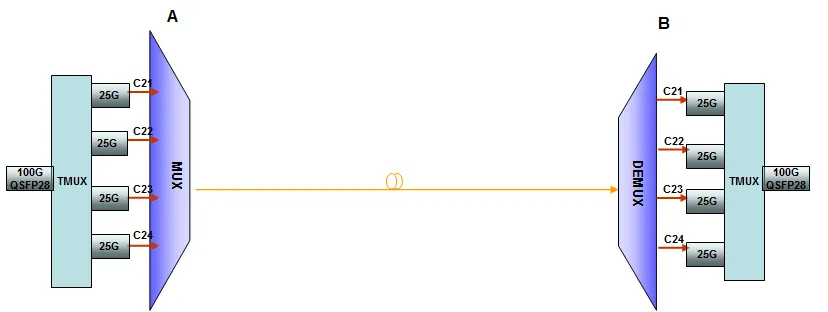

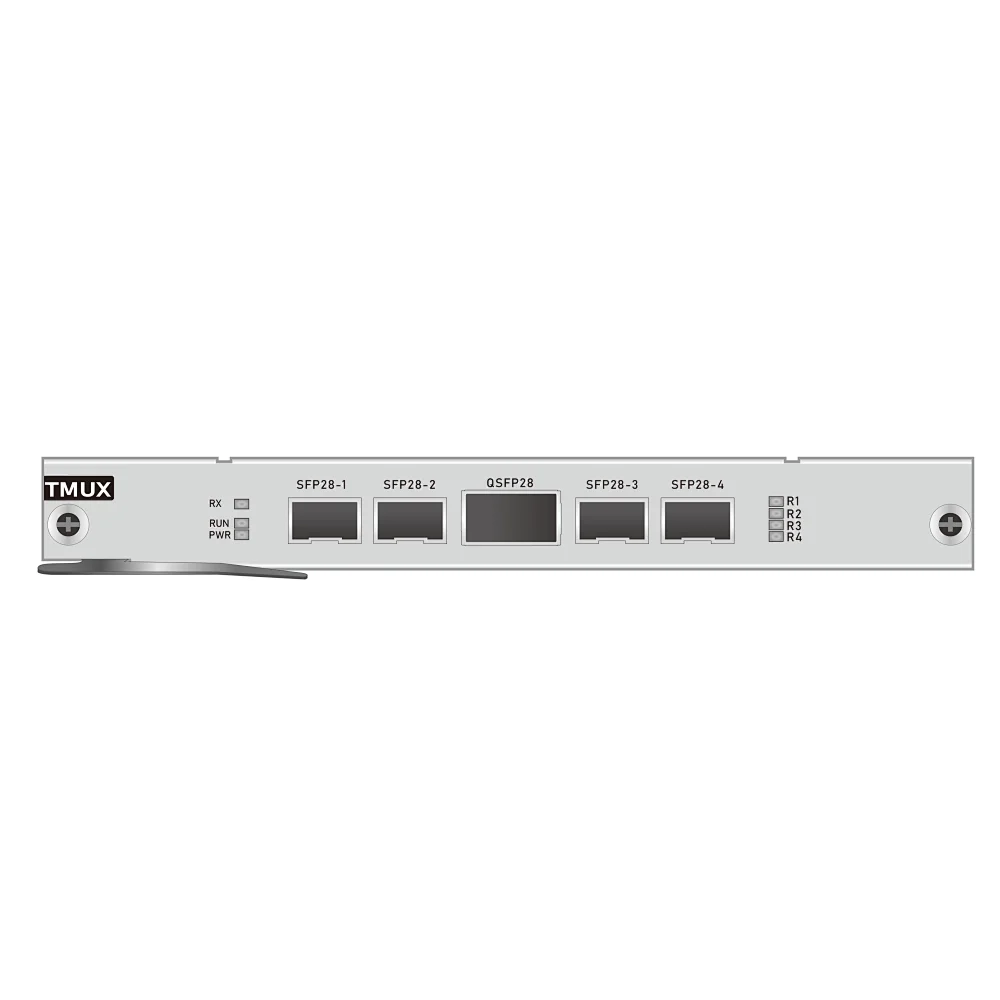

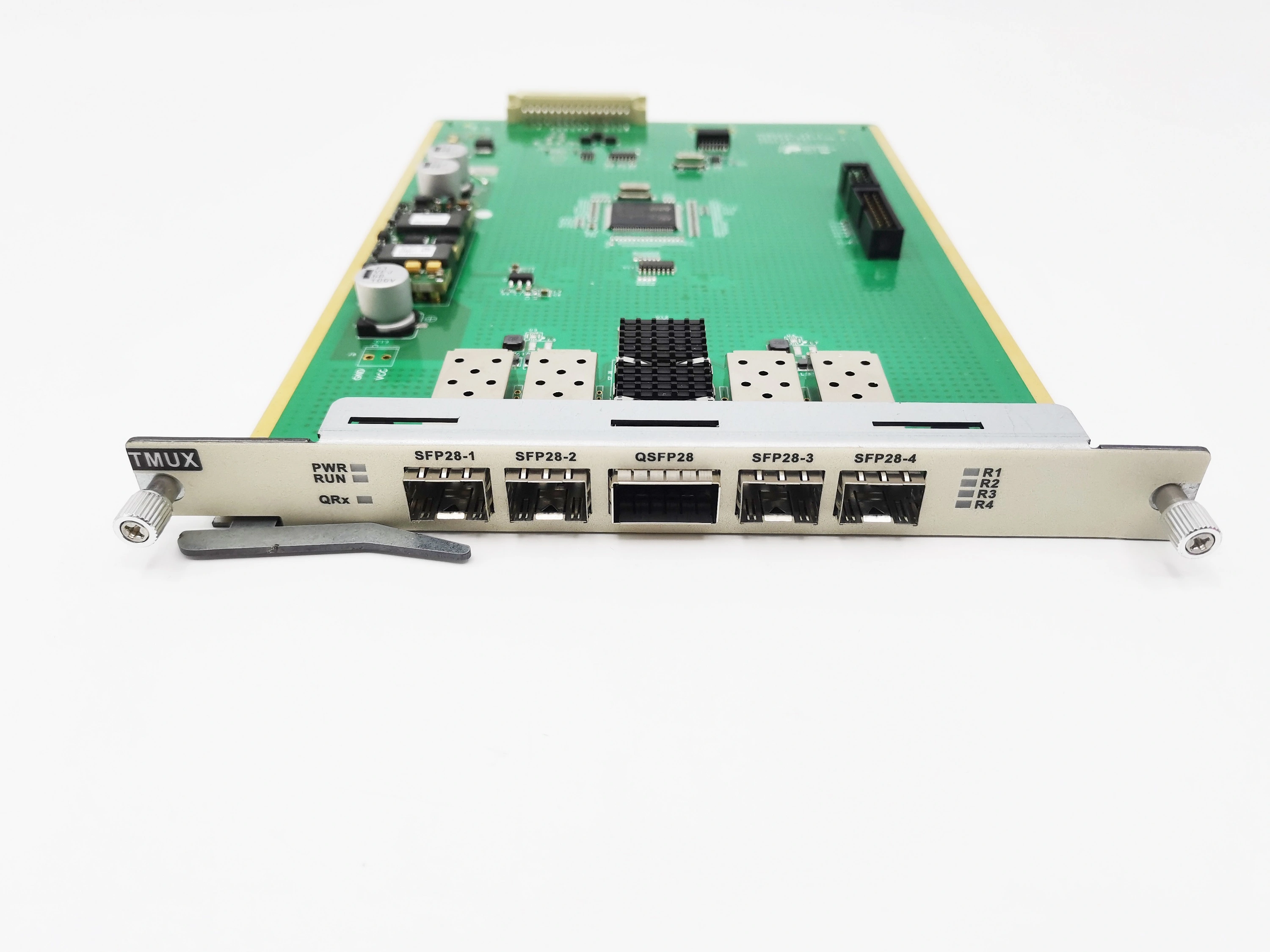

40G&100G Transponder incorporates QSFP28-based access interfaces that can accommodate various types of QSFP28, e.g. multimode single mode. The 4SFP port is 4x 10Gbps /4x25G, permitting flexible connectivity options between the muxponders either in a WDM system. Compared with the 100G coherent solution, the 40G&100G Transponder DWDM solution significantly reduces costs and is the most cost-effective metropolitan area network and big data center expansion solution. The TMUX8 fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
Ordering Information
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
DWDM Series Chassis support multiple service intermixing:
The 40G&100G Muxponder supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and converts the multiplexed/demultiplexed optical signals into DWDM standard wavelength optical signals. With DWDM MUX/DEMUX, multi-channel 100G or 40G services are transmitted in the DWDM system. 40G&100G Muxponder is the lowest cost solution for 100G metropolitan area network DWDM transmission.
|
|
| |
| |
| |
|
40G&100G Transponder incorporates QSFP28-based access interfaces that can accommodate various types of QSFP28, e.g. multimode single mode. The 4SFP port is 4x 10Gbps /4x25G, permitting flexible connectivity options between the muxponders either in a WDM system. Compared with the 100G coherent solution, the 40G&100G Transponder DWDM solution significantly reduces costs and is the most cost-effective metropolitan area network and big data center expansion solution. The TMUX8 fit DWDM Series CH04, CH08, CH20 Chassis.
Performance Parameter
| System Parameter | Technical Indicator | |
| Center Wavelength | DWDM 1529.5~1565.50nm | |
| Data Rate (Gbps) | 100Gbps | |
| 100G Interface | Client Side | 100G QSFP28 module or 40G QSFP+ module |
| Line Side | 4xSFP28 25G module or 4x SFP+ 10G module | |
| NMS | TELNET, SNMP, WEB | |
| Size | 191 ( W ) x 253 ( D ) x 20 ( H ) mm | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤30W | |
Ordering Information
| Model | Function | Protocols | Client | Line |
| Q2FS28 | 40G /100G Dual Multi-Rate muxponder, 1xQSFP28 interfaces to 4xSFP28. | 40G to 4x10G/4x10G to 40G 100G to 4x25G/4x25G to 100G | QSFP28 | 4 x SFP28 |
DWDM Series Chassis
DWDM Series Chassis is the foundation for deploying and managing the multi-service mixed-media solutions.
| DWDM Series Chassis Optional | |||
| CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm | 1U19-inch chassis | 1 network management slot | 3 universal service slots |
| CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm | 2U19-inch chassis | 1 network management slot | 7 universal service slots |
| CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm | 5U19-inch chassis | 1 network management slot | 19universal service slots |
| Power Consumption: 1U <120W, 2U<200W, 5U<400W | |||
| Support SNMP, Web, CLI multiple network management modes | |||
| Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional | |||
DWDM Series Chassis support multiple service intermixing:
| 4x100G to 400G Muxponder | 4x25G to 100G Muxponder | 100G SOA Optical Amplifier Card |
| 2x100G to 200G Muxponder | 25G OEO | EDFA Card (Single fiber or dual fiber version) |
| 100G Transponder | 10G SFP+OEO | OLPOpticalLineProtection (Single fiber or dual fiber version) |
| 40G/100G OEO | Dispersion Compensation Module | 4/8/16/40/48Channel DWDM MUX/DEMUX, or OADM Card |
